Chapter 2 Disassembly Process
2-6
CLM W6_CLM HD6 Jan 31, 2012

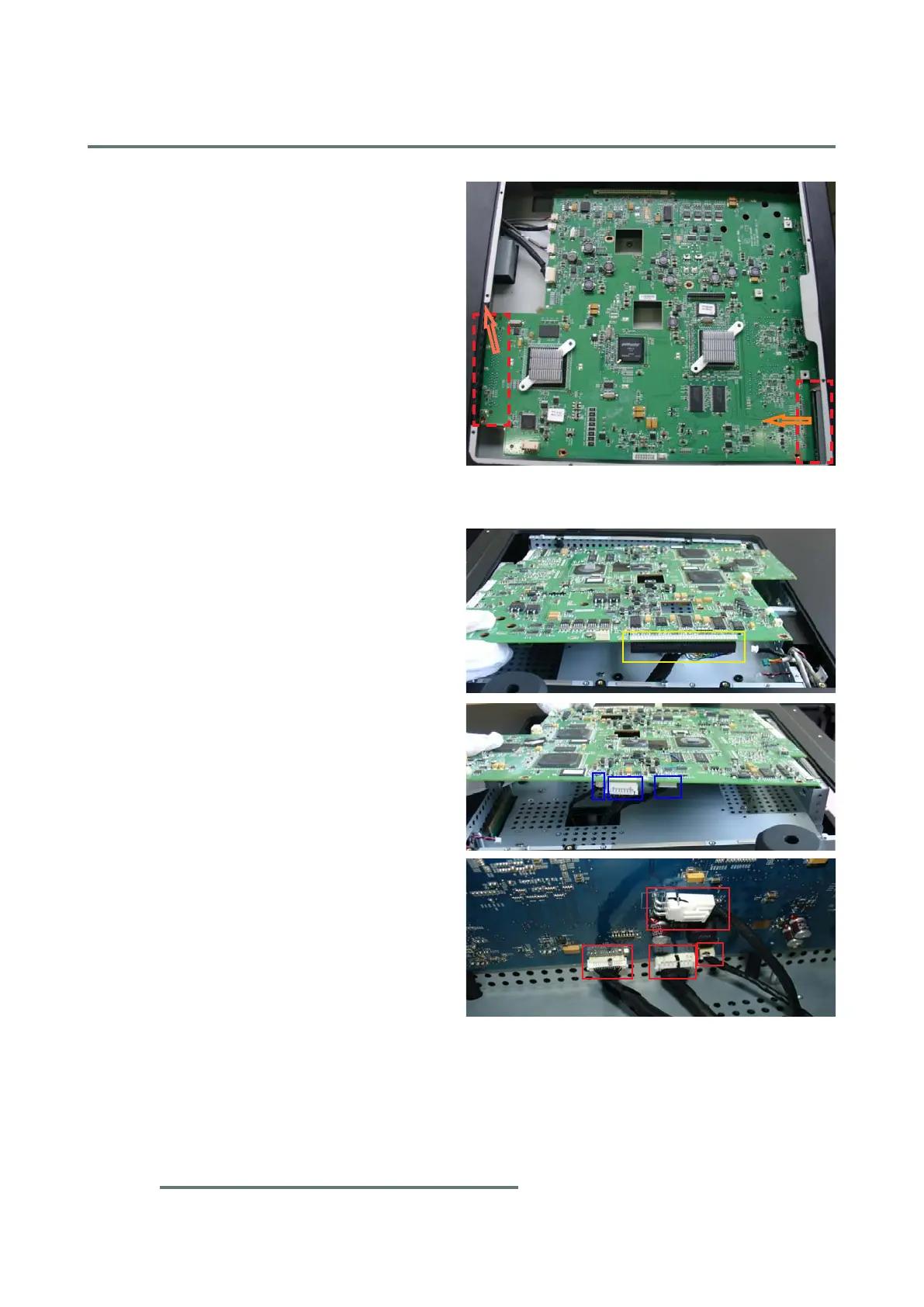

3. Pull up main board vertically.
Repair note: - When pulling up main board,
please note that there are two
connectors in the red dotted line
position.
4. Disassemble main board module.
For CLM HD6:
Unplug 1 connector (yellow square)
and other 3 connectors (blue square)
on the opposite side.
Remove main board.
For CLM W6:
Unplug 1 connector (yellow square) and
other 4 connectors (red square) on the
opposite side.
Remove main board.
CLM W6
CLM HD6
