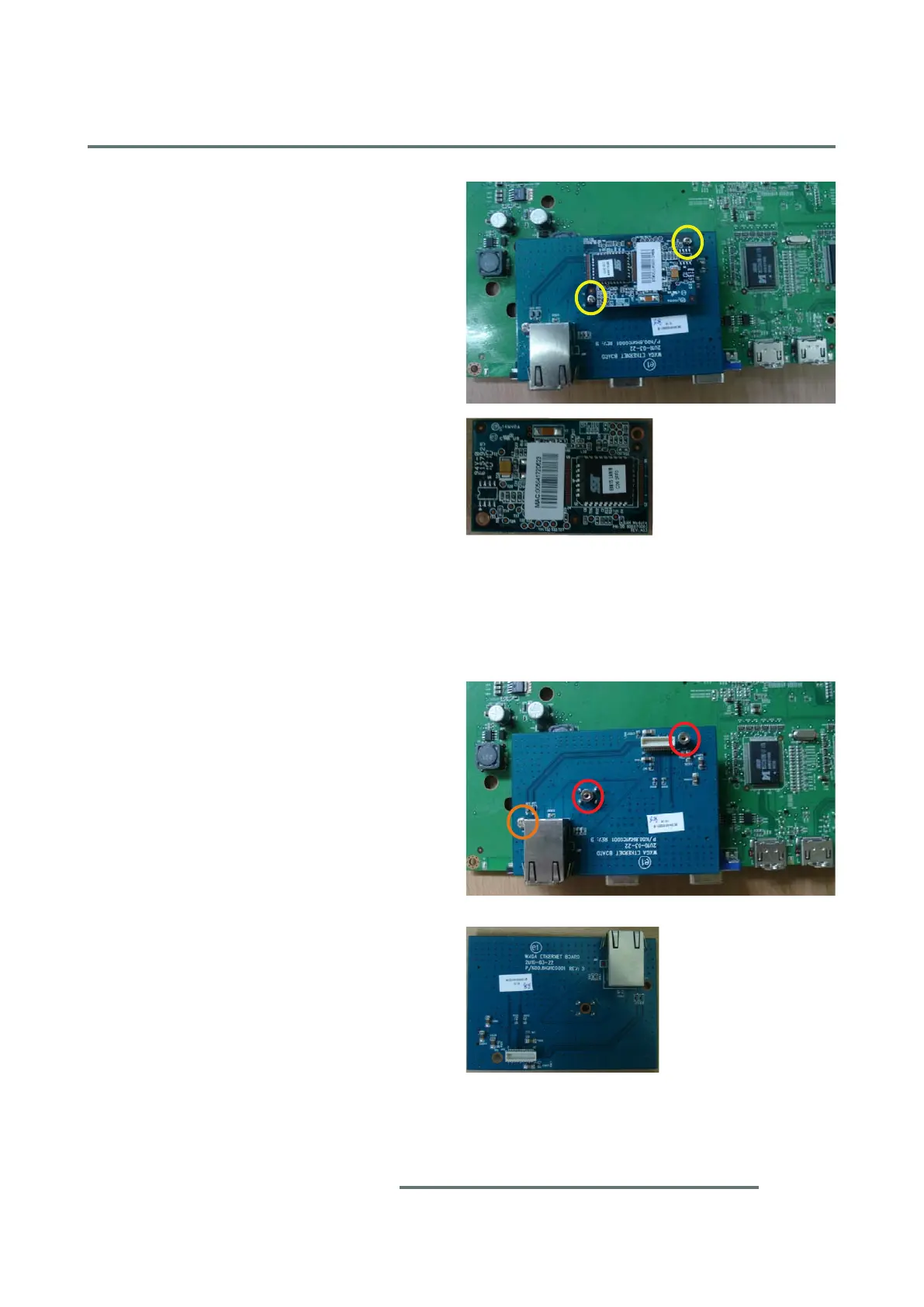

5. Unscrew 2 screws (yellow circle) to
disassemble LAN board.
6. Unscrew 2 hex screws (red circle) and
1 screw (orange circle) to disassemble
Ethernet board.
LAN Board
Ethernet Board
