Barco CLM W6 Service Manual

Chapter 2 Disassembly Process
2-40
CLM W6_CLM HD6 Jan 31, 2012

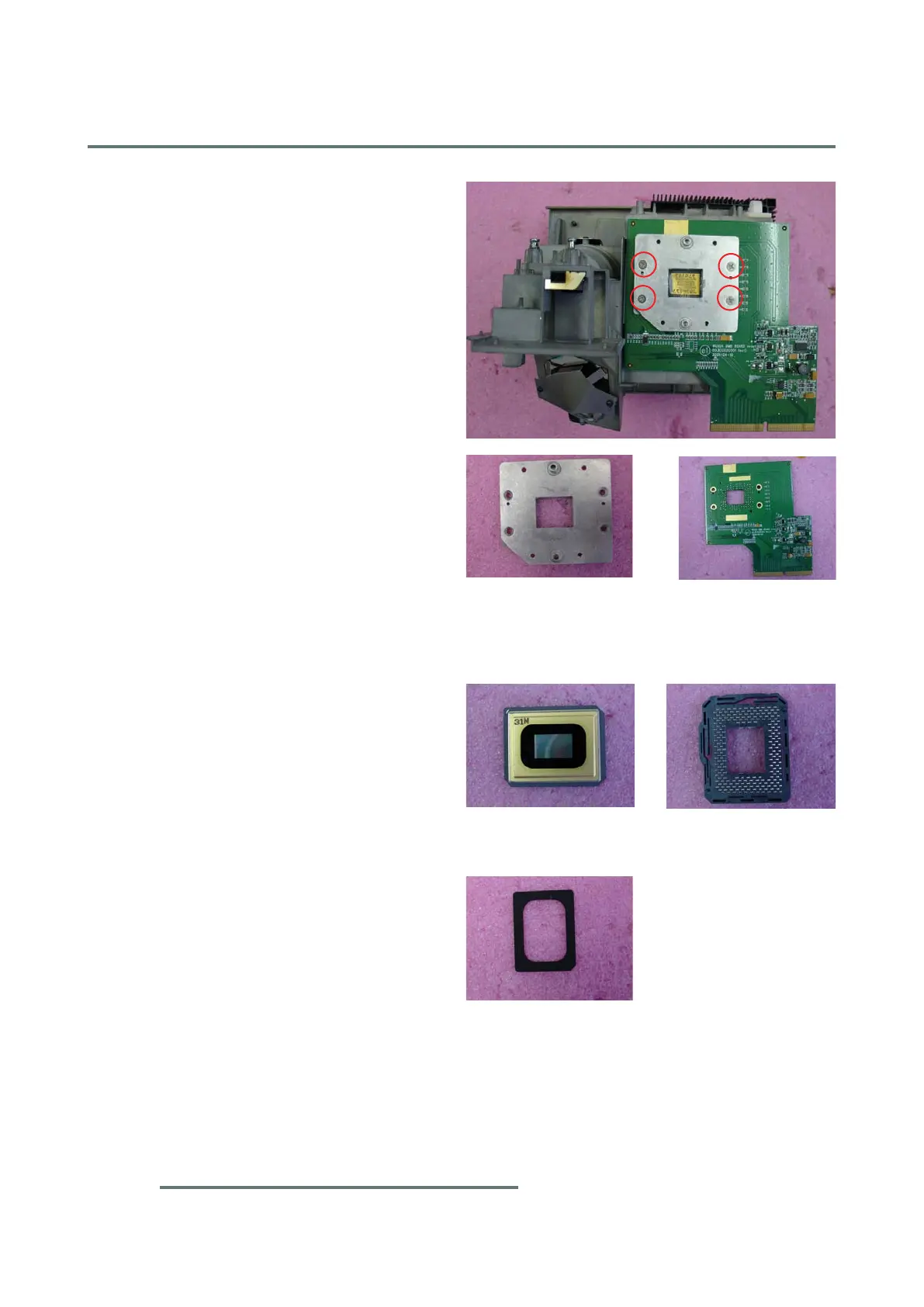

17. Unscrew 4 screws (red circle).
Remove DMD bracket, DMD board,
DMD chip, DMD socket and DMD
mask sequentially.
Note: 1. Keep the glass of a DMD chip facing
up when putting it aside.
2. The DMD Bracket of CLM W6 is
different from CLM HD6
DMD Bracket
DMD Board
DMD Chip
DMD socket
DMD Mask
