Chapter 2 Disassembly Process
2-44
CLM W6_CLM HD6 Jan 31, 2012

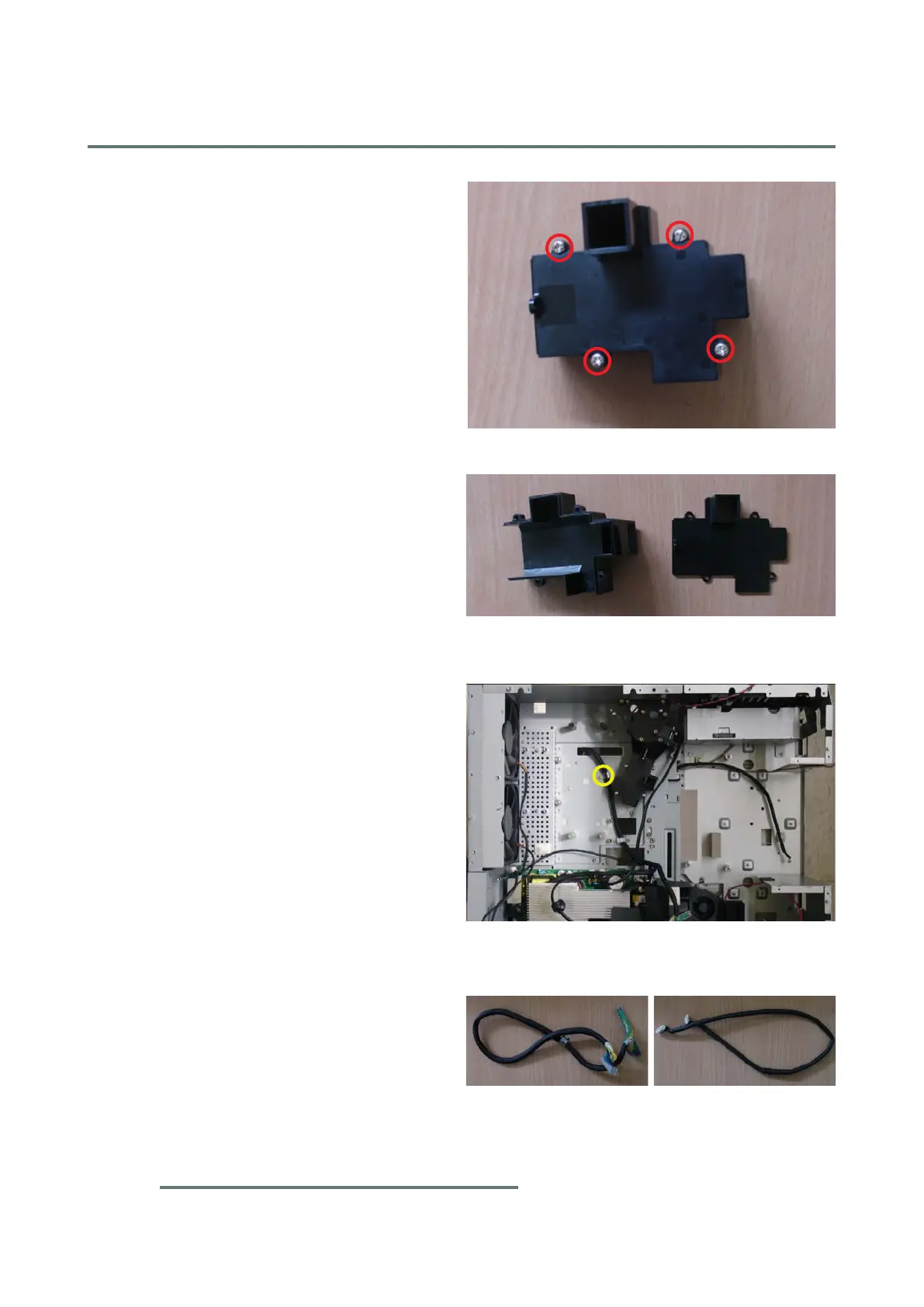

4. Unscrew 4 screws (red circle) to
disassemble fan module.
5. Unscrew 1 screw (yellow circle) to
remove 60 Pin cable.
6. Remove Main board to Color wheel
board cable.
60 Pin cable
MB to CW board
