11. Convergence
11.3 C onverging th e blue pattern ont o the red pattern
This adjustment procedure assum es that the projector is prepared for co nverg ence adjustment.
Necessary tools
No tools.
How to converge the blue pattern onto the red pattern?

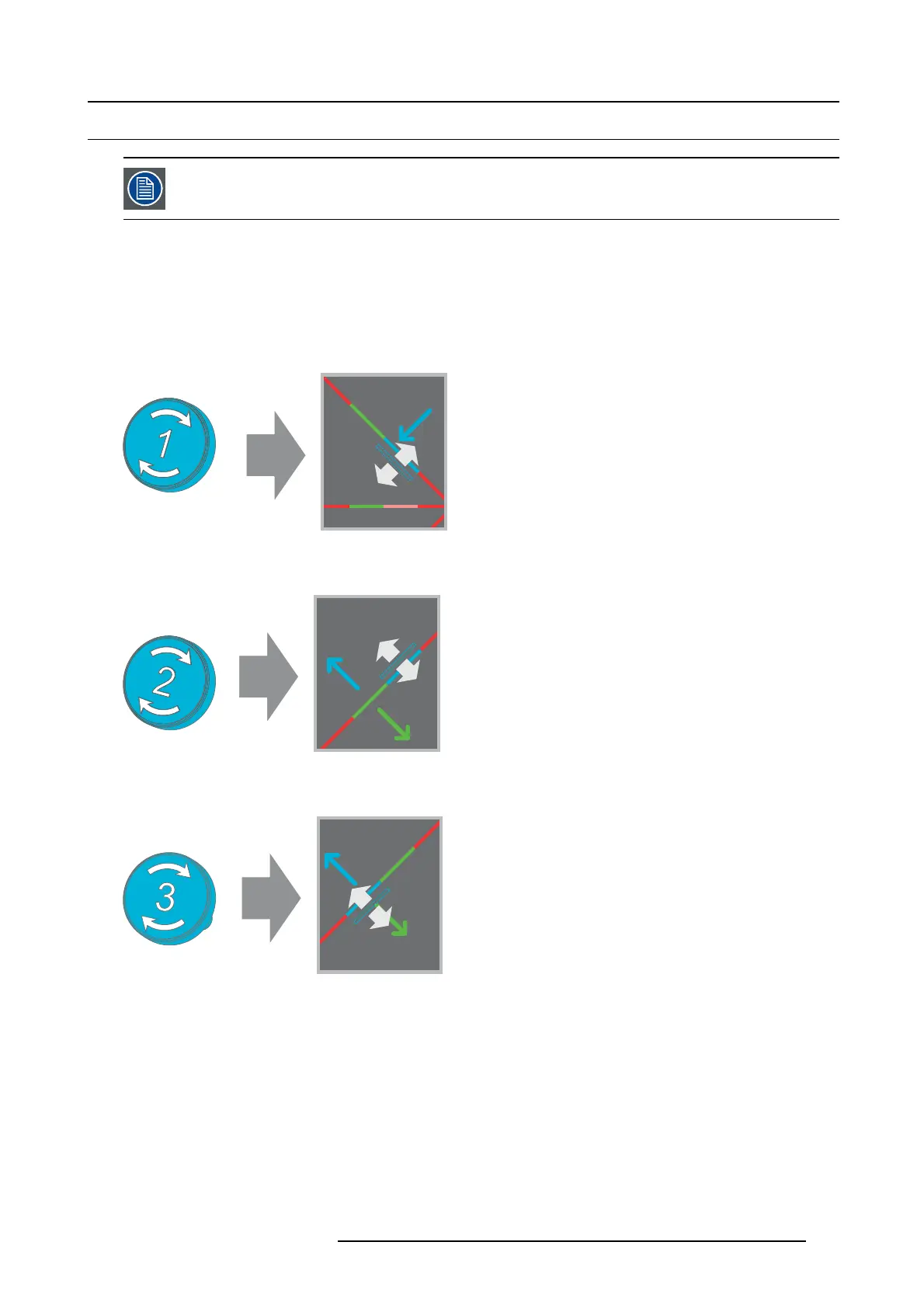

1. Slightly turn the blue colored control knob number 1 un til the blue pattern in the center of the projected image converges with
the red pattern. Note that a turn of a few degrees corresponds with one full pixel. The direction on the control knob corresponds
to the direction of the arrow of the test pa ttern.
1
Image 11-5
2. Slightly turn the blue colored control knob number 2 until the blue pattern in the lower left of the projected im age converges with
the red pattern.
2
5
Image 11-6
3. Slightly turn the blue colored control knob number 3 until the blue pattern in the upper right of the pr ojected image converges
with the red pattern.
3
6
Image 11-7
4. Repeat step 2 and 3 until coincidence is obtained of the blue pattern in the lower left and upper right of the projected image.
5. Repeat from step 1 until full coincidence is obtained of the blue pattern in the center, lower left and upper right of the projected
image.
6. Continue with the procedure: "Converging the green pattern onto the red pattern", page 110.
R5906847 DP2K SLP SERIES 02/06/2017
109
