15. Removal and installation of the projector covers

15.12 Installation of t he Light Source cover

Necessary tools

Flat screwdriver 7 mm

How to install the Light Source cover?

1. Install the Light Source cov er on the projector.

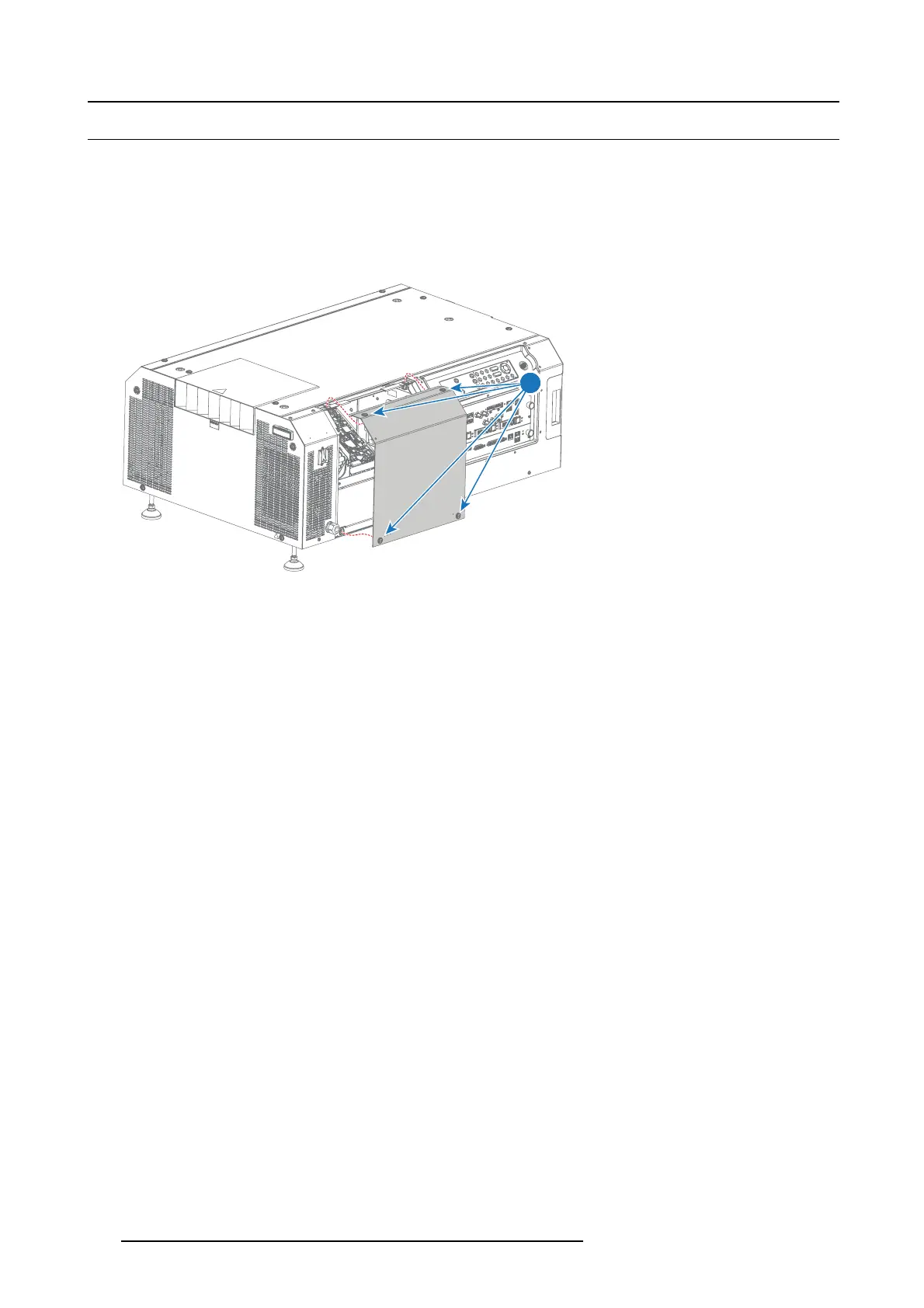

2. Fastenthefourcaptivescrews(reference1image15-16)oftheLightSourcecoverusinga7mmﬂat scre w d river.

1

Image 15-16

144 R5906847 DP2K SLP SERIES 02/06/2017
