15. Removal and installation of the projector covers
15.9 Installation of the left side cover
Necessary tools
Flat screwdriver 7 mm
How to install the left side cover?
1. Place the left side cover on the projector.
2. Fasten the five captive screws (reference 1 image 15-12) of the left side cover using a 7 mm flat screwd river.
Note: The left side cover is partial captured by the sheet metal of the sma ll filter assembly. For that, this filter is partially removed
for the removal of the side cover.
2
1

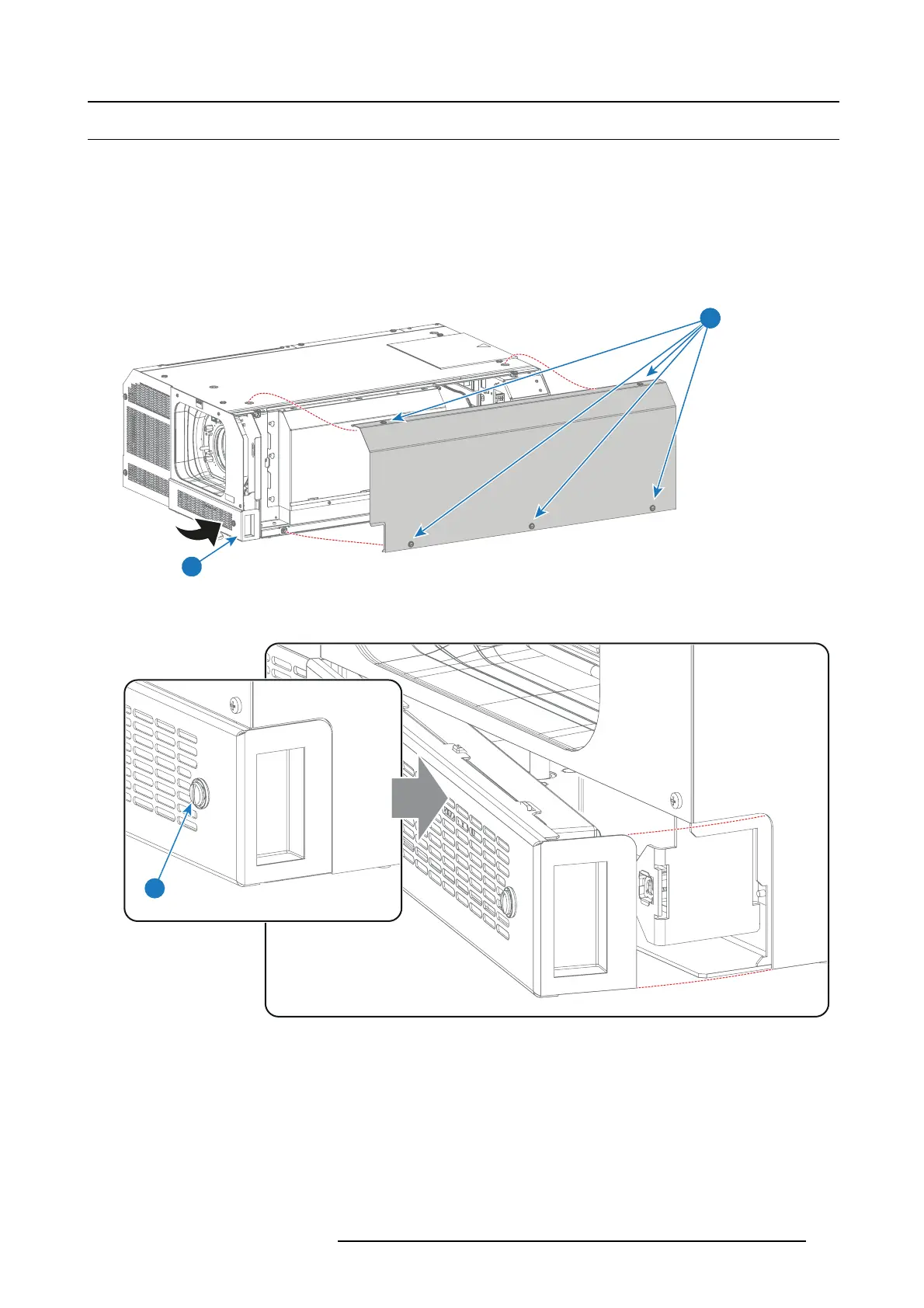

Image 15-12
3. Install the small dust filteratthefrontsideoftheprojector.Usea7mmflat screw driver to fasten the captive screw (reference 2
image 1 5-13) of the sm all dust filter assembly.
1
Image 15-13
R5906847 DP2K SLP SERIES 02/06/2017 141
