Analyzer Description 35
03/2016 CFPP Process Analyzer CFPP-4.2
5.3 Analyzer Components
5.3.1 Measuring unit enclosure
The following illustration gives you an overview of the most important components inside
the measuring unit enclosure. For detailed information, please refer to the supplied flow
diagram.

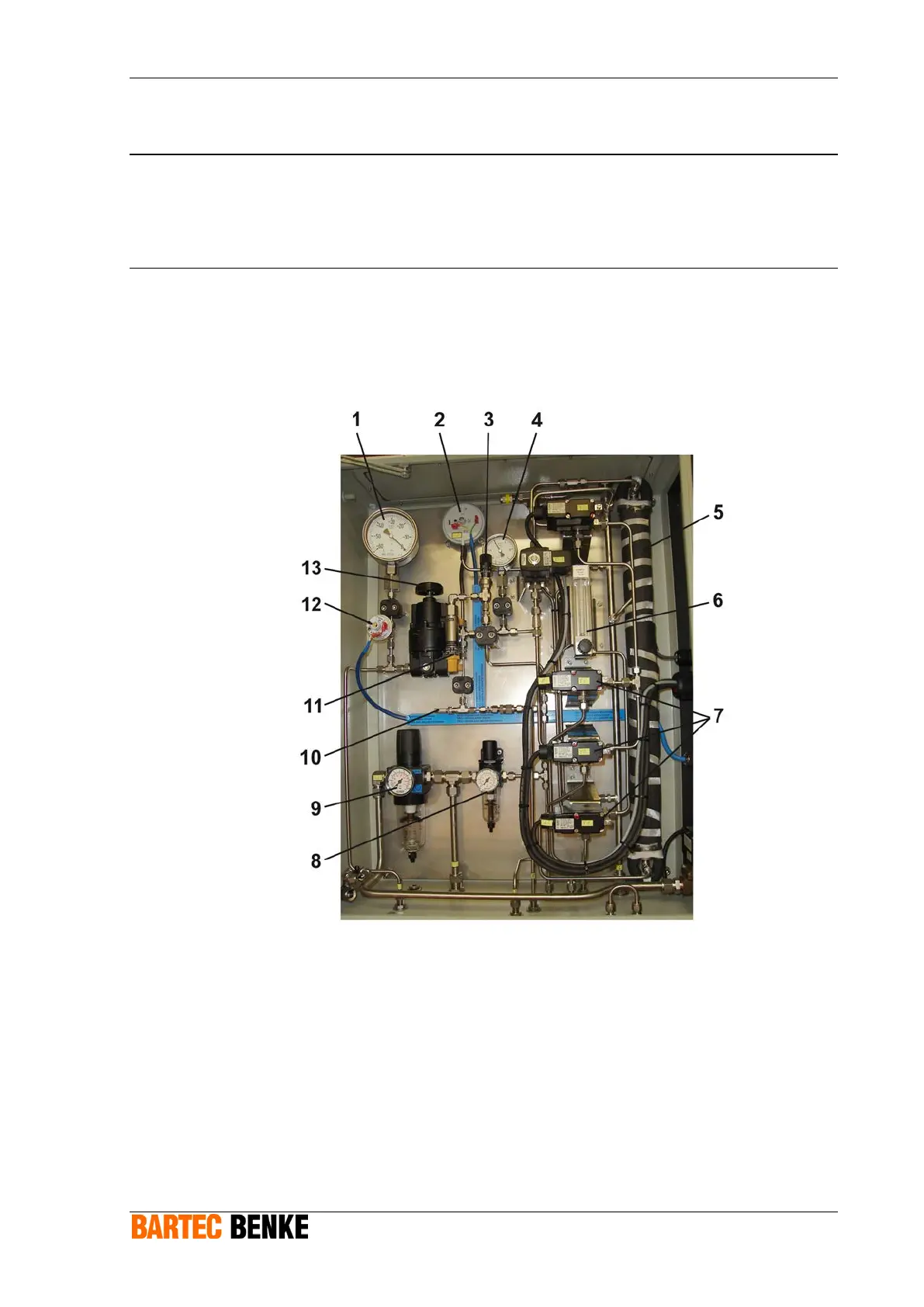

Fig. 5.3: Measuring unit enclosure, open
1 Vacuum pressure gauge
2 Pressure switch for backflow
detection
3 Metering valve injector
4 Pressure gauge for backflow
detection
5 Pipe heater
6 Flow controller
7 Magnetic valves
8 Air service unit for injector and
measuring cell
9 Air service unit for pressurized
housings
10 Metering valve measuring cell
11 Vacuum injector
12 Vacuum pressure switch
13 Vacuum pressure controller
