5.3.2 Measuring cell
The following illustration shows the most important visible components of the measuring
cell.

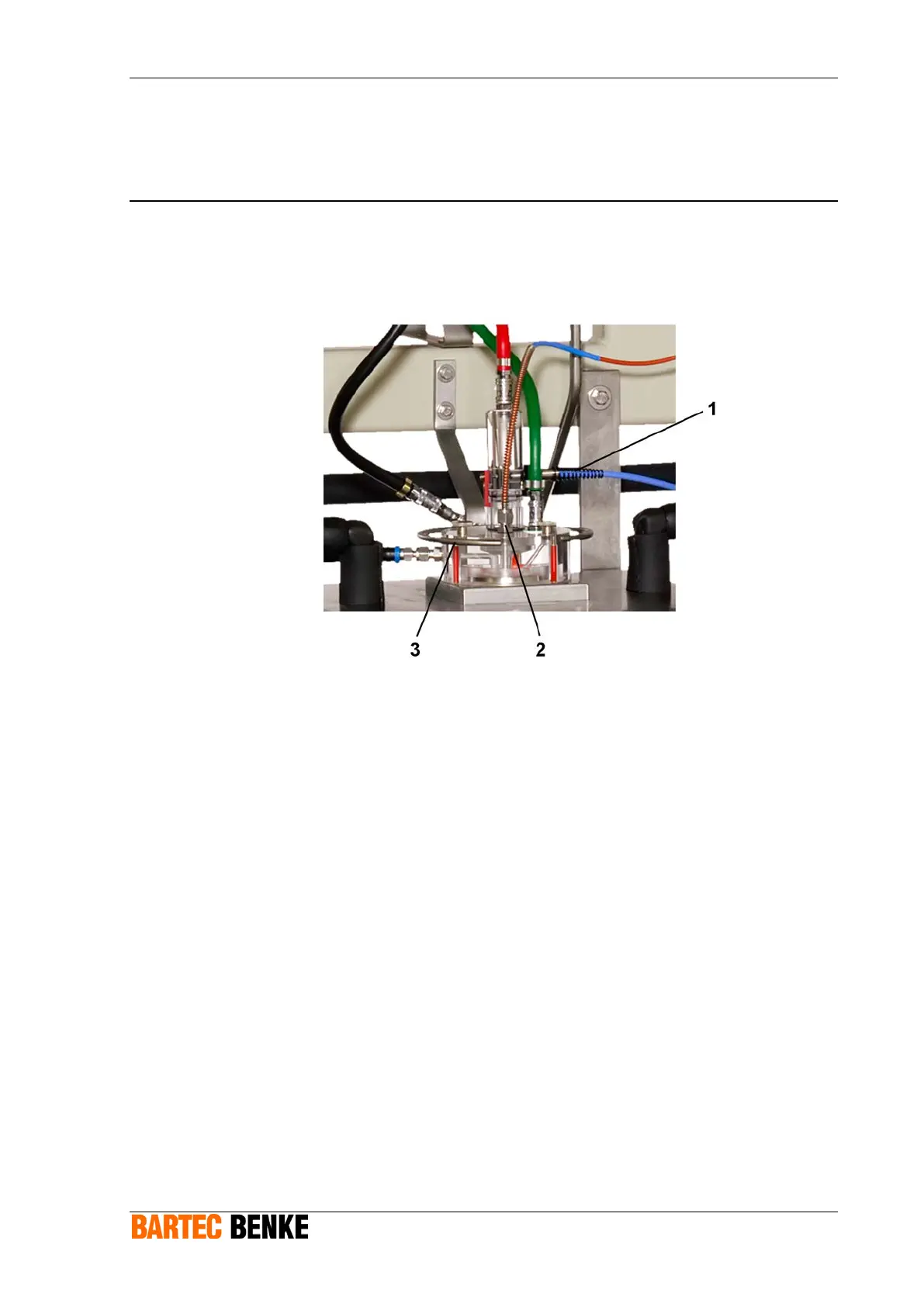

Fig. 5.4: Measuring cell, installed
2 Sample temperature sensor
The sample temperature sensor (2) is screwed into the measuring cell body, which is
made of transparent plastic. The liquid sensor (1) detects the sample that is sucked
through the test filter. Instrument air from the decondensation ring (3) prevents
condensation or ice on the cold surface of the measuring cell.
