Maintenance 97
03/2016 CFPP Process Analyzer CFPP-4.2
The measuring cell has now been replaced. The product stream can be activated and the
analyzer can be switched on (see chapter 9.1).
10.16 Remove the cover of the measuring cell housing
The measuring cell housing (5) is closed by a cover (3). At the bottom side of the cover a
heat exchanger with peltier elements is located for the cooling of the measuring cell. For
changing the peltier elements you must remove the cover.

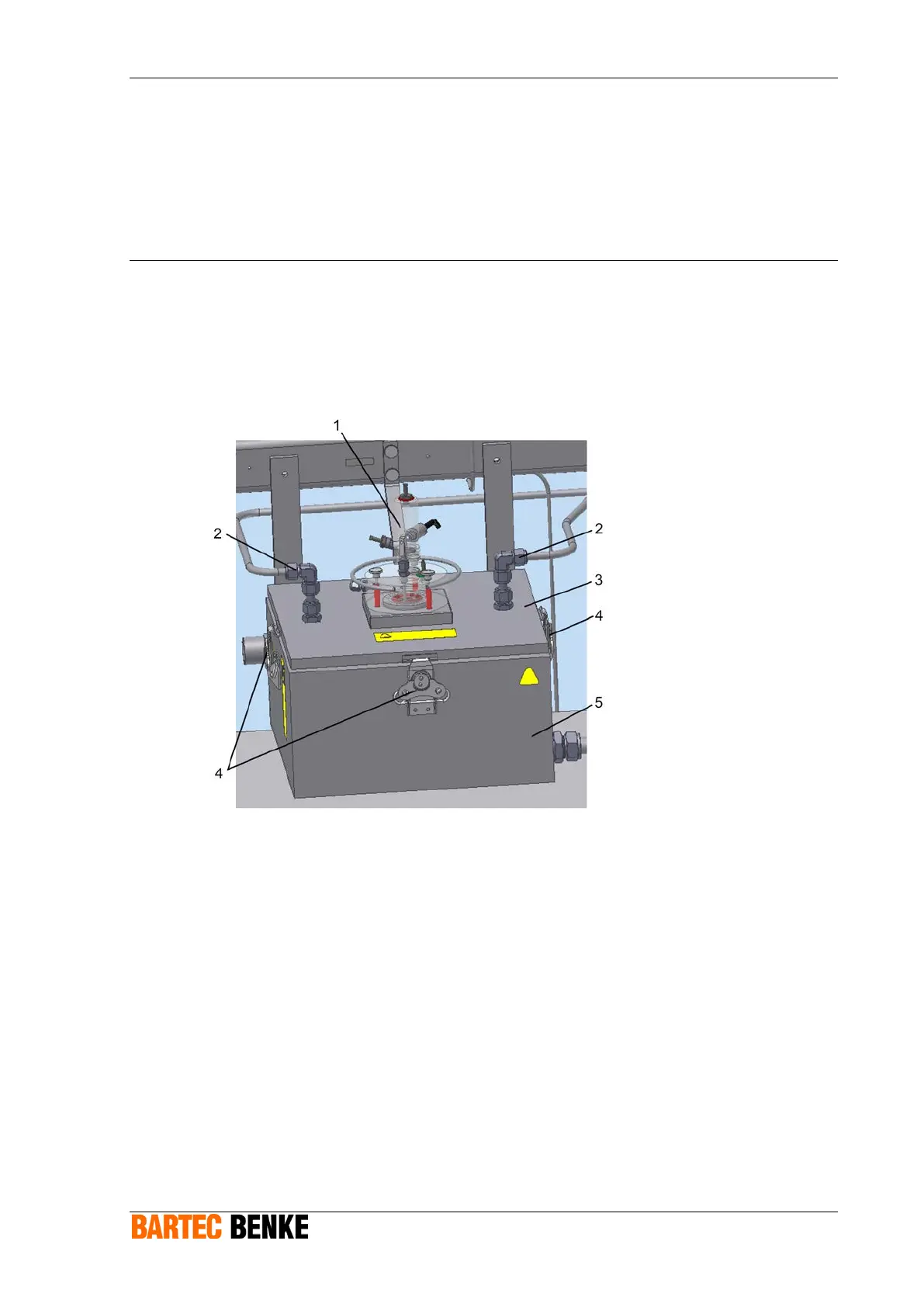

Fig. 10.20: Measuring cell housing
2 Screw connections of coolant lines
3 Cover
4 Locks
This is how to remove the cover:
• Remove the measuring cell (see page 82).
To remove the cover you have to loose the screw connections (2) of the coolant lines.
