34 Analyzer Description
CFPP Process Analyzer CFPP-4.2 03/2016
5.2 Type plates
Main type plate at power supply box
At Control box (Ex p)
At the junction boxes (Ex e) Measuring cell housing (Ex p)

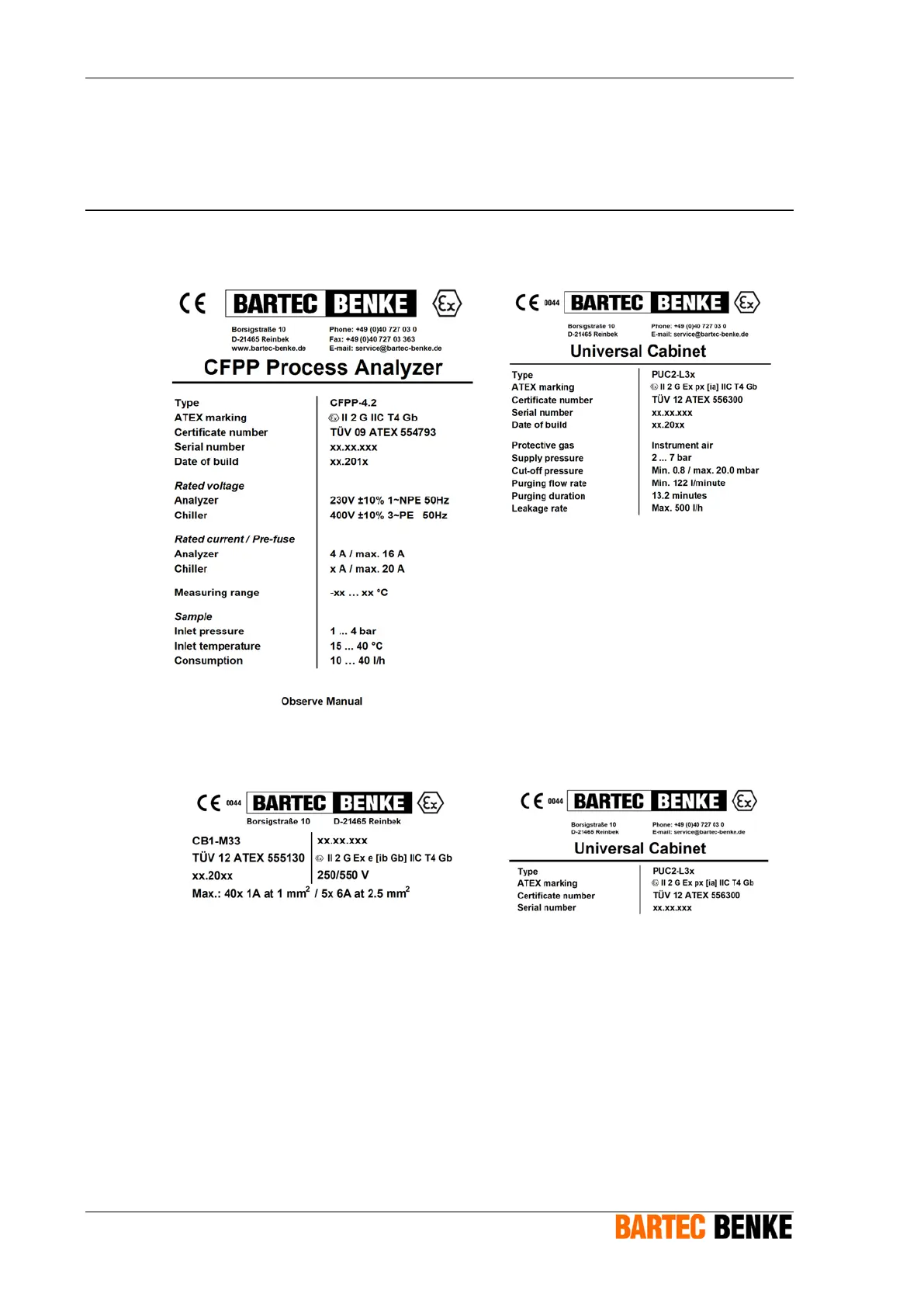

Fig. 5.2: Type plates (examples for ATEX version) and their position at the
analyzer.
On the type plates, you will find the most important information on explosion protection
and safe operation of the analyzer as well as the analyzer’s serial number. Make sure that
the type plate is always kept easily readable.
