Basler A504k User Manual

Basic Operation and Features
3-2 Basler A500k Series
PRELIMINARY
• In the A501k/kc, the data is reformatted to be output in 2 data streams in parallel (2 taps).
The 8 Bit video data is transmitted from the camera to the frame grabber using a Camera Link
transmission format (see Section 2.5 for details). The camera can transmit video at an eight bit
depth.
For optimal digitization, gain and offset are programmable via a serial port.

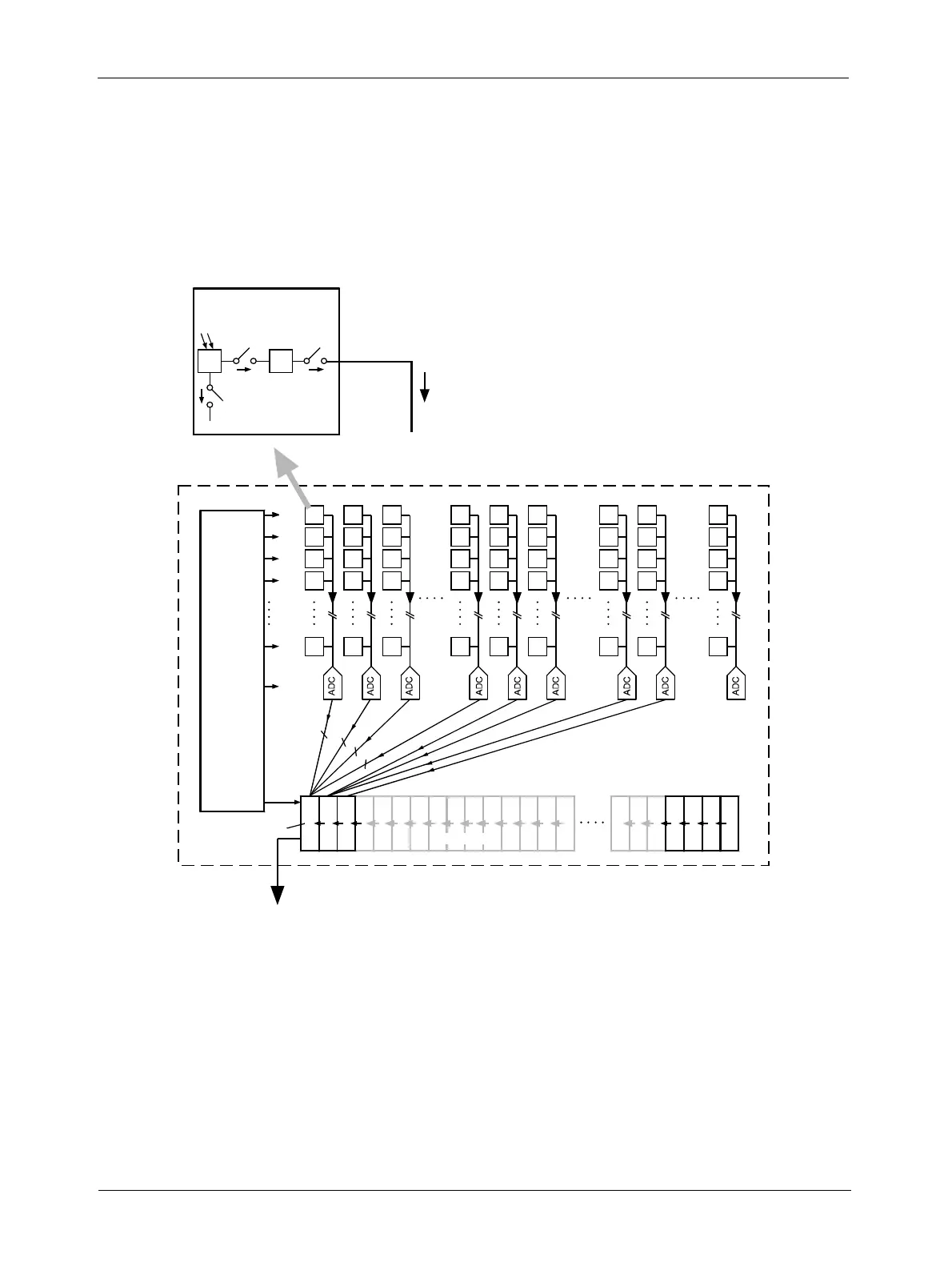

Figure 3-1:
A500k/kc Sensor Architecture
1 2 3 10 11 12 20 21 1280
1
2
3
4
1024
Control
Logic
Ref
10 x 10 Bit
Digital 128 Stage Shift Register
10 x 10 x 128
CMOS-Sensor
Digital-Output Sensor
10
10
10
128 Cells
10
clear
Pixel
Memory
