Basler A504k User Manual

Basic Operation and Features
Basler A500k Series 3-17
PRELIMINARY
3.3.3.1 ExSync, Programmable Mode with Asynchronous Timing

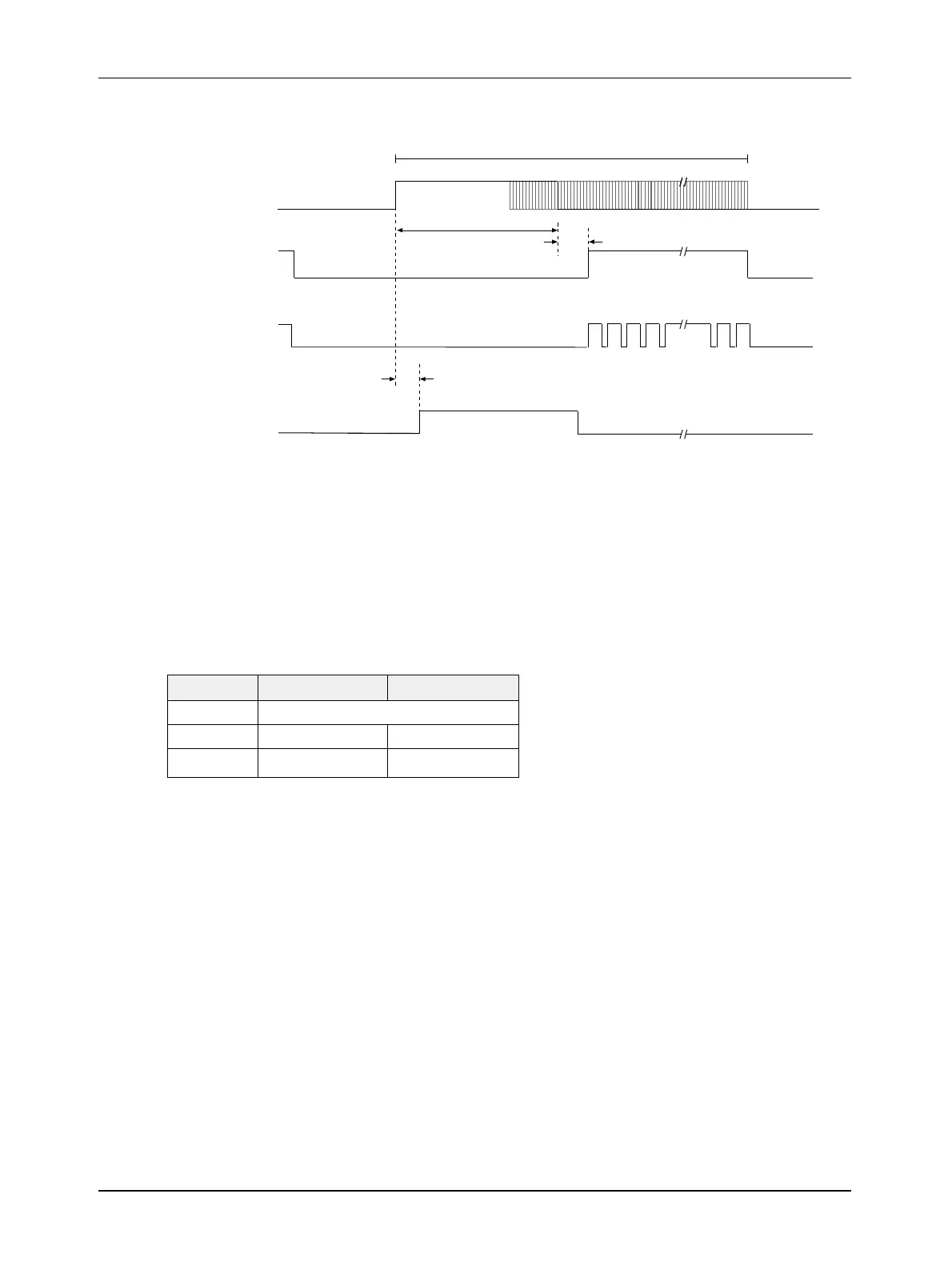

Figure 3-15: ExSync, Programmable Mode - Exposure Start and Stop with Frame Valid Low
If the exposure starts and ends while Frame Valid is low (see Table for values n to y):
• The actual start of exposure is x µs later than the rise of the ExSync signal.
• Actual length of exposure time = n µs + y µs
ExSync signal can already become high up to 1 µs before FVAL becomes low.
A504k/kc A501k/kc
n exposure set by ExSync
x
1.7 µs 7.2 µs
y
0 µs
≤ 5.5 µs
Exposure Time
(Timer 1)
Frame
Valid
FlashOut
Line
Valid
ExSync
ExSync Period
26.4 µs (A501k/kc)
7.2 µs (A501k/kc)
4.7 µs (A504k/kc)
1.7 µs (A504k/kc)
