Basler A504k User Manual

Basic Operation and Features
3-24 Basler A500k Series
PRELIMINARY
3.3.4.4 Free-run Mode with Synchronous Timing 2

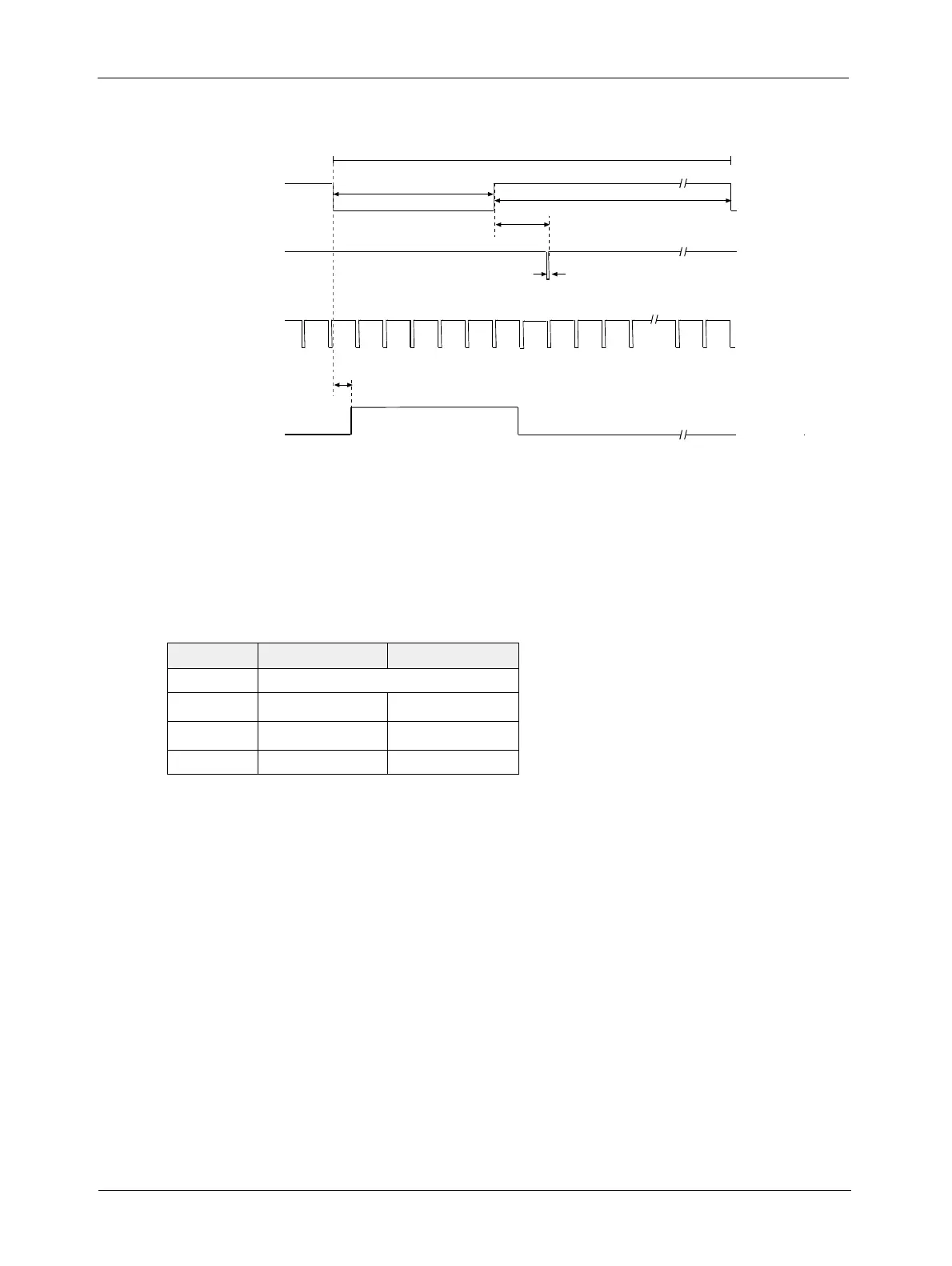

Figure 3-22:Free-run, Programmable Mode - Exposure Start and Stop with Frame Valid High
If the exposure starts and ends while Frame Valid is high (see Table for values n to z):
• Actual length of exposure time = n - x + y
The actual length of exposure time can only occur in multiples of z µs.
A504k/kc A501k/kc
n exposure set by Timer 1
x
≤ 2 µs ≤ 7 µs
y
≤ 2 µs ≤ 7 µs
z
2 µs 13.2 µs
Exposure Time
(Timer 1)
Frame
Valid
FlashOut
Line
Valid
Internal
Control
Signal
Internal Control Signal Period
Timer 2
0.8 µs
4µs ...6µs (A504k/kc)
27.4 µs ... 39.4 µs (A501k/kc)
300 ns (A501k/kc)
44 ns (A504k/kc)
