Basler A504k User Manual

Basic Operation and Features
3-18 Basler A500k Series
PRELIMINARY
3.3.3.2 ExSync, Programmable Mode with Synchronous/Asynchronous
Timing

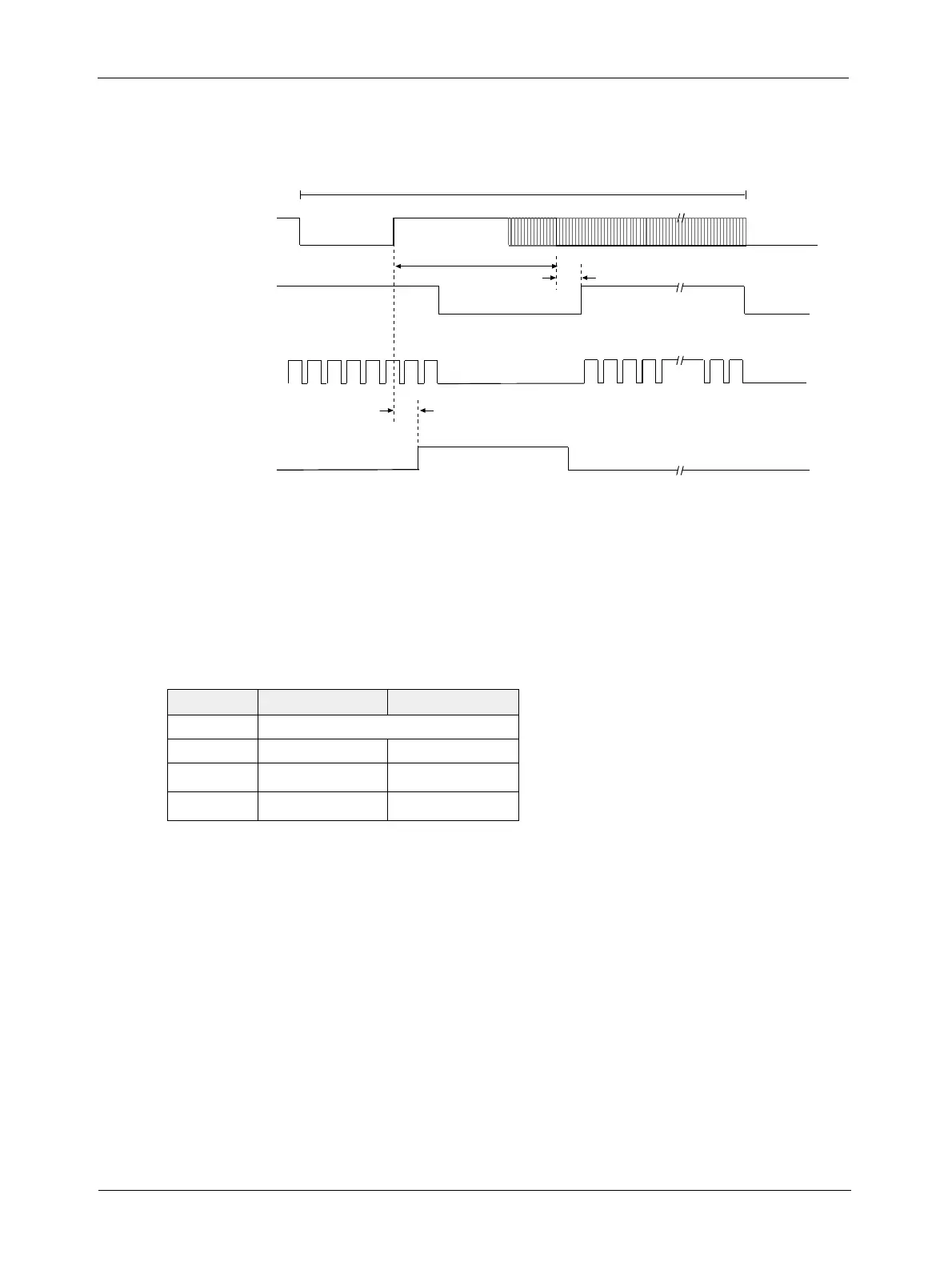

Figure 3-16: ExSync, Programmable Mode - Exposure Start when Frame Valid is High, Exposure
Stop when Frame Valid is Low
If the exposure starts when Frame Valid is high and ends while Frame Valid is low (see Table for
values n to z):
• The actual start of exposure can be x µs later than the rise of the ExSync signal.
• Actual length of exposure time = n - y µs ... n + z µs
A504k/kc A501k/kc
n exposure set by ExSync
x
1.7 µs to 3.7 µs 6.9 µs to 20.2 µs
y
≤ 1 µs ≤ 7.1 µs
z
≤ 3 µs ≤ 6.2 µs
Exposure Time
(Timer 1)
Frame
Valid
FlashOut
Line
Valid
ExSync
ExSync Period
26.4 µs (A501k/kc)
6.9 µs... 20.2 µs (A501k/kc)
4.7 µs (A504k/kc)
1.7 µs... 3.7 µs (A504k/kc)
