Basler A504k User Manual

Basic Operation and Features
Basler A500k Series 3-13
PRELIMINARY
3.3.2.2 ExSync, Level-controlled Mode with Synchronous/Asynchronous
Timing

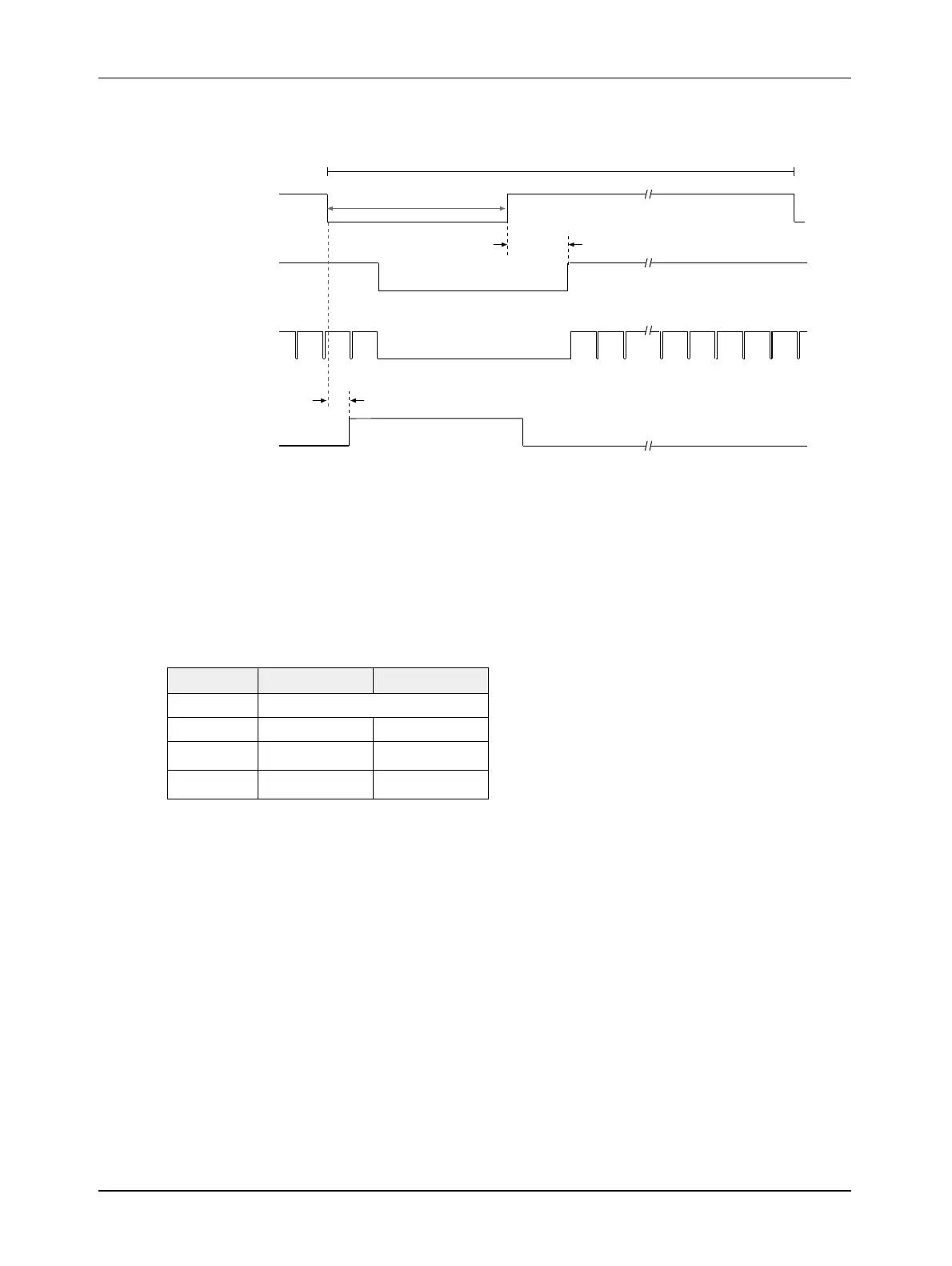

Figure 3-12: ExSync, Level-controlled Mode - Exposure Start when Frame Valid is High, Exposure
Stop when Frame Valid is Low
If the exposure starts while Frame Valid is high, and ends while Frame Valid is low (see Table for
values n to z):
• The actual start of exposure can be x µs later than the falling of the ExSync signal.
• Actual length of exposure time = n - y µs .... n + z µs
A504k/kc A501k/kc
n exposure set by ExSync
x
1.8 µs to 5 µs 6.8 µs to 20 µs
y
≤ 2 µs ≤ 13 µs
z
0 µs
≤ 0.2 µs
Exposure
Frame
Valid
FlashOut
Line
Valid
ExSync
ExSync Period
20.8 µs (A501k/kc)
6.8 µs...20 µs (A501k/kc)
3.3 µs (A504k/kc)
1.8 µs...5 µs (A504k/kc)
