Basler A504k - Exsync, Edge-Controlled Mode with Synchronous Timing 2

Basic Operation and Features
Basler A500k Series 3-11
PRELIMINARY
3.3.1.3 ExSync, Edge-controlled Mode with Synchronous Timing 2

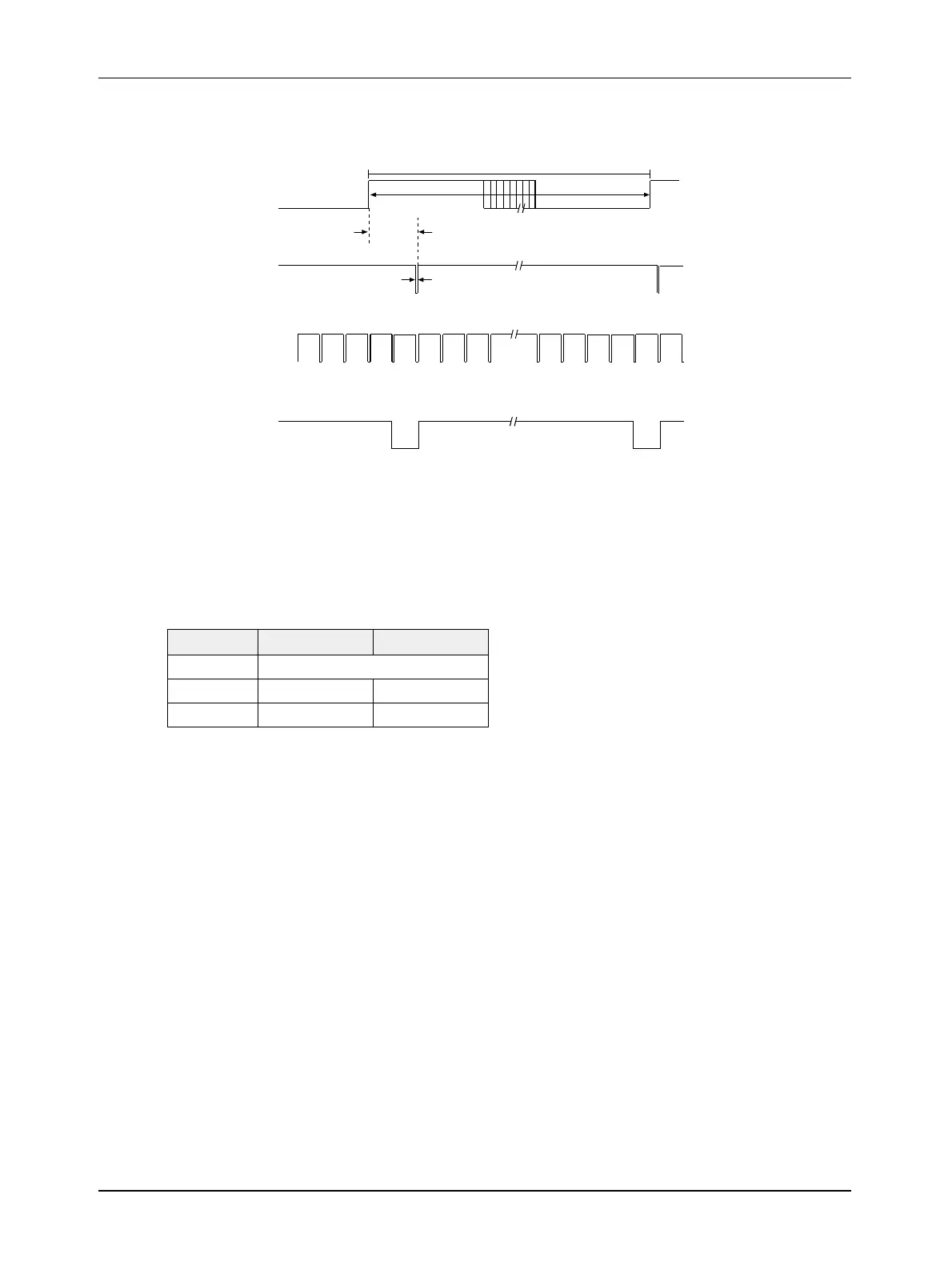

Figure 3-10: ExSync, Edge-controlled Mode - Exposure Start and Stop with Frame Valid High
If the exposure starts and ends while Frame Valid is high (see Table for values n to y):
• The actual start of exposure can be x µs later than the rise of the ExSync signal.
• Actual length of exposure time = n µs - y µs
A504k/kc A501k/kc
n exposure set by ExSync
x
5 µs ... 6 µs 20 ... 26.9 µs
y
3 µs 12.8 µs
Exposure
Frame
Valid
FlashOut
Line
Valid
ExSync
ExSync Period
300 ns (A501k/kc)
20...26.9 µs (A501k/kc)
5 ... 6 µs (A504k/kc)
44 ns (A504k/kc)
