3.3.5 Free-run VGA Mode (A504k/kc Only)

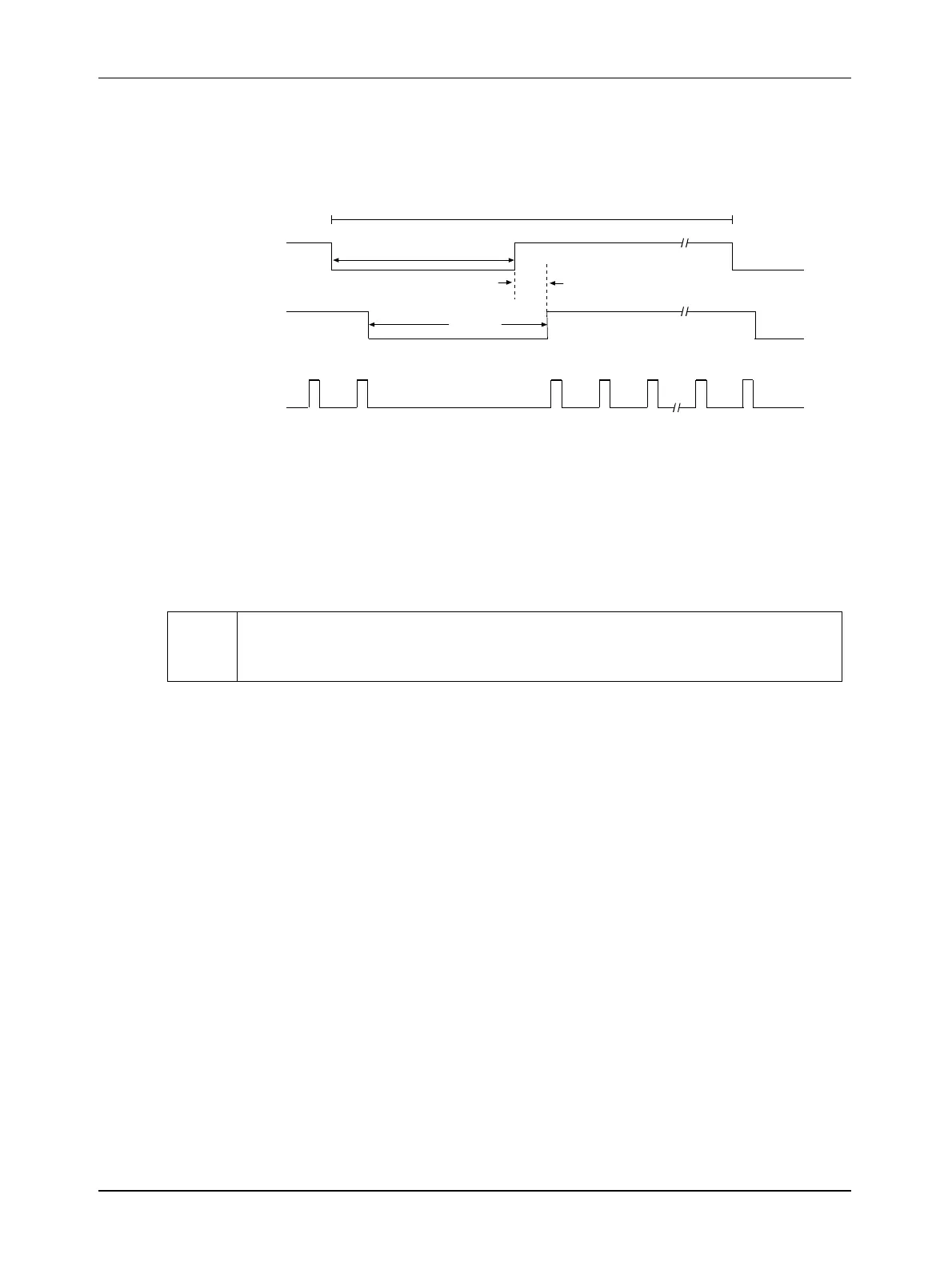

Figure 3-23: Free-run VGA Mode
Effective exposure = n - 15.8 µs ... n + 15.8 µs (n = exposure set by Timer 1)
Effective exposure time can only occur in multiples of 15.8 µs.
*
Timer 1 must be set to a minimum of 10 µs and to a maximum of 16645 µs.
With very low exposures, use flash light.
Exposure Time
(Timer 1)
Frame
Valid
Line
Valid
Internal
Control
Signal
Internal Control Signal Period
580 µs
16087 µs
34 µs
