Basler A504k User Manual

Basic Operation and Features
3-10 Basler A500k Series
PRELIMINARY
3.3.1.2 ExSync, Edge-controlled Mode with Synchronous Timing 1

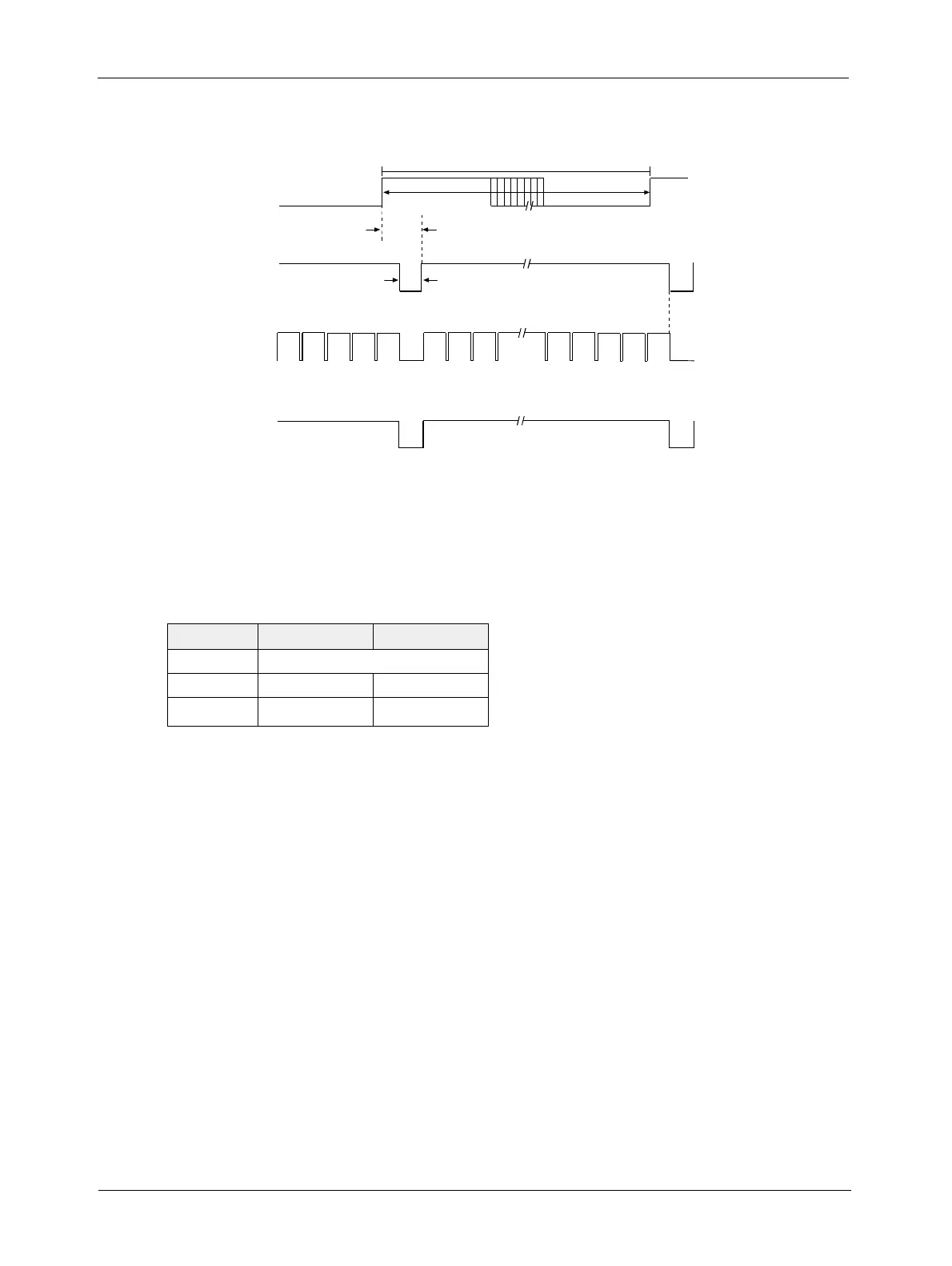

Figure 3-9: ExSync, Edge-controlled Mode - Exposure Start and Stop with Frame Valid High
If the exposure starts and ends while Frame Valid is high (see Table for values n to y):
• The actual start of exposure can be x µs later than the rise of the ExSync signal.
• Actual length of exposure time = n µs - y µs
A504k/kc A501k/kc
n exposure set by ExSync
x
3.3 ... 5.2 µs 27 ... 40 µs
y
≤ 3 µs ≤ 12.8 µs
Exposure
Frame
Valid
FlashOut
Line
Valid
ExSync
ExSync Period
27...40 µs (A501k/kc)
13.5 µs or 20.2 µs (A501k/kc)
3.28...5.2 µs (A504k/kc)
2 ... 3.3 µs (A504k/kc)
