Cabling
Operation manual b maXX BM4100 (NWR)
Document no.: 5.04052.09 Baumüller Nürnberg GmbH
112
of 142
11.1
11.1 Cabling
11.1.1 Cables power supply-device
1)
Possible cross section
Use a shielded Baumüller cable, optical shield overlap > 85 %.
For UL conform machines/installation you must use UL certified circuit cables.
2)
Device Cross section
1)
Connection to the device
BM4135 4 x 6 mm
2
to
4 x 16 mm
2
flexible cable with wire end ferrule (screw terminal)
BM4145 4 x 16 mm
2
to
4 x 50 mm
2
BM4163 4 x 25 mm
2
to
4 x 150 mm
2
cable lug max. width 35 mm
current bar
2)

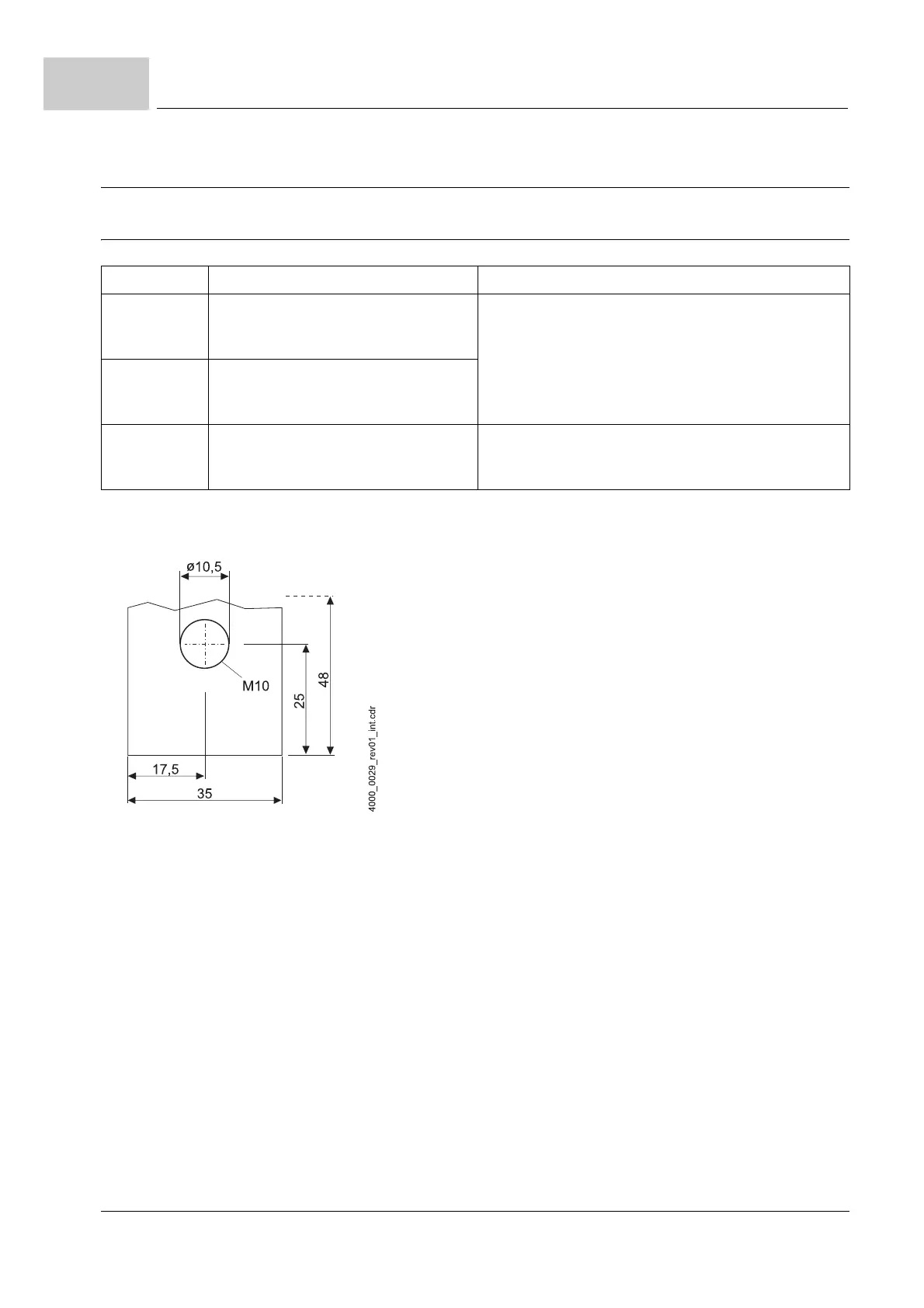

Connection lugs (current bars). Position see ZFigure 31– on page 73
Screw maximum two cable lugs to the current bar - one on the front side, one on the
reverse side of the bar.
