11.1.8 Interface cable RS232
A pre-assembled cable is available as a spare part, see ZCable RS232– on page 124.
1 Use the following materials:
m Cable: LIYCY 6x2x0.14 mm
2
m Sub-D connectors, 9-pole, female, cabinet plastics metallized
m Sub-D connector, 9-pole, male, cabinet plastics metallized
2 connect the cable shield with the cabinet and with the shield of the Sub-D connector

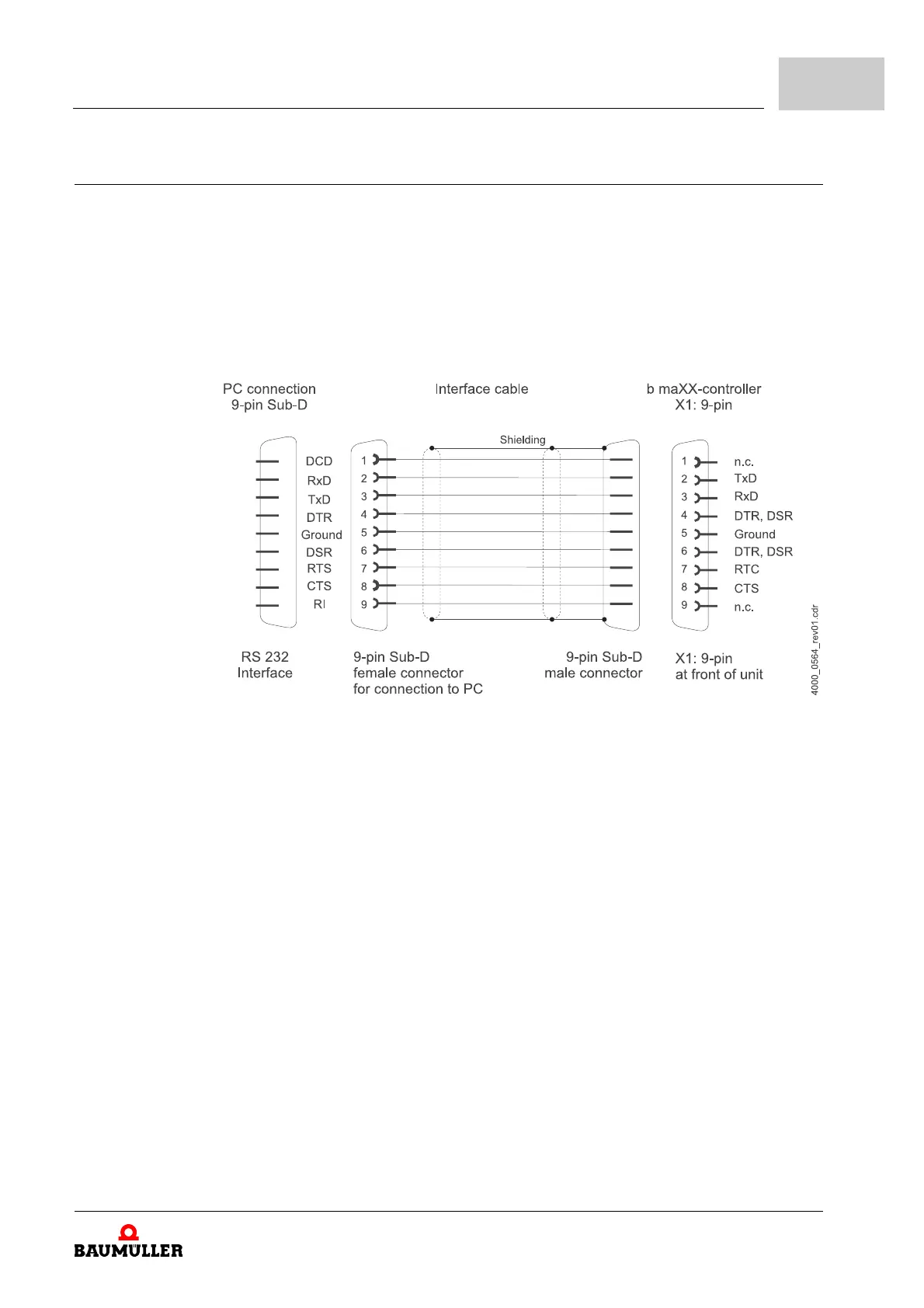

Figure 45: Interface cable RS 232
