11.1.2 Cables device (DC link) - axis
1)
Possible cross section
Use a screened circuit Baumüller-line, optical shield coverage > 85%. Do not use single conductors.
For UL conform machines/installations you must use UL certified circuit cables.
2)
A cable with a 16 mm cross section must be used for BUM4135. The DC link terminals at BUM4135 are intended for a cross section till
10 mm, therefore at the BM4135 e. g. male cable lugs according to DIN46230 must be used.
3)
11.1.3 PE connector
m Cross section:
min. 10 mm² copper or 16 mm² aluminium conductor
m Both connection terminals for the PE connector have an identical cross section like the
original PE connector
Device Cross section
1)
Connection to the device
BM4135 2 x 6 mm
2
to
2 x 16 mm
2
male cable lug according DIN46230
2)
(screw terminal)
BM4145 2 x 16 mm
2
to
2 x 50 mm
2
flexible cable with/without wire end ferrule
(screw terminal)
BM4163 2 x 25 mm
2
to
2 x 150 mm
2
cable lug max. width 35 mm
current bar
3)

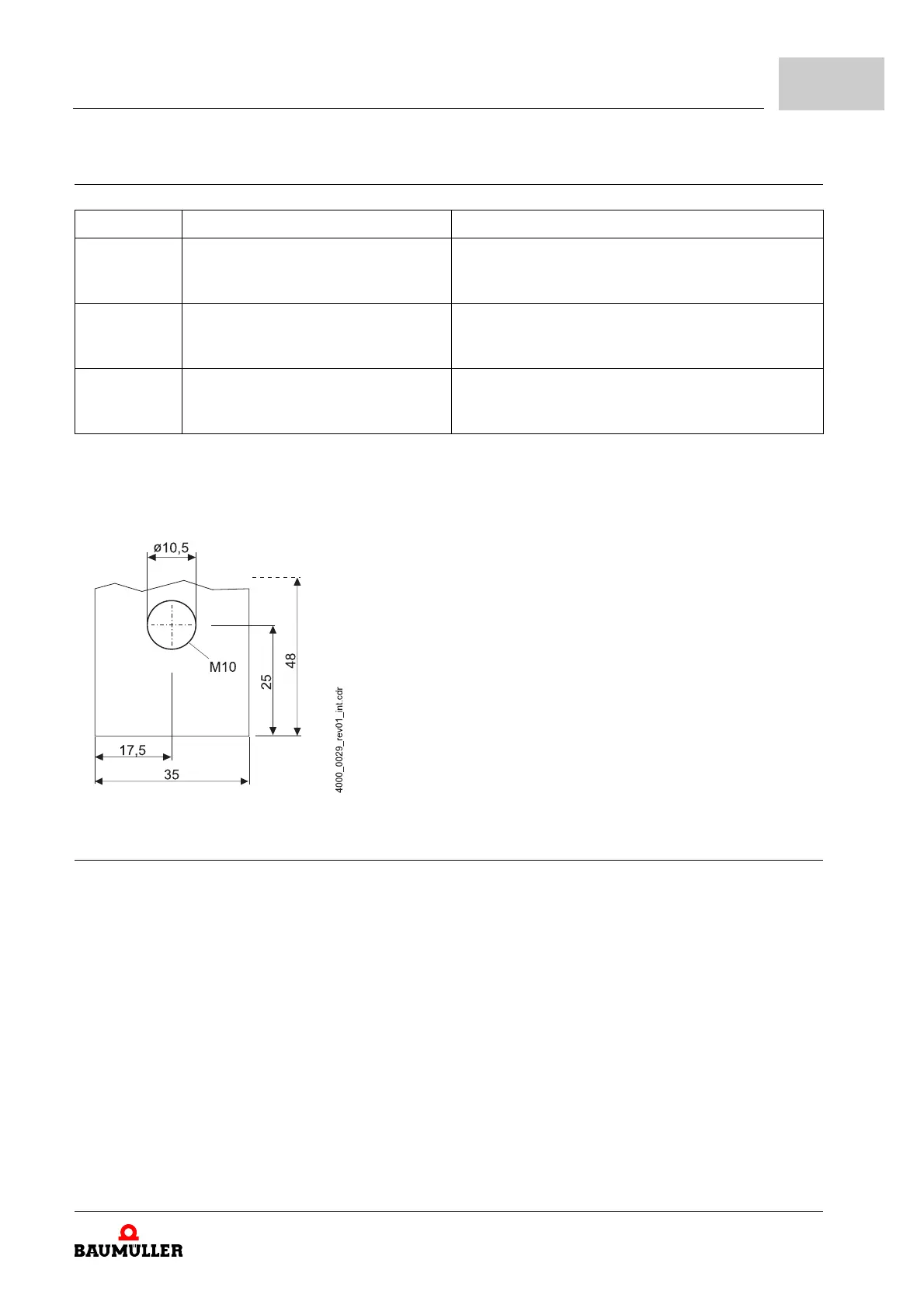

Connection lugs (current bars). Position see ZFigure 31– on page 73
Screw maximum two cable lugs to the current bar - one on the front side, one on the
reverse side of the bar.
