7.17 Proposal against system reactions
An additional HF mains choke (see ZFigure 28–) can reduce the system reactions, if the
reaction to switching frequencies on the mains because of defects within the mains sup-
ply is too high.

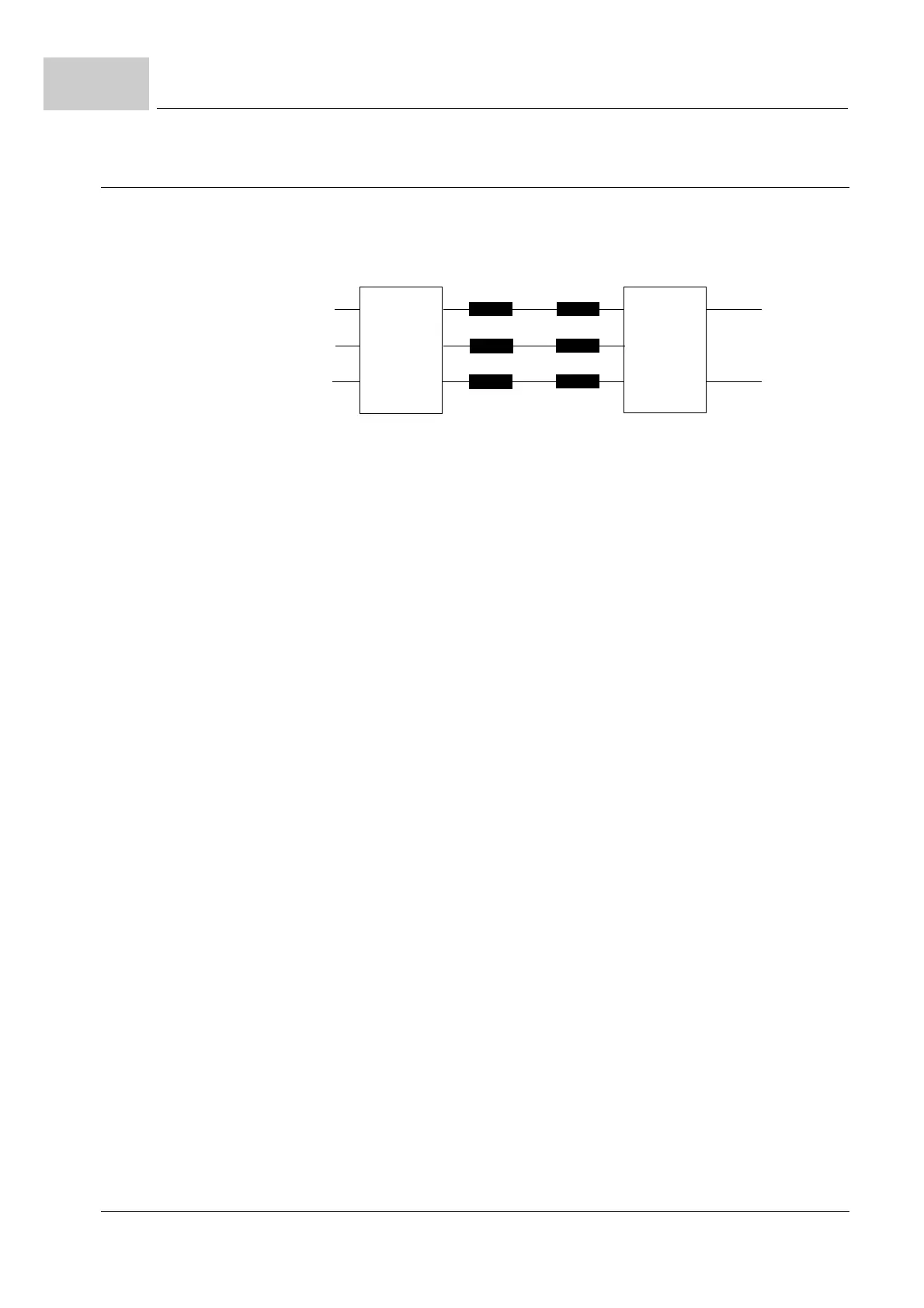

Figure 28: Proposal against system reactions
Mains
BM4100
1C1
1D1
Mains
filter
