Design and Operation
Operation manual b maXX BM4100 (NWR)
Document no.: 5.04052.09
39
of 142
4

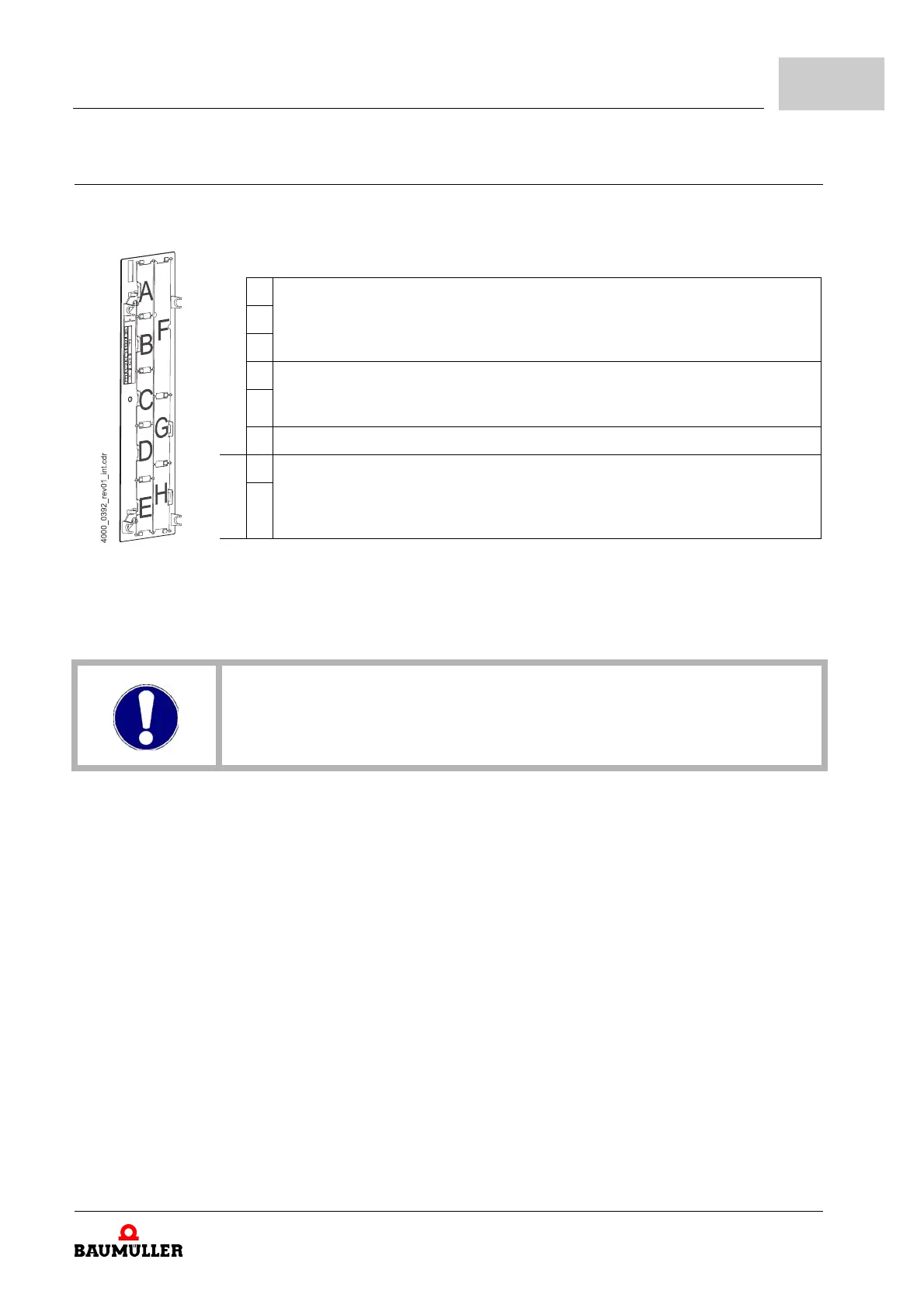

4.2.1 Slots
In slots of the controller unit function or option modules are plugged, which extend the
functional range of the controller unit. Every slot is clearly identified by a code letter.
Each plug-in module in den slots D, E, G and H is delivered with an accordant manual. In
the manual of the module amongst other things the mounting and the installation of the
module is described.
Dependable of the on your device existing controller unit variant you can retrofit optional
plug-in modules (function modules and option modules). The slots differ in size and func
-
tion.
1- and 2-rowed
A
Function modules, permanently installed
B
C
D With this plug-in module in this slot the controller communicates via a function
module bus.
Option modules can not be inserted into these slots.
E
F Controller module, permanently installed.
2-rowed
G With plug-in modules in these slots the controller communicates via the BACI
bus.
In these slots option modules can be inserted.
Function modules can not be inserted into these slots.
H
CAUTION!
Modules of other manufacturers can damage/destroy the device.
Only use BM4-F-XXX- and BM4-O-XXX-plug-in modules.
