Baumuller b maXX 4100 Series - Installation Space BM4135-S; Installation Space BM4145-S

Dimensions
Operation manual b maXX BM4100 (NWR)
Document no.: 5.04052.09 Baumüller Nürnberg GmbH
24
of 142
3.1
*: min. expansion space, also consider ZCooling– on page 29

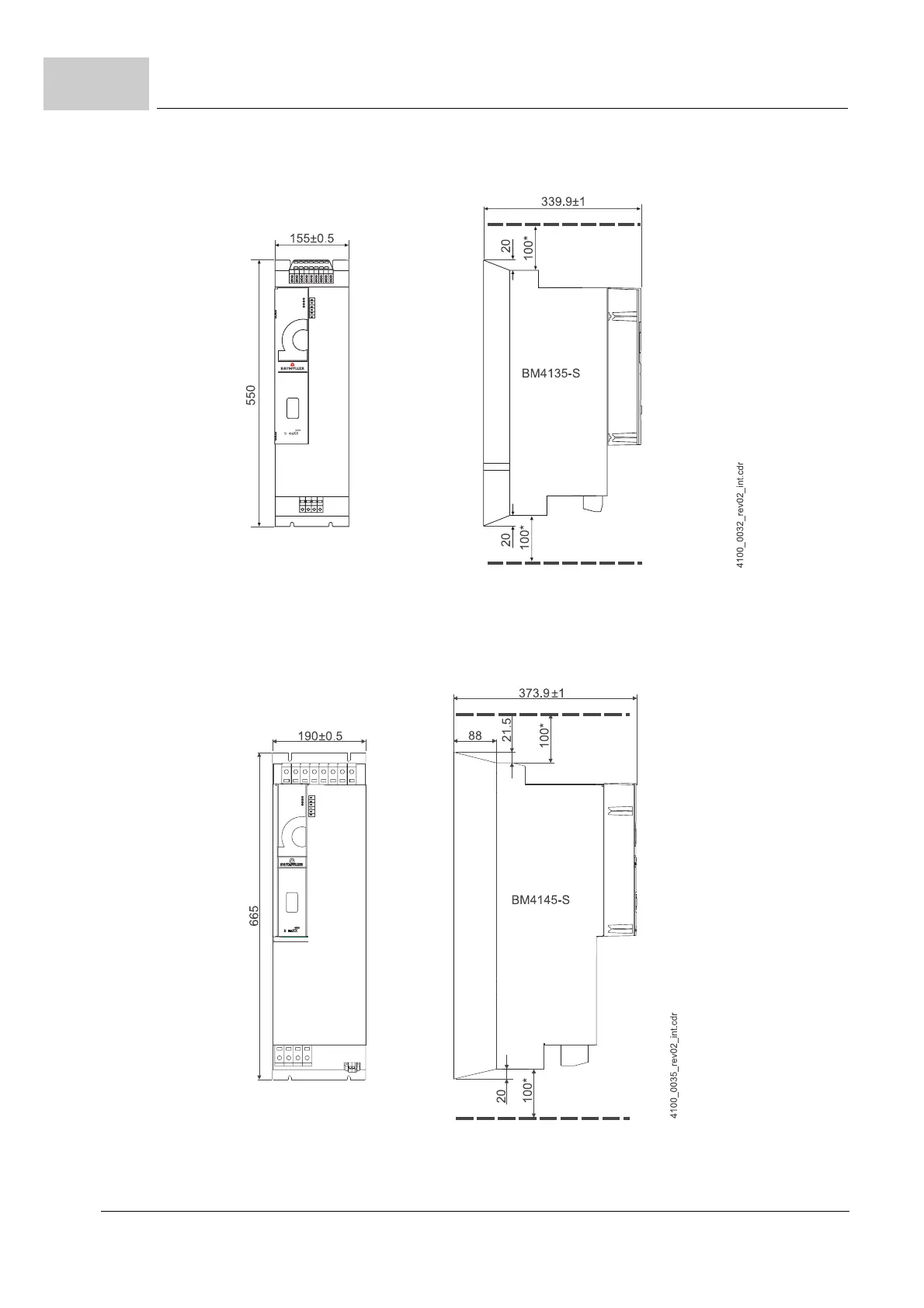

Figure 4: Installation space BM4135-S
*: min. expansion space, also consider ZCooling– on page 29
Figure 5: Installation space BM4145-S
