11.5 Power chokes
m Jacke (not UL-listed)
The listed chokes are specified for the operation at 400 V / 50 Hz or 480 V / 60 Hz.

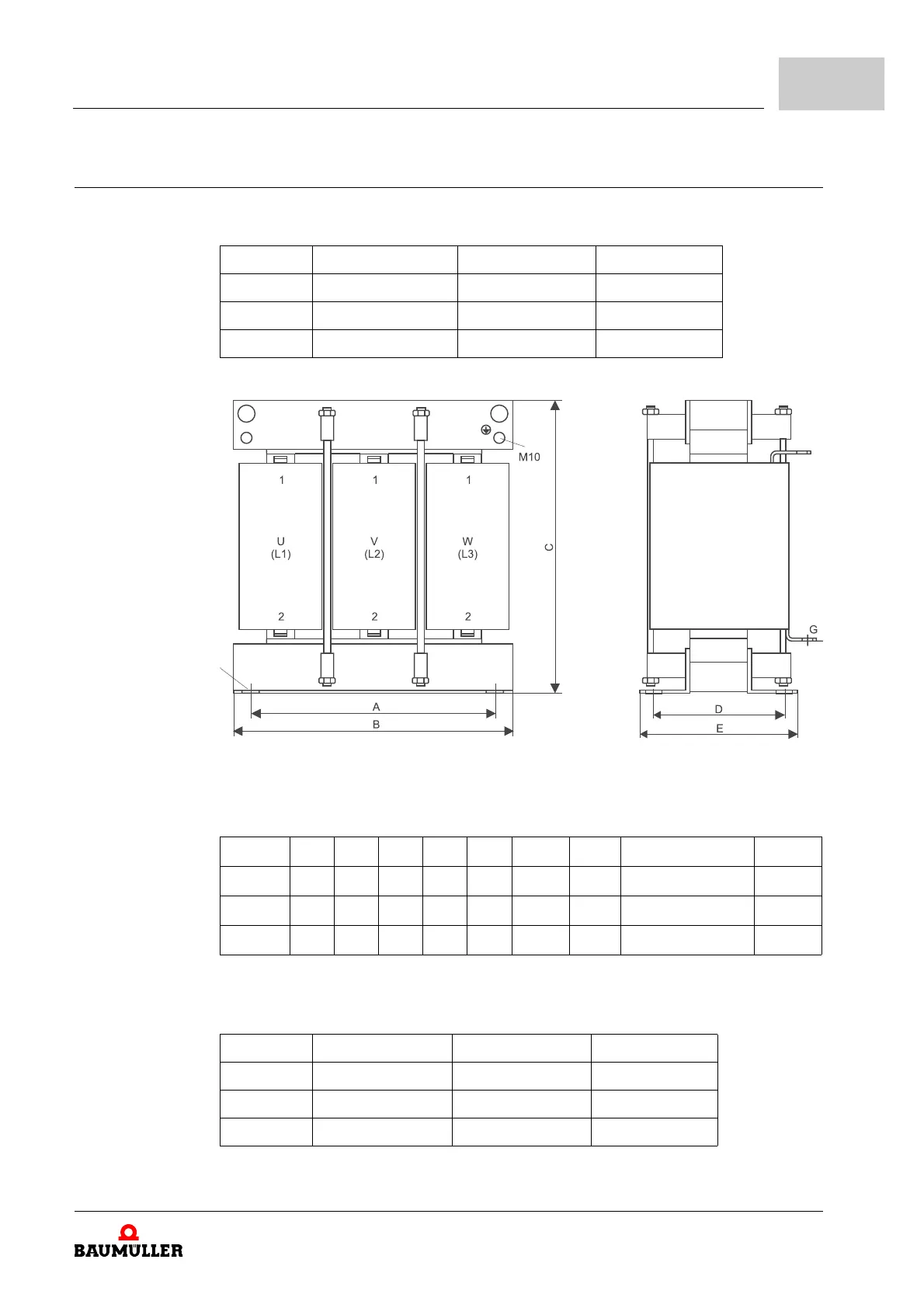

Figure 48: Figure mains choke
Table with dimensions of the mains chokes:
m Tramag (UL-listed)
Device Name Inductance Part number
BM4135 BL-3-060-000 1,0 mH 388168
BM4145 BL-3-130-000 0,48 mH 388741
BM4163 BL-3-240-000 0,36 mH 396302
Type A B C D E F G Connection Fixing
BM4135 260 300 306 110 140 9x13 ∅8,5 bar with hole M8 M8
BM4145 300 360 330 110 140 9x13 ∅8,5 bar with hole M8 M8
BM4163 430 480 420 160 220 13x26 ∅11 bar with hole M10 M12
Device Name Inductance Part number
BM4135 BL-3-060-001 1,0 mH 415096
BM4145 BL-3-130-001 0,48 mH 415097
BM4163 BL-3-240-001 0,36 mH 415099
