BayStack 350 10/100/1000 Series Switches
304376-B Rev 00
1-17
High-Density Switched Workgroup Application

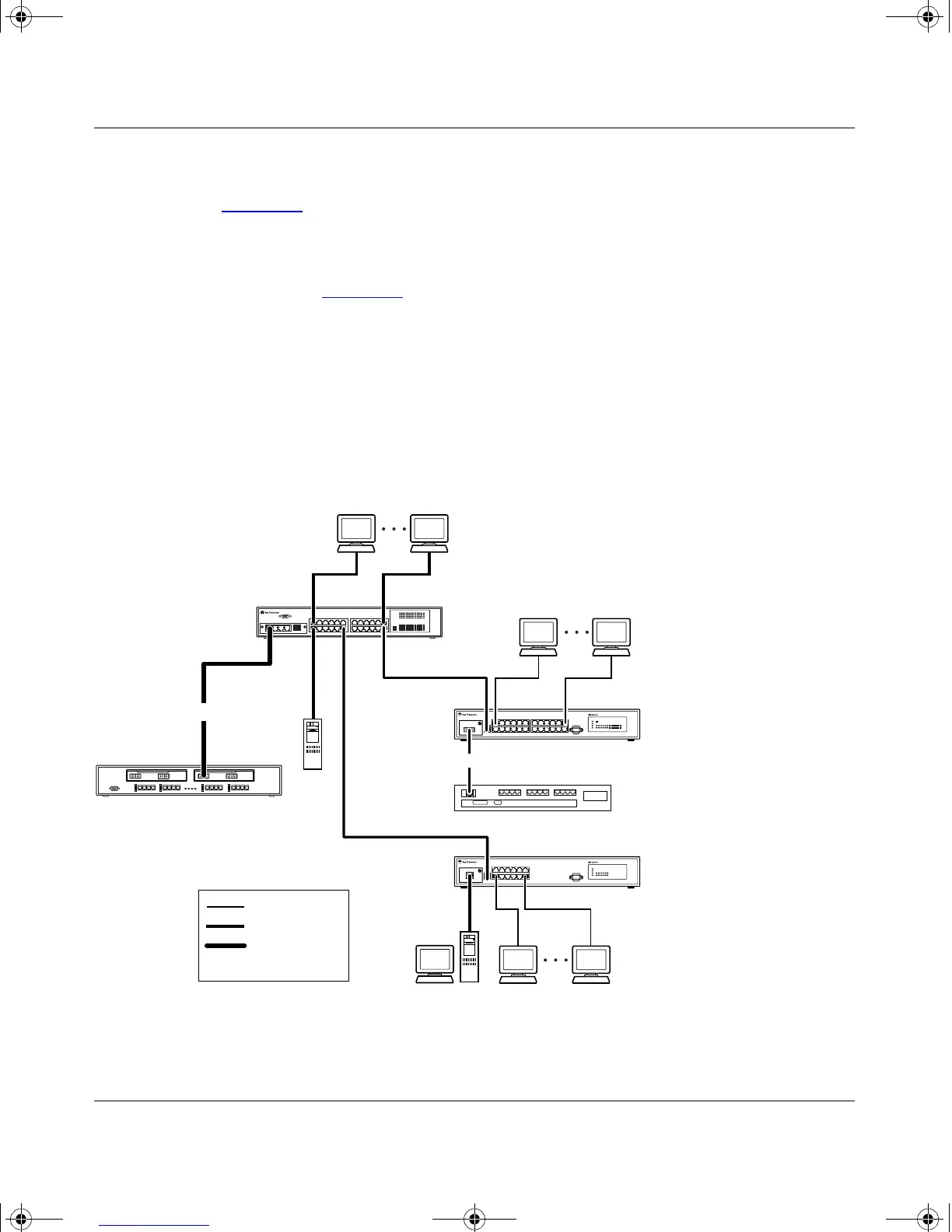

Figure 1-7 shows a BayStack 350-24T switch with a high-speed (gigabit)
connection to a Bay Networks Accelar
™
1100 switch. BayStack 303 and 304
switches are also shown in this example of a high-density switched workgroup.
As shown in Figure 1-7
, the Accelar 1100 switch is used as a backbone switch,
connecting to the BayStack 350 switch with an optional gigabit (1000BASE-SX)
MDA for maximum bandwidth. The BayStack 303 and 304 switches have 100
Mb/s connections to the BayStack 350 switch, a 100BASE-TX hub, and a 100
Mb/s server and 10 Mb/s connections to DTE (data terminal equipment).
See the Bay Networks library Web page: support.baynetworks.com/library/ for
online documentation about the Bay Networks Accelar 1100 switch and the
BayStack 303 and 304 switches.
Figure 1-7. Configuring Power Workgroups and a Shared Media Hub
CPU PS1 PS2 FAN
303
BayStack 304
switch
BayStack 303
switch
100BASE-TX
hub
Key
10 Mb/s
100 Mb/s
1000 Mb/s
(Gigabit)
BayStack 350-24T
switch
Server
Accelar 1100 switch
BS35007A
304
F
F
