After the switches learn which ports are requesting access to the IP Multicast
stream, all other ports not responding to the queries are blocked from receiving the
IP Multicast (see Figure 1-26
).

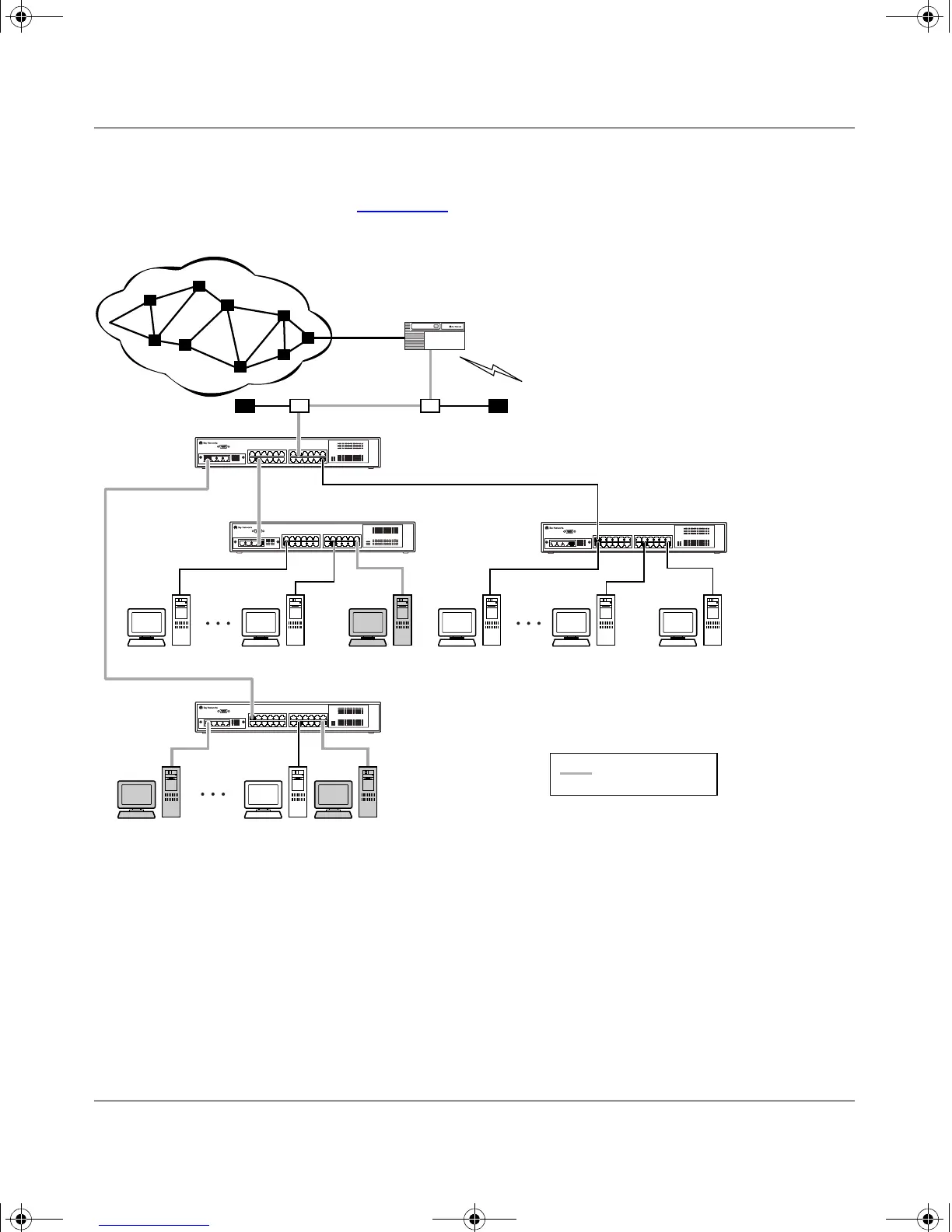

Figure 1-26. BayStack 350-24T switches Filtering IP Multicast Stream (2 of 2)
BS35023A
Designated
router
Host
Membership
Query
Internet
BayStack 350-24T
switch
BayStack 350-24T
switches
BayStack 350-24T
switch
Key
Multicast stream
S2
S4
S1
S3
