7 Procedural Instructions on the TSC
Infusomat® compact
plus
P 1.0 7 - 3
EN
For internal use, only
3. Check infusion with the following steps:
a) Open the pump door, insert a primed line, and close the
pump door.
b) Open the roller clamp and confirm the line.
c) Deny priming if this message ap
pears (configurable).
d) Select a rate of 1.1 ml/h and start infusion.
The green LED lights up, arrows move from right to left.
4. Press all buttons except the On/Off button at least o
nce.
All buttons trigger the desired function.
5. Administer a bolus by preselecting a volume of 3 ml.
A bolus is administered, the volume counter counts up.
6. Stop infusion and remove the line.
7. Check the battery with the following steps:
a) Switch the unit off and disconnect from ma
ins power
supply.
b) Switch the unit on. Self-test is performed.
c) Insert a line and let the pump run.
d) Connect, disconnect, and reconnect
the unit to/from mains
power supply (wait approx. 5 s after each step).

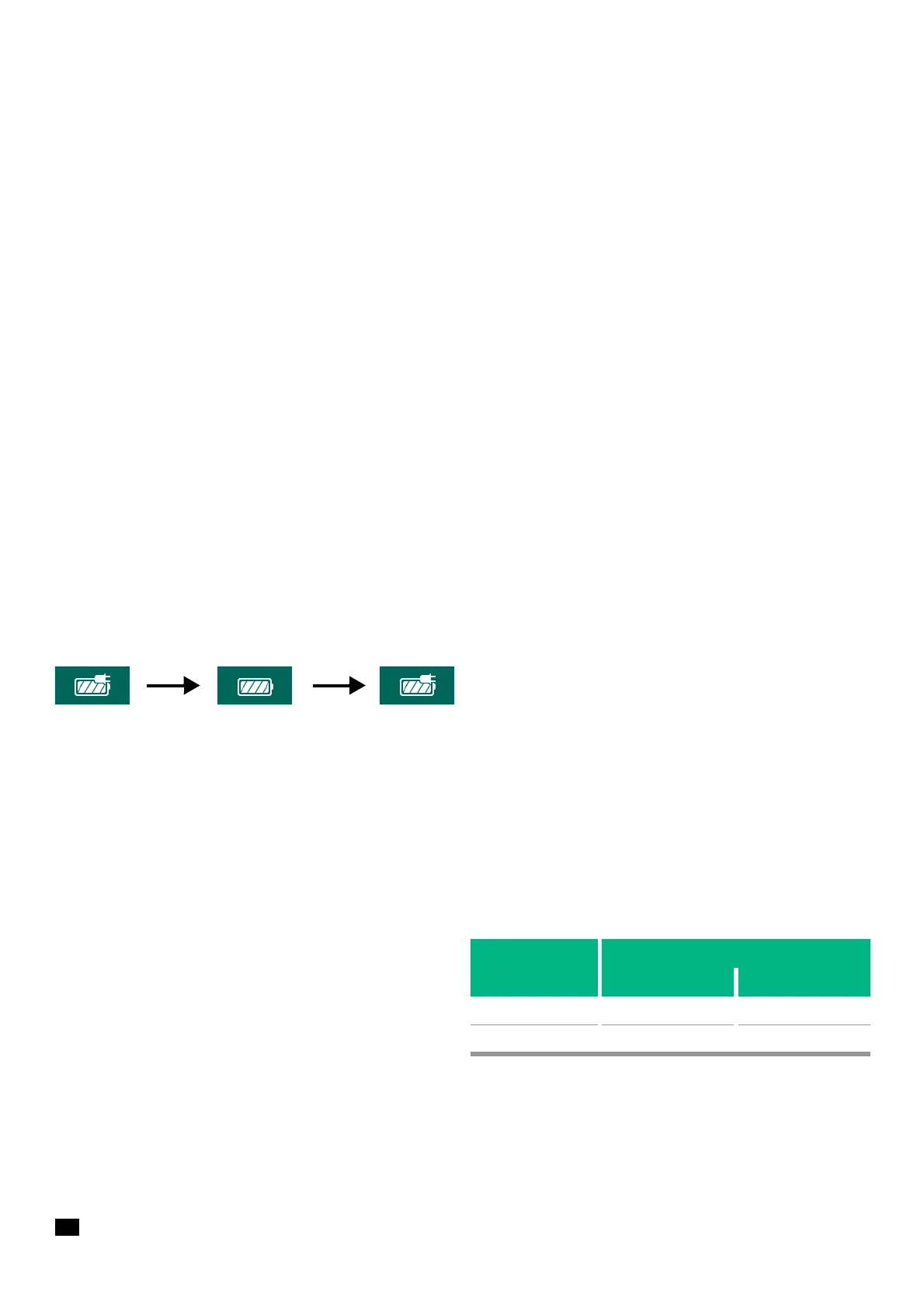

The mains/battery operation symbol changes accordingly.
e) Disconnect the unit from mains p
ower supply and perform
all further tests (infusion etc.) in battery mode. If necessary,
recharge battery first.
Device should be able to perform the entire operational test
in b
attery mode.
8. Connect the pump to staff call and check staff call
under real
conditions by triggering an operating alarm.
As an alternative, connect the staff call cable compact
plus
(part
No. 8718030) to the pump and check the staff call signal at the
wires. Refer to Table 7 - 1.
Connecting wire
Status white and green white and brown
Alarm disconnected connected
Operation connected disconnected
Table 7 - 1
