Commissioning
EL72x1-901x 117Version: 1.9

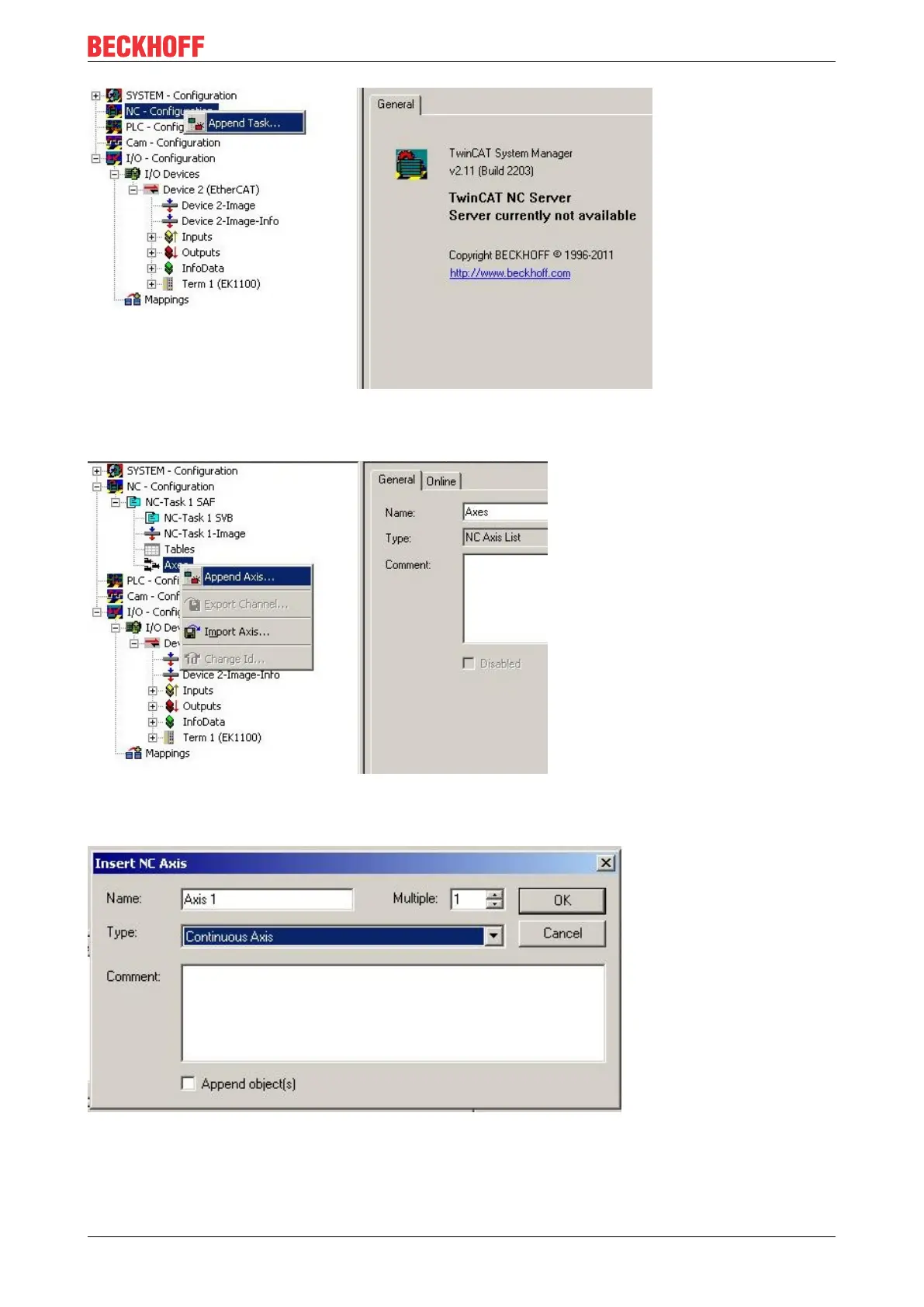

Fig.141: Adding a new task
Right-click on Axes, then add a new axis (see Fig. Adding a new axis).
Fig.142: Adding a new axis
Select Continuous Axis type and confirm with OK (see Fig. Selecting and confirming the axis type).
Fig.143: Selecting and confirming the axis type
Left-click your axis to select it. Under the Settings tab select "Link To..." (see Fig. Linking the axis with
the terminal).
