Commissioning
EL72x1-901x118 Version: 1.9

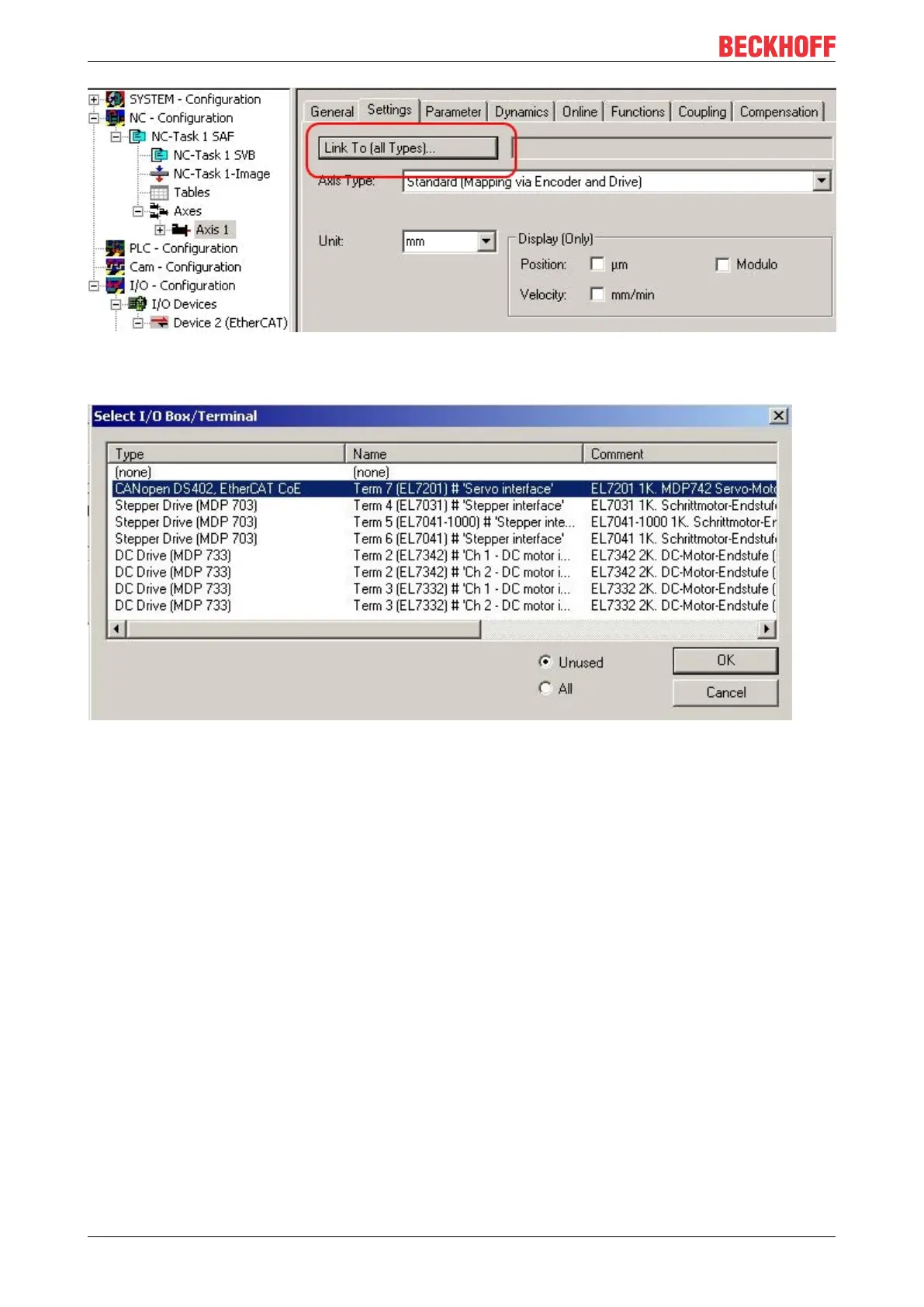

Fig.144: Linking the axis with the terminal
• Select the required terminal (CANopen DS402, EtherCAT CoE) and confirm with OK.
Fig.145: Selecting the right terminal
• All main links between the NC configuration and the terminal are set automatically (see Fig. Automatic
linking of all main variables)
