Commissioning
EL72x1-901x
77
Version: 1.9

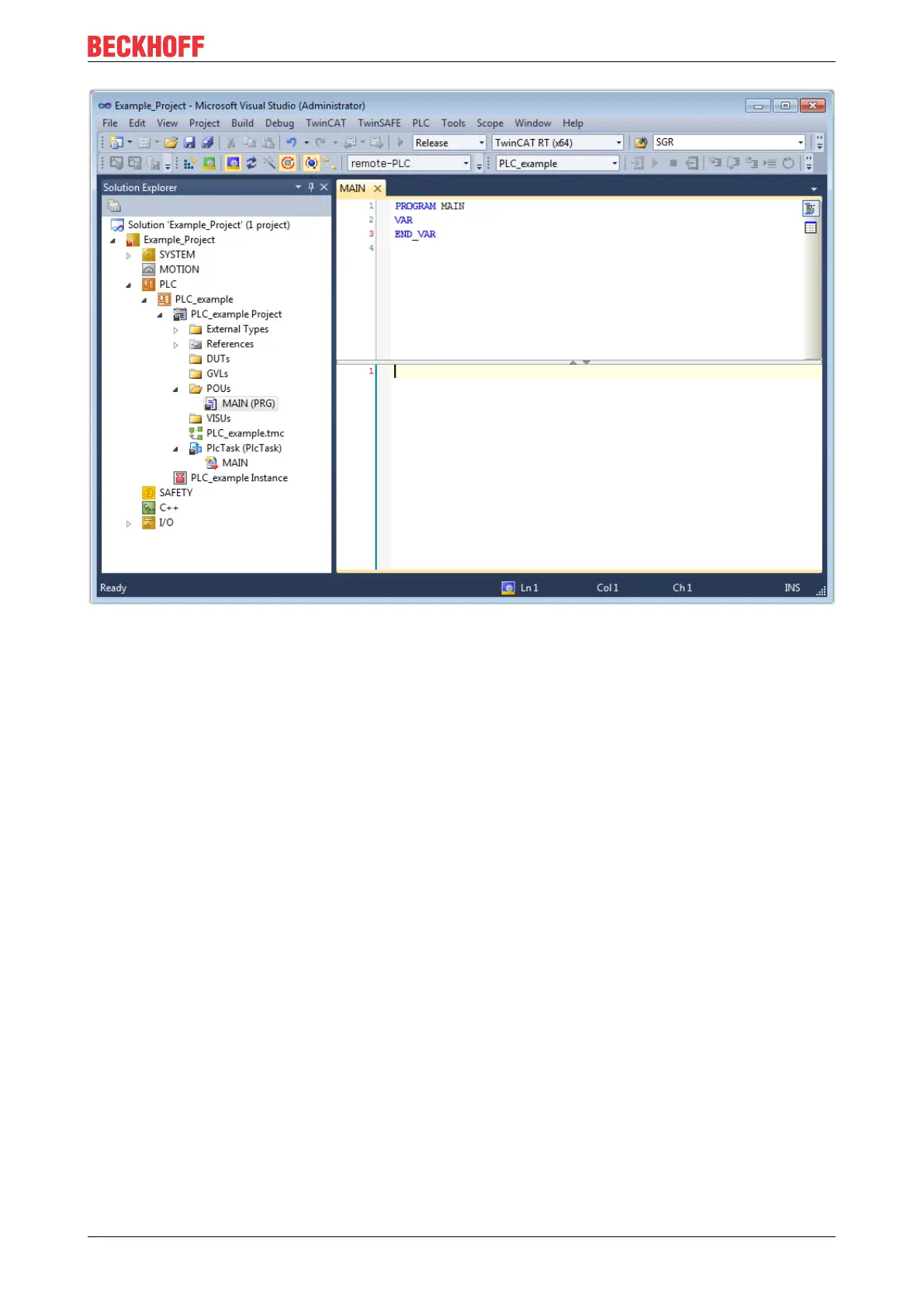

Fig.74: Initial "Main" program of the standard PLC project
To continue, sample variables and a sample program have now been created:
76
78
