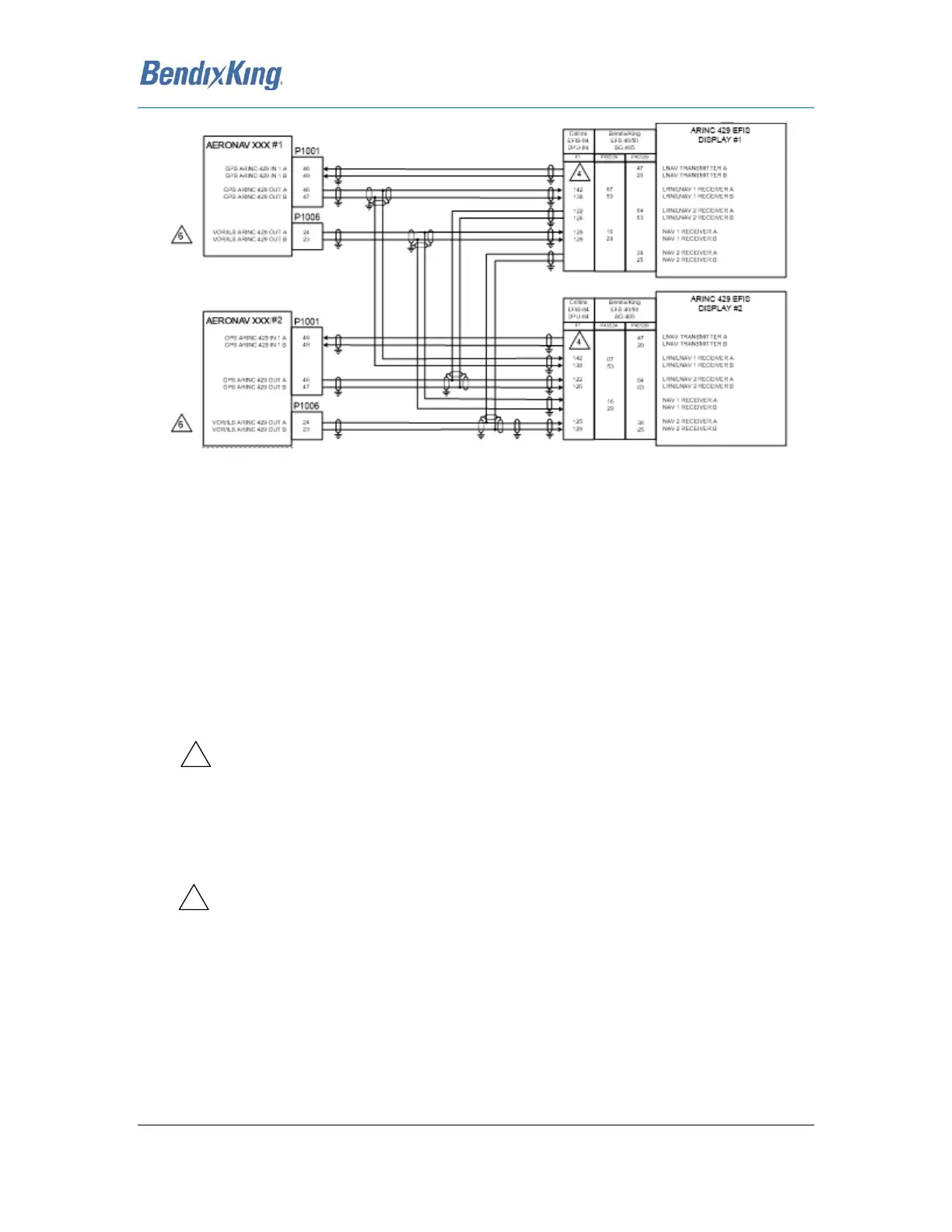

NOTES:
1. ALL WIRES TO BE 24 AWG OR GREATER UNLESS OTHERWISE NOTED.
2. AT AERONAV UNIT, TERMINATE SHIELD GROUNDS TO THE CONNECTOR BACKSHELL
OR USE CARD-EDGE CONNECTOR TO TERMINATE SHIELD GROUNDS TO BACK PLATE –
THE SHIELD LEADS MUST BE LESS THAN 3.0 INCHES. CONNECT OTHER SHIELD
GROUNDS TO AIRCRAFT CHASSIS WITH AS SHORT A CONDUCTOR AS PRACTICAL.
3. IF THE GPS ARINC 429 IN 1 PORT (P1001-48 AND -49) IS ALREADY USED FOR ANOTHER
PURPOSE, THE GPS ARINC 429 IN 2 PORT (P1001-50 AND -51) MAY BE CONNECTED
INSTEAD.
THE DEPICTED COLLINS EFIS-84 INTERFACE DOES NOT SUPPORT SELECTION OF THE
GPS COURSE VIA THE EFIS CONTROL PANEL, A GAD 42 IS REQUIRED FOR GPS
SELECTED COURSE.
5. REFER TO MANUFACTURER’S DOCUMENTATION FOR COMPLETE PINOUT AND
INTERCONNECT INFORMATION. PINOUTS OF OTHER UNITS SHOWN FOR REFERENCE
ONLY.
6. NOT APPLICABLE TO AERONAV 880/780
4
6
