BENDIXKing KSN 8 Series - Page 156

89000046-014 KSN 780/8XX/900 AeroNav AML STC Installation Manual for Helicopters
Rev 0 Page D-8
© Honeywell International Inc. Do not copy without express permission of Honeywell.
AERONAV XXX #1
P1001
P1006
GPS ARINC 429 IN 1 A
GPS ARINC 429 IN 1 B
GPS ARINC 429 OUT A
GPS ARINC 429 OUT B
VOR/ILS ARINC 429 O UT A
VOR/ILS ARINC 429 O UT B
48
49
46
47
24
23
AERONAV XXX #2
P1001
P1006
GPS ARINC 429 IN 1 A
GPS ARINC 429 IN 1 B
GPS ARINC 429 OUT A
GPS ARINC 429 OUT B
VOR/ILS ARINC 429 O UT A
VOR/ILS ARINC 429 O UT B
48
49
46
47
24
23
ARINC 429 EFIS
DISPLAY #1
LNA V TRANSMITTER A
LNA V TRANSMITTER B
LRN/LNAV 1 RECEIVER A
LRN/LNAV 1 RECEIVER B
LRN/LNAV 2 RECEIVER A
LRN/LNAV 2 RECEIVER B
NAV 1 RECEIVER A
NAV 1 RECEIVER B
NAV 2 RECEIVER A
NAV 2 RECEIVER B
ARINC 429 EFIS
DISPLAY #2
LNA V TRANSMITTER A
LNA V TRANSMITTER B
LRN/LNAV 1 RECEIVER A
LRN/LNAV 1 RECEIVER B
LRN/LNAV 2 RECEIVER A
LRN/LNAV 2 RECEIVER B
NAV 1 RECEIVER A
NAV 1 RECEIVER B
NAV 2 RECEIVER A
NAV 2 RECEIVER B
NOTES:
1. ALL WIRES TO BE 22 AWG OR GREATER UNLESS OTHERWISE NOTED.
2. WIRE HARNESS OVERBRAID IS NOT SHOWN BUT MAY BE REQUIRED.
3. REFER TO MANUFACTURER’S DOCUMENTATION FOR COMPLETE PINOUT AND INTERCONNECT INFORMATION.
IF RS-232 PORT 1 IS NOT AVAILABLE, USE ANY OTHER AVAILABLE PORT.
IF ARINC 429 PORT 1 IS NOT AVAILABLE, USE ANOTHER AVAILABLE PORT.
NOT APPLICABLE FOR AERONAV 880/780
4
4
4
5
5
5

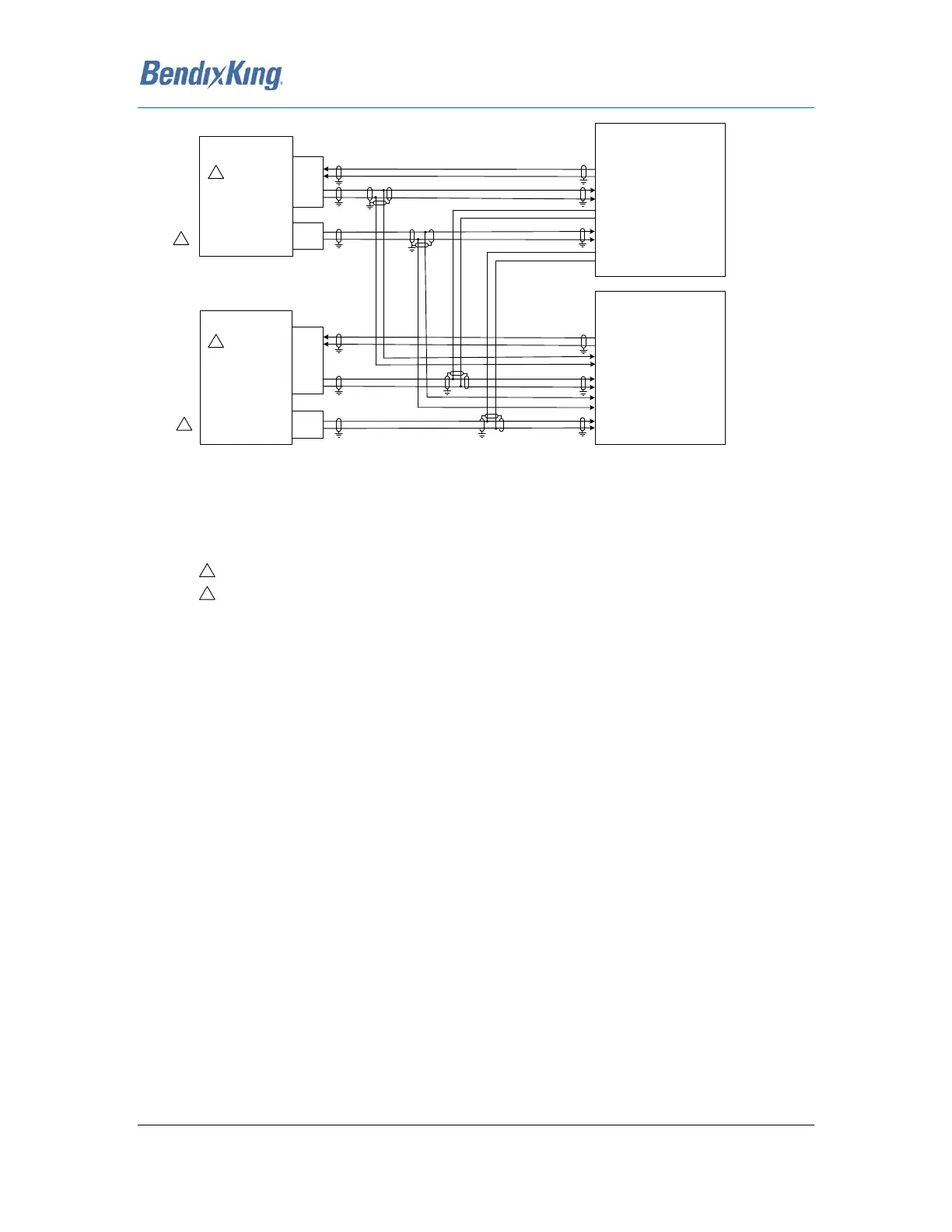

Figure D - 5: Generic EFIS Interconnect
