Bentel Security KYO 4 M Installation Manual

29
®®
Section 2 - Installation

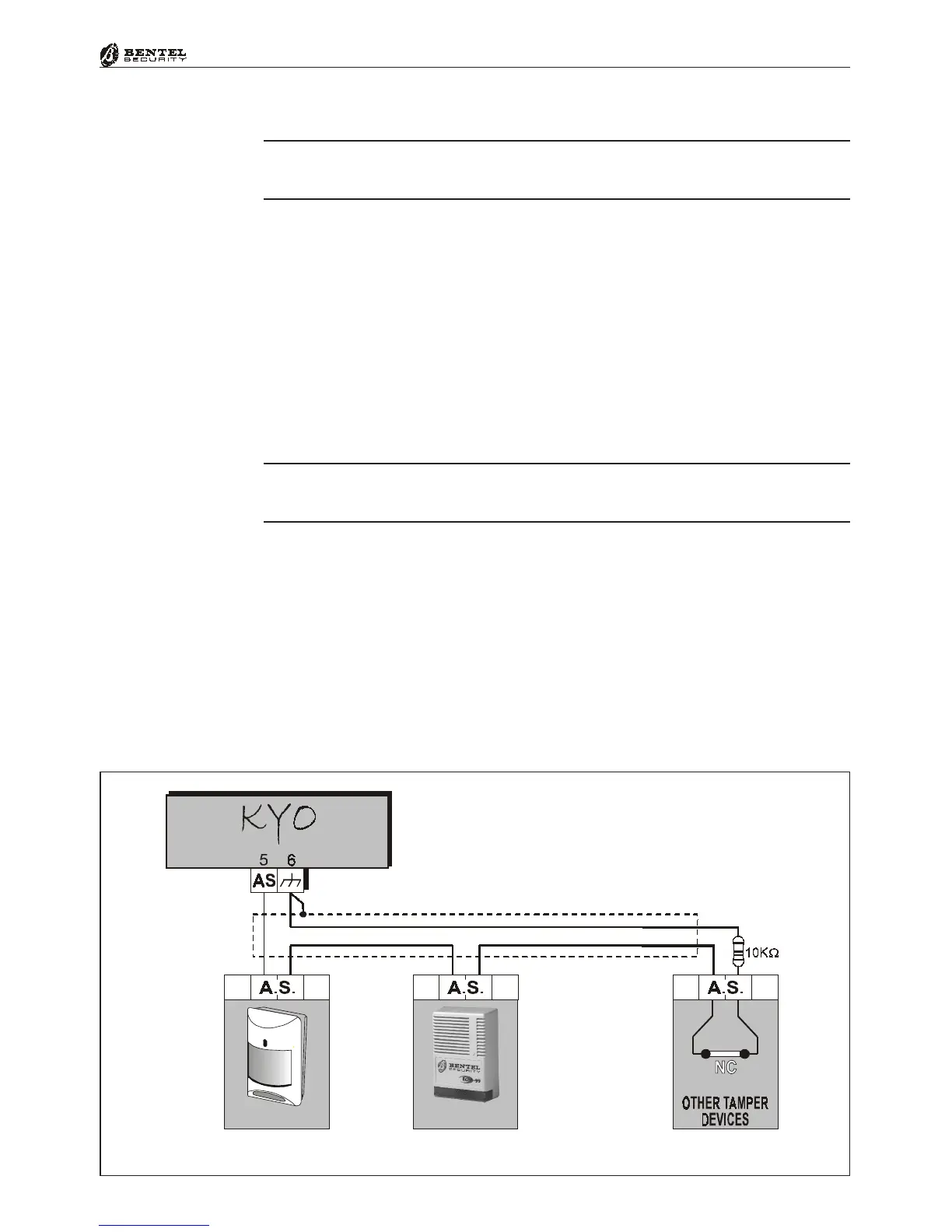

Figure 2.12 - Connecting the 24h Tamper Line
SIRENDETECTOR
Connecting the Tamper Line
GG
GG
G - The Tamper Line terminals [AS] are not present on KYO16D Control
Panel.
To make a 24 H Tamper Line on KYO16D Control Panel:
1. Une an alarm zone
2. Program this zone as “24 H”
3. Program this zone as “Balanced 10 K”
4. Assign this zone to one or more partitions
The Control panel (except KYO16D) has a 24h 10K Balanced Tamper line (Termi-
nals 5 [AS] and 6 [
MM
MM
M]). The Tamper terminals of the system peripherals must be
connected in series to these terminals. The wiring diagram in Figure 2.12 illustrates a
typical connection.
10 K
ΩΩ
ΩΩ
Ω Balance resistor must be connected to the last device, as shown in
Figure 2.12.
