32 Multifunction Control Panel

®®

‘Double’ line type (only for KYO16D)

The KYO16D has 6 zones connections. Each connection can be programmed

“DOUBLE” or “DOUBLE with EOL” to reach a maximum of 12 zones.

A “Double” or “Double with EOL” connection can detect 2 alarm and a single

tamper.

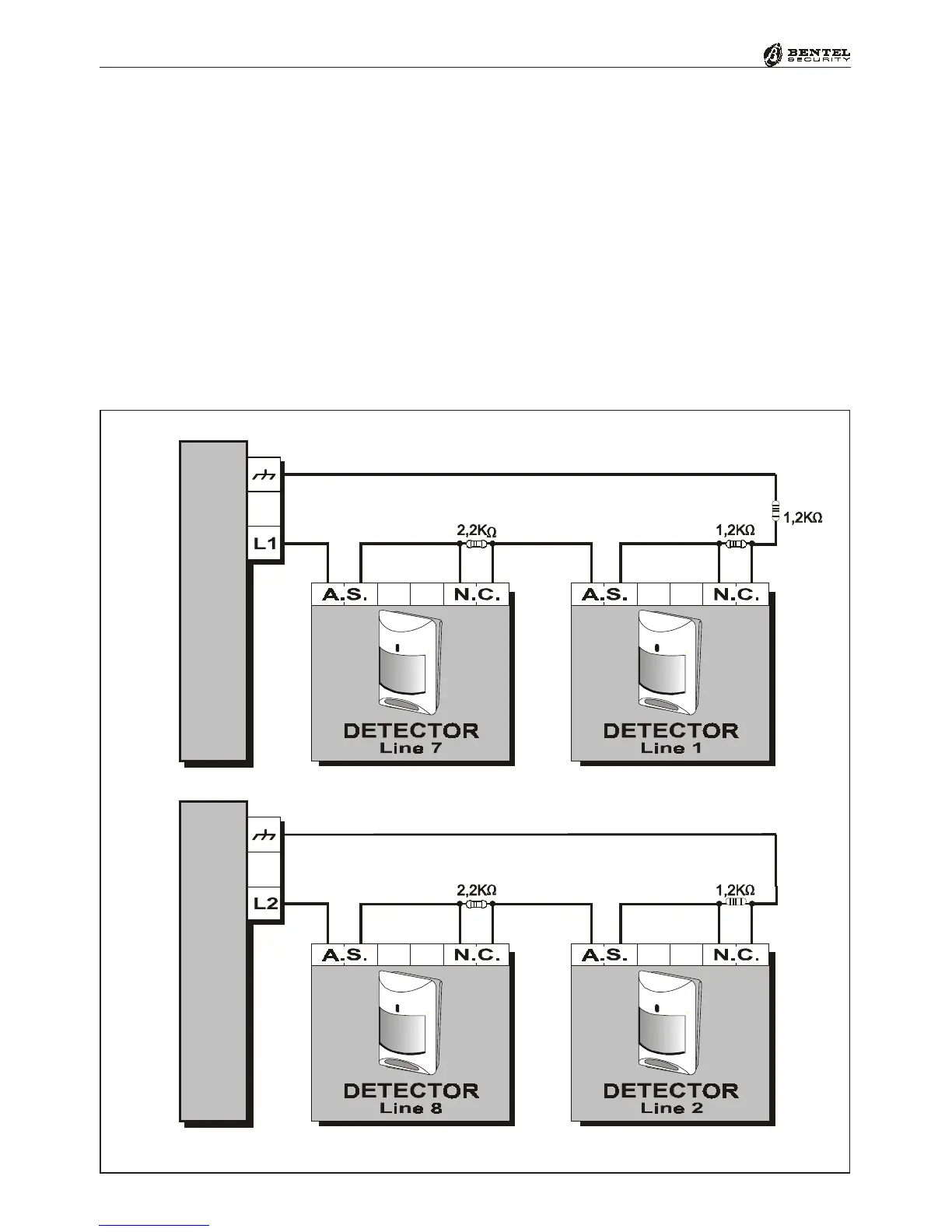

Fig. 2.16a shown the “Double with EOL” connection and Fig. 2.16b shown the

“Double” connection

KYO

16D

KYO

16D

EOL

Fig. 2.16 - Connecting the “Double Line”
