52 Multifunction Control Panel
®®
This section describes the Outputs page (see Figure 3.8).
The CEI 79-2 approval applies only if Outputs which activate Alarm devices
such as Sirens, are not Bistable.
Outputs Table
No. - This column shows the OC Output identifier number that will be used
instead of the Output label (Description), in some parts of the application.
Position/Placement - This column shows the non-editable label of the hardware
component the OC Output is assigned to.
Ter. - This corresponds to the terminal identifier on the PCB.
Description - This field is for the keypad label (maximum 16 characters). The
Application will use the label as the OC Output identifier.
To program the zone parameters of an Output:
1. select the Output (click to highlight);
2. program the following parameters for the selected Output.
Attributes
This section will allow you to select the status of the Outputs during standby
status: NO (Normally Open) or NC (Normally Closed).
Outputs Page

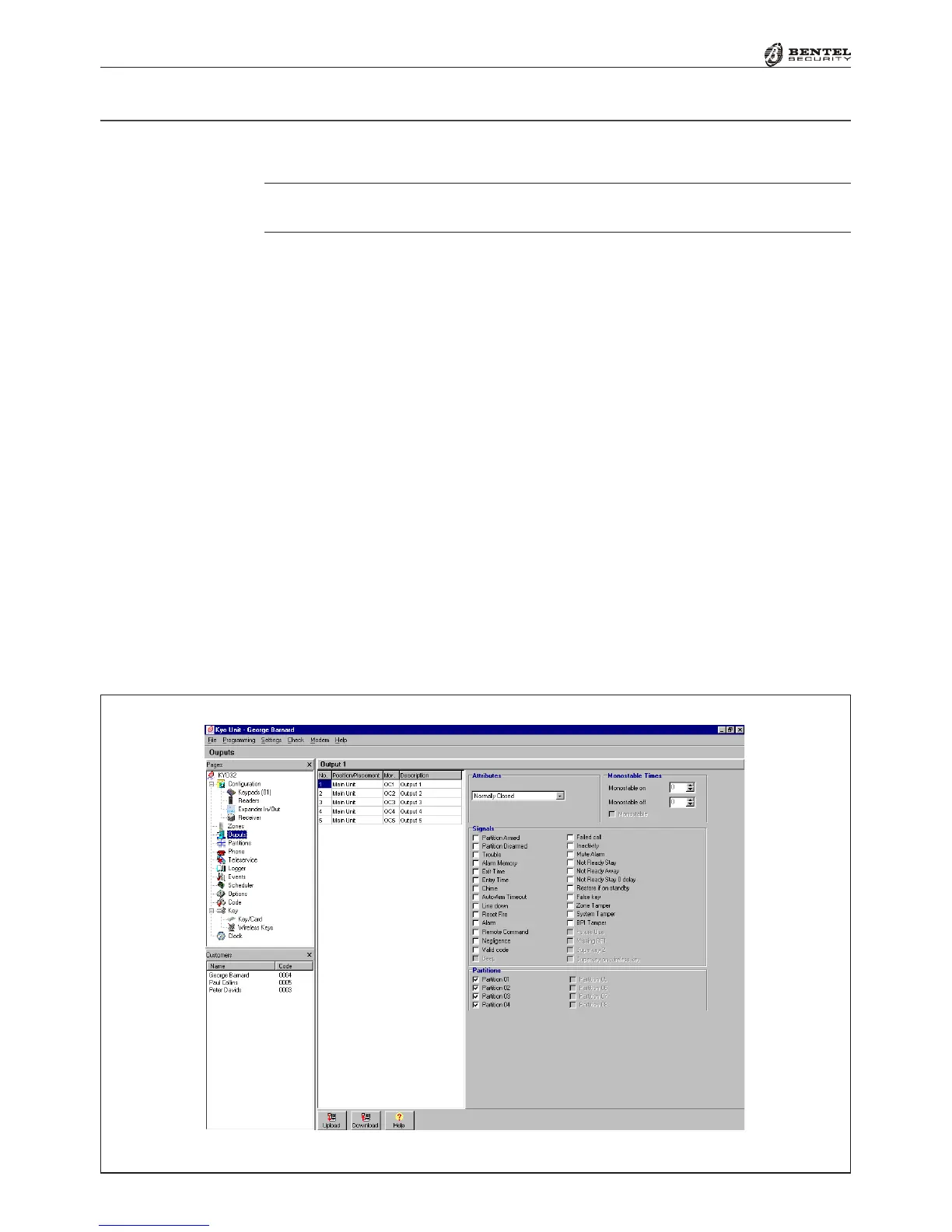

Figure 3.8 - Outputs Page
To Next Page
