Section 3 - Programming from PC
2. Enter the Installer Code PIN (refer to ’Code Page’).
3. Send the data to the Control panel, as follows:
a) Select Programming Download — to send all the programmed
parameters to the Control panel.
b) Click the open page Download button — to send the open page param-
eters to the Control panel.
c) Using the right mouse button, click anywhere inside the ‘Pages’ section,
then select ‘Download’ from the pop-up window to send the parameters
relative to the selected (
) pages.
4. To upload and view Control panel parameters proceed as follows:
a) Select Programming Upload to view all the parameters stored in
the Control memory.
b) Select Upload to view the parameters relative to the current page.
c) Using the right mouse button, click anywhere inside the ‘Pages’ section,
then select ‘Upload’ from the pop-up window to view the parameters rela-
tive to the selected (
) pages.

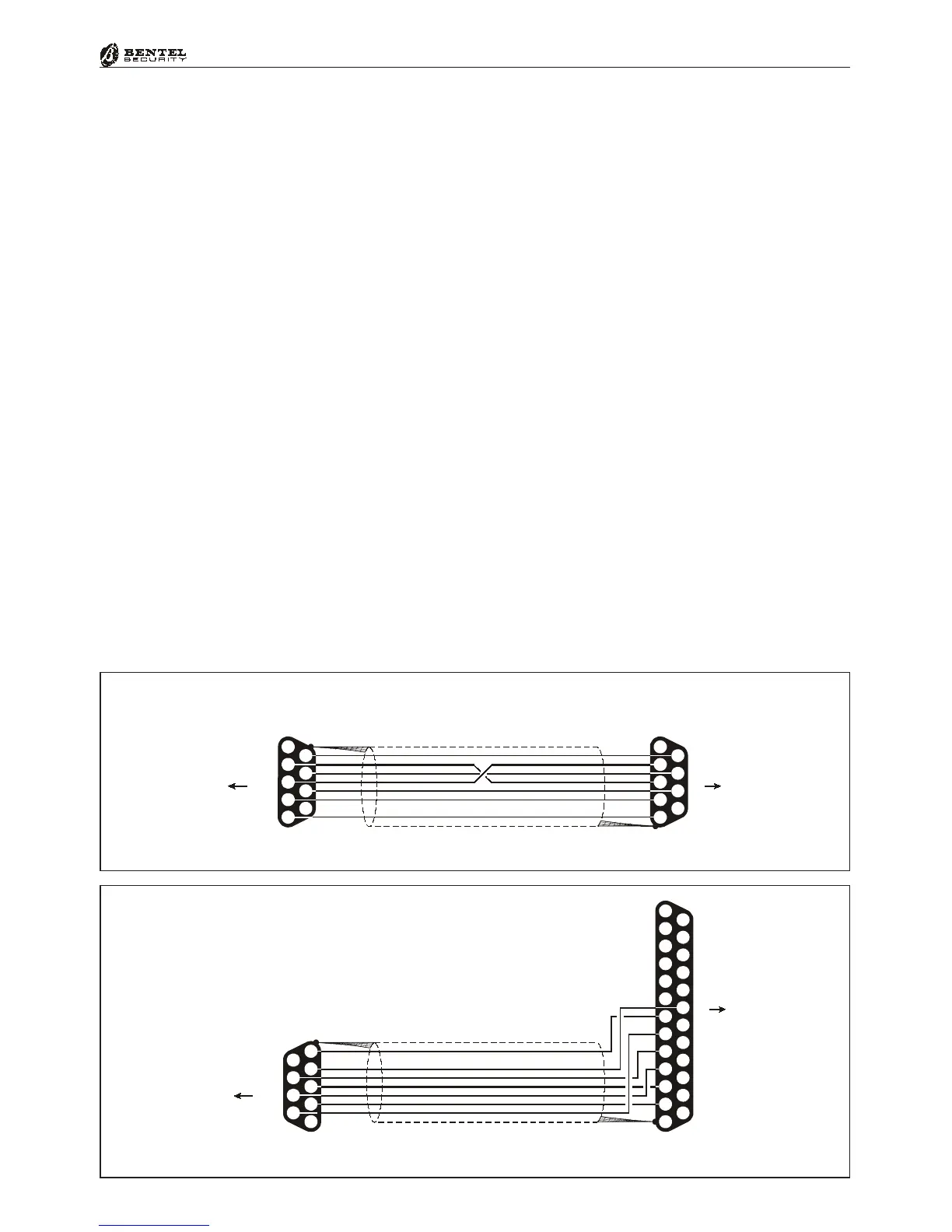

Figure 3.20 - Serial cable with a DB9 female connector and a DB25 female connector
Figure 3.19 - Serial cable with two DB9 female connectors
5 5
4 4
9 9
8 8
7 7
6 6
3 3
2 2
1 1
DB9 female
connector
7 wire shielded
cable
DB9 female
connector
To Control
Panel
To PC
5
4
6
5
4
3
2
1
9
18
8
19
17
16
15
14
7
20
21
22
23
24
25
6
3
7
2
8
9
10
11
12
13
1
DB9 female
connector
7 wire shielded
cable
DB25 female
connector
To Control
Panel
To PC
To Next Page
