Installation and Adjustment of the Cap Support Wing
Assembly

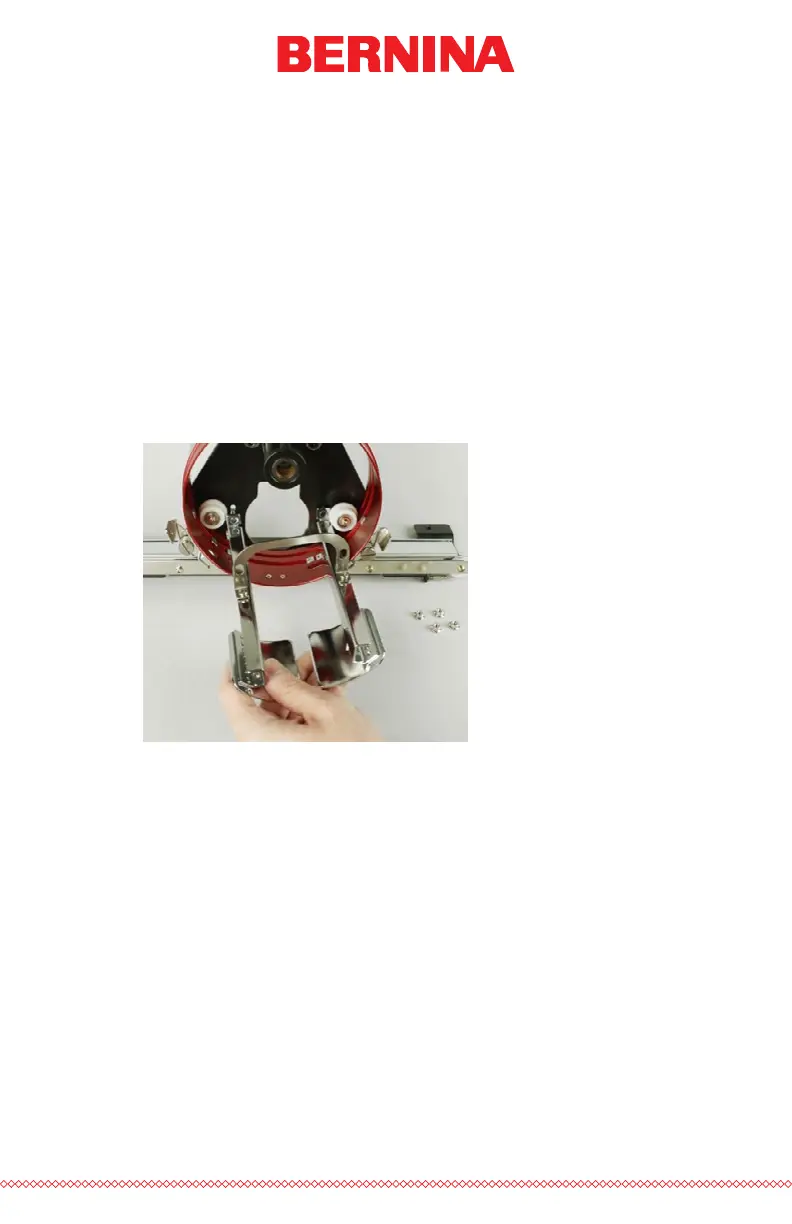

1. Remove the driver cylinder from the machine and lay it upside
down on a at surface.
2. Remove the 4 nuts from the threaded standoffs of the cap support
wing assembly.
3. Make sure the 2 phillips head screws on the connecting bracket are
loose.
4. Install the cap support assembly on the driver cylinder. Slightly pivot
the assembly left and then right during the installation to ease each
post past the white rollers.
