Installation
BEUMER stretch hood® S
40 BA-6090103-EN
19.08.09

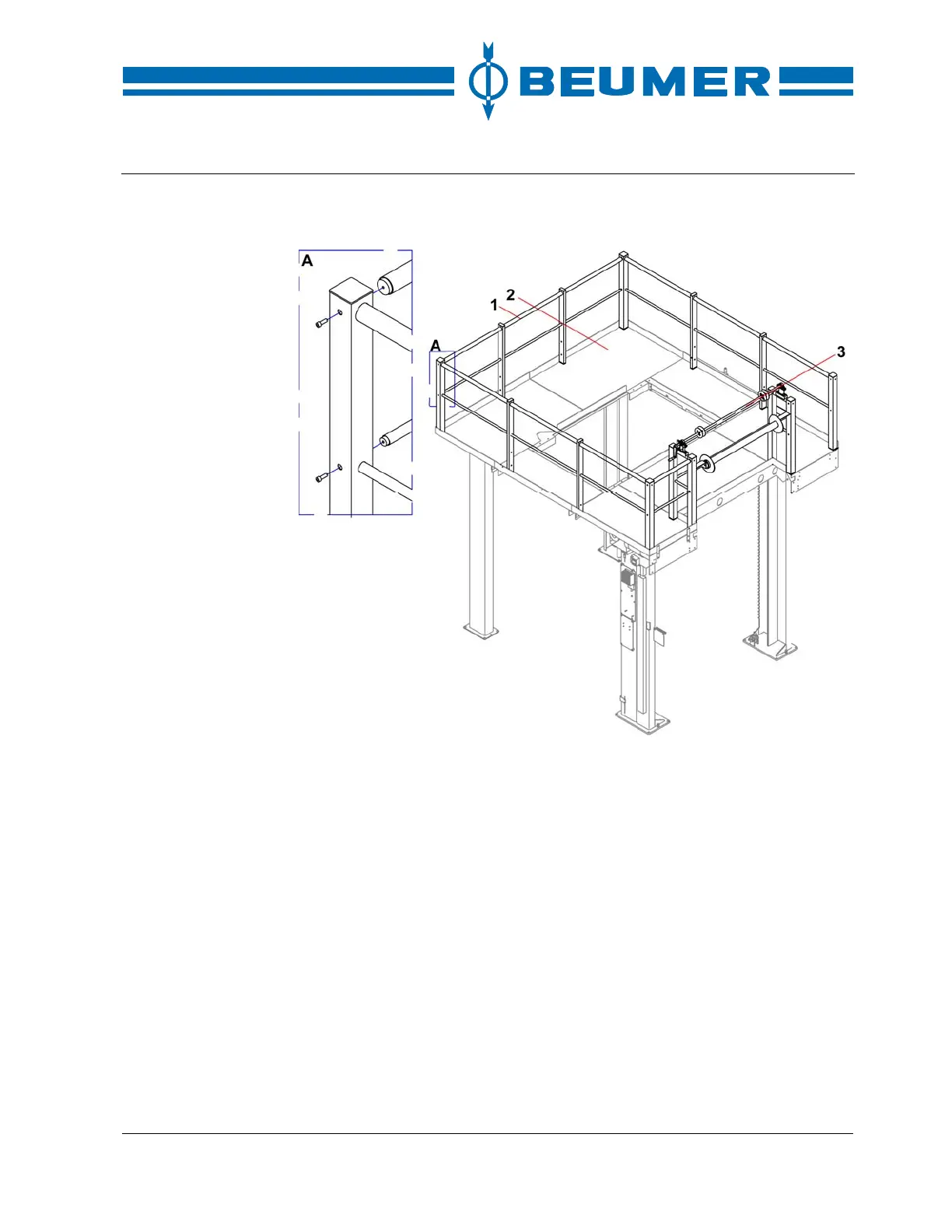

The railing is supplied in individual components. These components of the railing
are connected by Allen screws.
1 Railing
2 Platform
3 Idler with crank (option)
How to mount the
railing
1. Place the railing parts on the platform and bolt them to the platform.
2. Bolt the individual components of the railing with one another at the corne
posts.
3. Mount the idler or the idler with the crank, if available.
