7.2 Identification of entry
7.2.1 Base actuator
Electric Actuators Series ICON2000/ICON2000AD are equipped with
4 entries (3 are standard the fourth is supplied when requested).

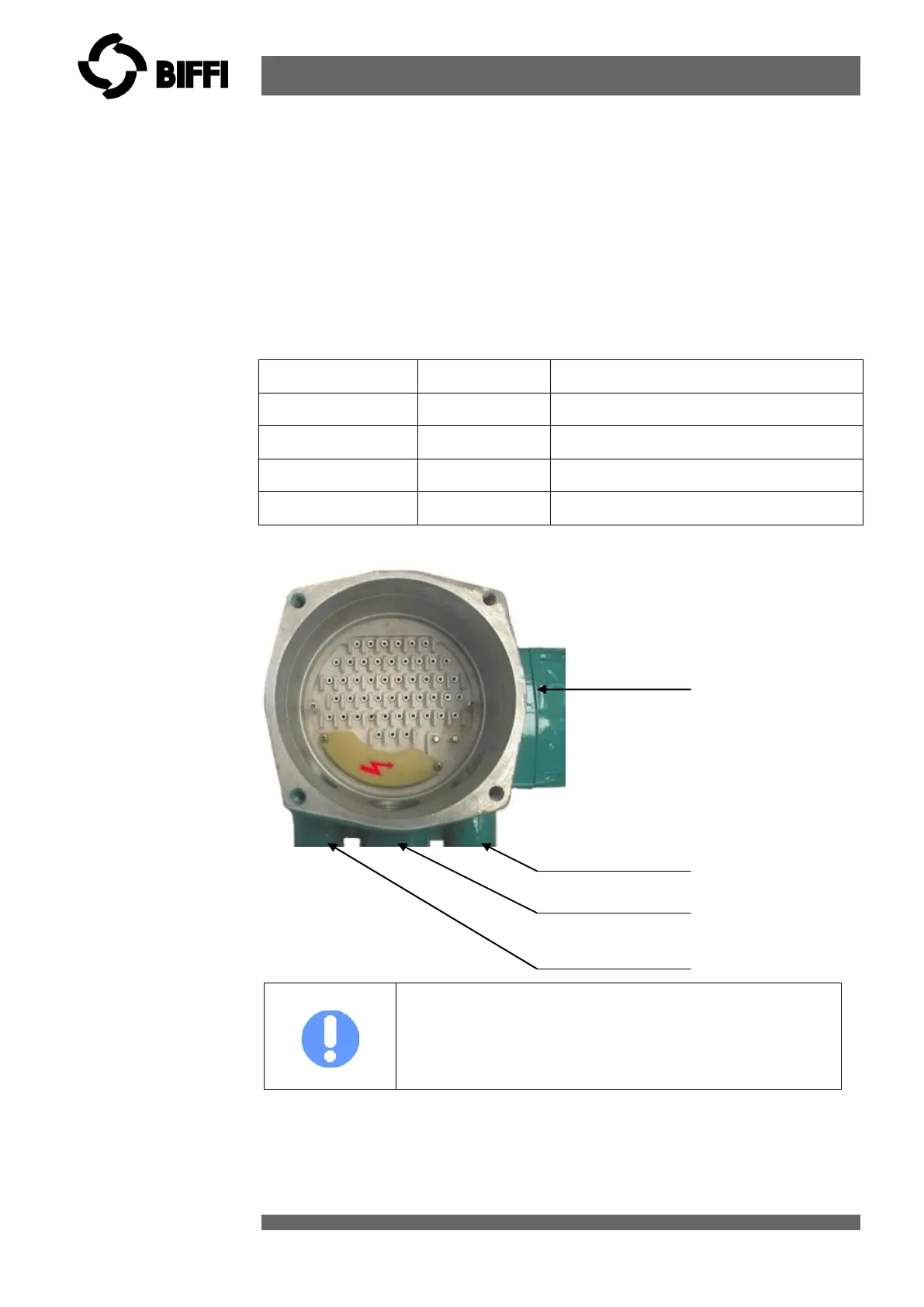

With reference to the attached picture, the thread form/size for each entry is as
follows:
Entry
NPT size
Alternative (Metric size ISO 965)
1
1”
M32x1,5
2
1-1/2”
M40x1,5
3
1”
M32x1,5
4 (optional)
¾”
M25x1,5
Important
When alternative entries are used, indication of the
dimensions is imprinted directly on the housing close
to the entry.
4
3
2
1
