“ICON2000”
instruction and operating manual
Section 618/1 chapt. C
YES
NO
Section 618/1
4. Mounting the actuator onto the valve
Lubricate the valve stem.
Thoroughly clean the coupling surfaces of the valve and actuator flanges, degreasing them
carefully since torque is transmitted by friction.

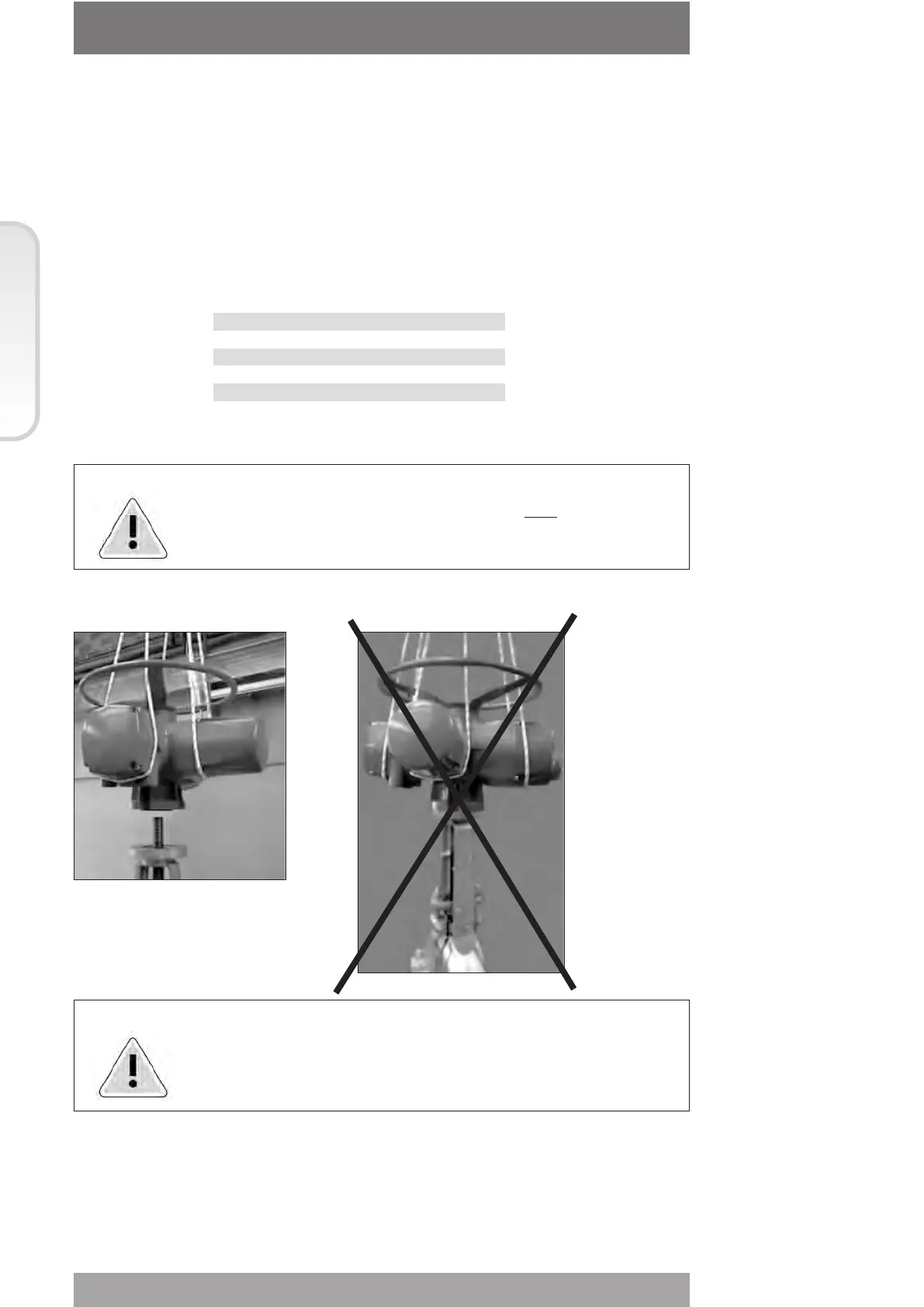

Lift the actuator with slings suitable for its weight.
Size Max. weight
010 32 Kg
020 38 Kg
030 46 Kg
040 56 Kg
050 73 Kg
Warning: Never lift the valve/actuator assembly without
securing slings to both the valve and the actuator.
Warning: Never use the handwheel to lift the actuator.
The actuator will operate satisfactorily in any position. When mounted upside down, the end
of the stem cover tube should be drilled Ø5 mm to avoid build up of service fluid or
rainwater.
