Electric Actuator ICON2000/ICON2000AD
ADDENDUM A to INSTRUCTION HANDBOOK MAN 618
© Copyright by BIFFI Italia. All right reserved. Page
7.2.3 Base actuator with extensions [B] or [C] on the terminal board
compartment

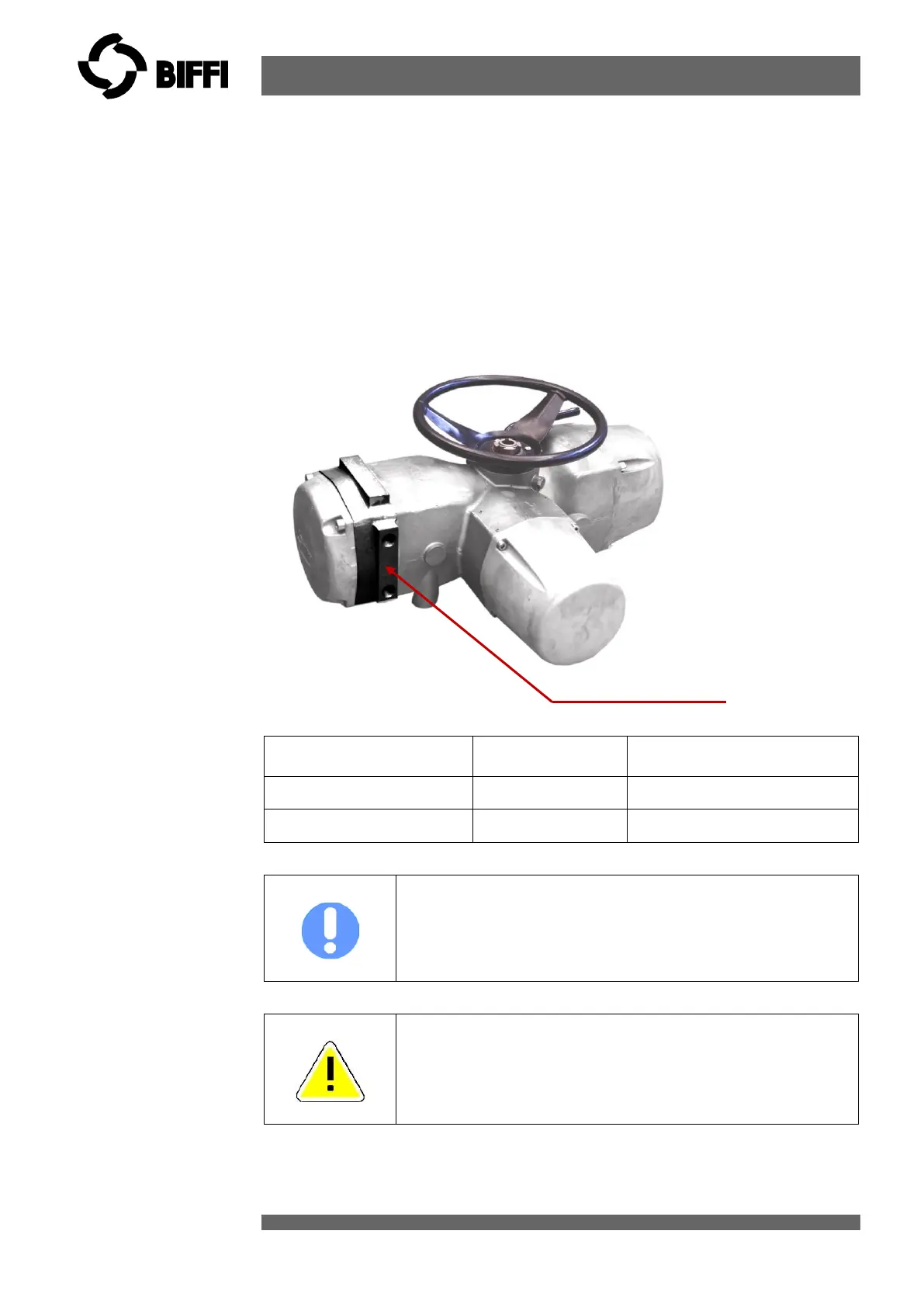

The extensions [B] or [C] provide up to 9 additional entries for cable or conduit
connection. With reference to the attached picture, the thread form/size for the
entries is as follows:
Entries from A to K
Option 1
Standard entries
Option 2
Alternative entries ( ISO 965)
A, B, C, D, E, F, G, H, K
When alternative entries are used, indication of the
dimensions is imprinted directly on the housing close to
the entry.
Unused entries may remain unmachined or must be
plugged with a certified plug suitable for the area.
To Next Page
