Electric Actuator ICON2000/ICON2000AD
ADDENDUM B to INSTRUCTION HANDBOOK MAN 618
© Copyright by BIFFI Italia. All right reserved. Page
When alternative entries are used, indication of the
dimensions is imprinted directly on the housing close
to the entry.
Unused entries may remain unmachined or must be
plugged with a certified plug suitable for the area.
7.2.2 Base actuator with extension [A] on the control compartment
The extension [A] provide an additional entry for cable or conduit connection
or for a connection of an external ATEX certified apparatus.

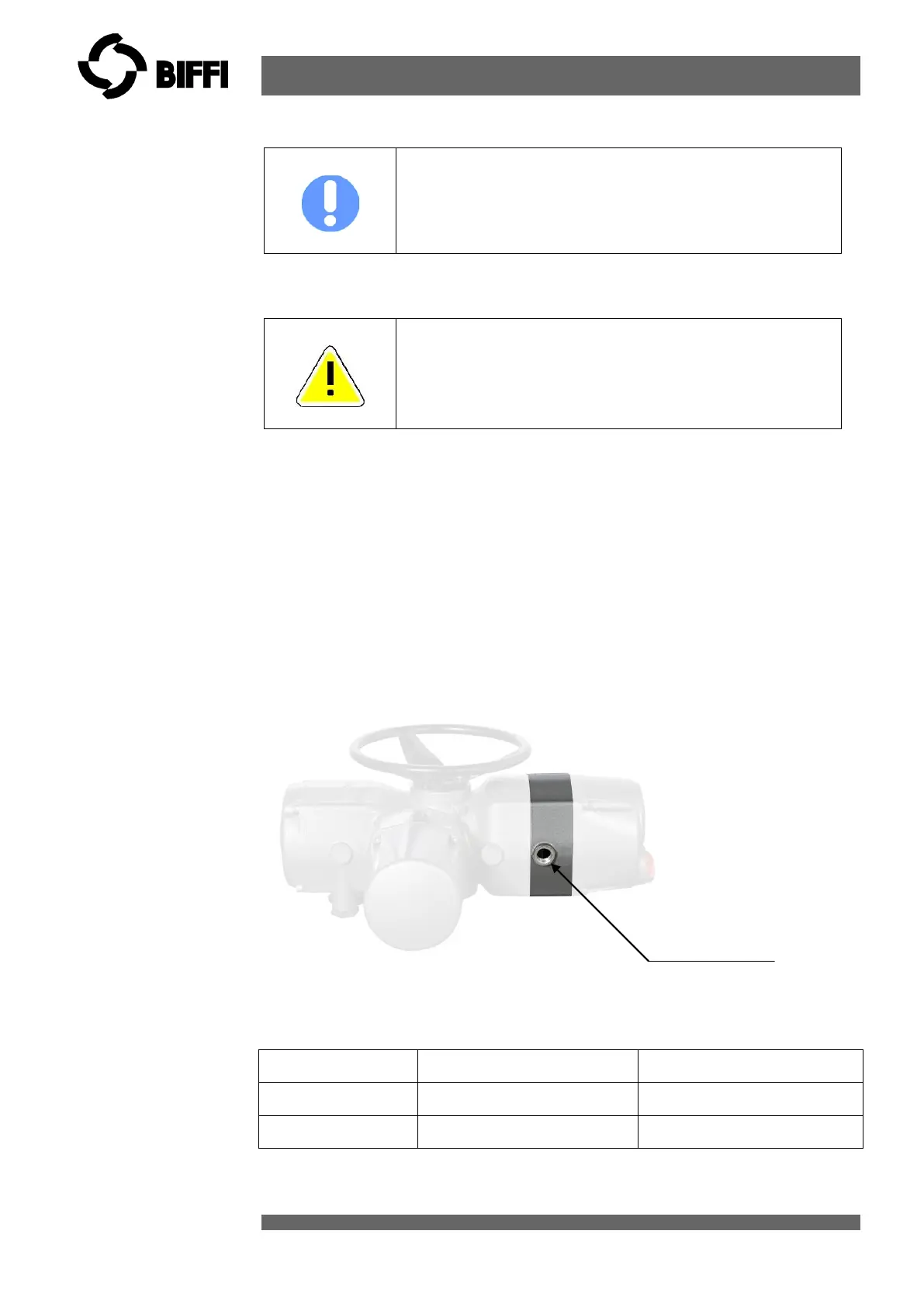

With reference to the attached picture, the thread form/size for the entry is as
follows:
To Next Page
