“ICON 2000v4"
instruction and operating manual
© Copyright by BIFFI Italia. All right reserved. Section 618/42 Page 8
Contents may change without notice

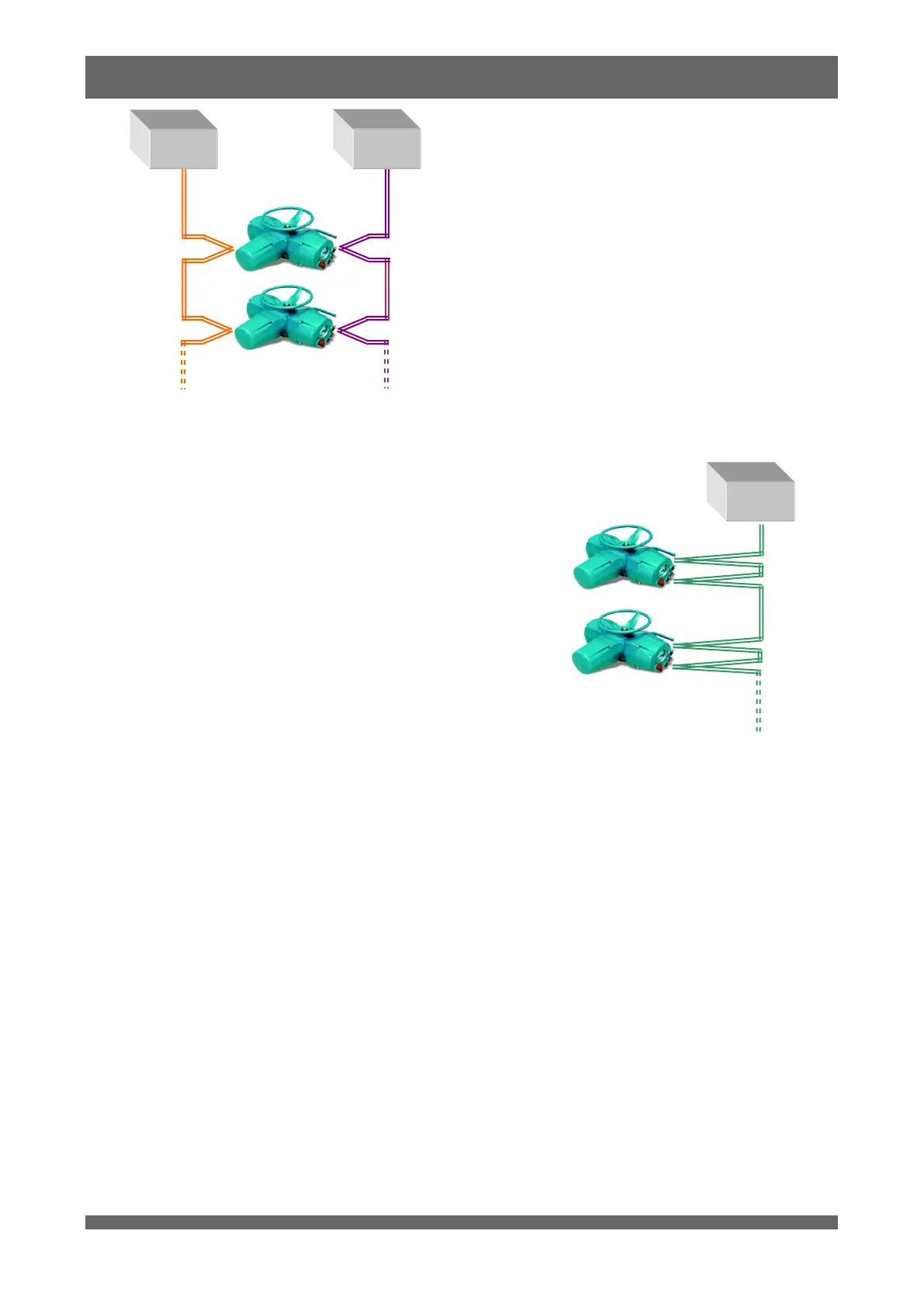

In this lay-out the two interfaces may have the same
address because the two interfaces are on different
channels.
A synchronisation method must be active between
the Master stations to take the information from the
Active Slave.
In this lay-out the two interfaces shall have different
addresses because the two interfaces are on the same channel.
The very flexible redundancy strategy implemented in the ICON2000v4_DPV1 module allows also
different lay-out that the Master station can drive.
The bus terminations can be switched on each data lines by means of two links, configurable via
local operator interface.
The figure below shows the wiring necessary in case of redundant slave. The termination must be
linked to the data lines only if the actuator is at the beginning or at the end of the bus segment.
