Icon 2000 v4 Profibus EDD for AMS Manual
A
AA
A
© Copyright by BIFFI Italia. All right reserved 234/Rev.1 Page 24

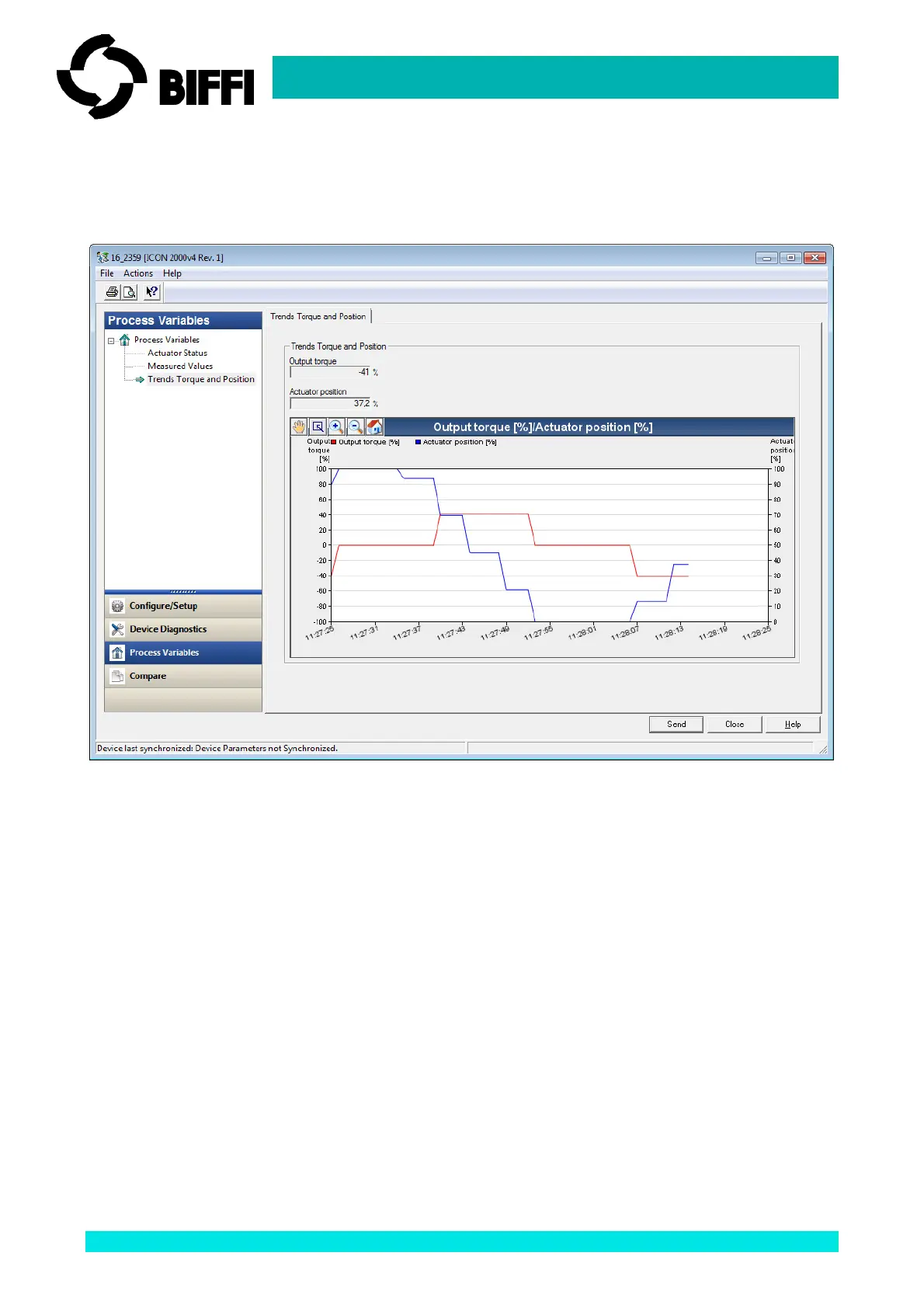

6.3 Trends Torque & Position
This window shows in a single graph the trend curve of torque and position of Icon 2000 v4 actuator.
Using buttons positioned over the graph, operations like zoom, scroll and return to the standard display can
be done.
