Vital Signs Monitor User’s Manual
Chapter 8-2
Inserting the sampling tube into the receptacle automatically starts the
sampling pump. Removal of the sampling tube turns the sample pump
To remove the sampling tube from the sampling tube receptacle, press
down on the locking tab and pull the sampling tube from the receptacle.
3. If the sampling pump fails to turn on, or runs intermittently, perform a “Zero”
4. Ensure that the CO
2
module exhaust tube vents gases away from the module
5. Wait for the CO
2
module to warm up. The monitor will display the “Sensor
Warm Up” message for approximately 1minute while the module warms up
to operating temperature. The message disappears when the module is ready
6. Apply Microstream airway adapter or cannula.
1
）

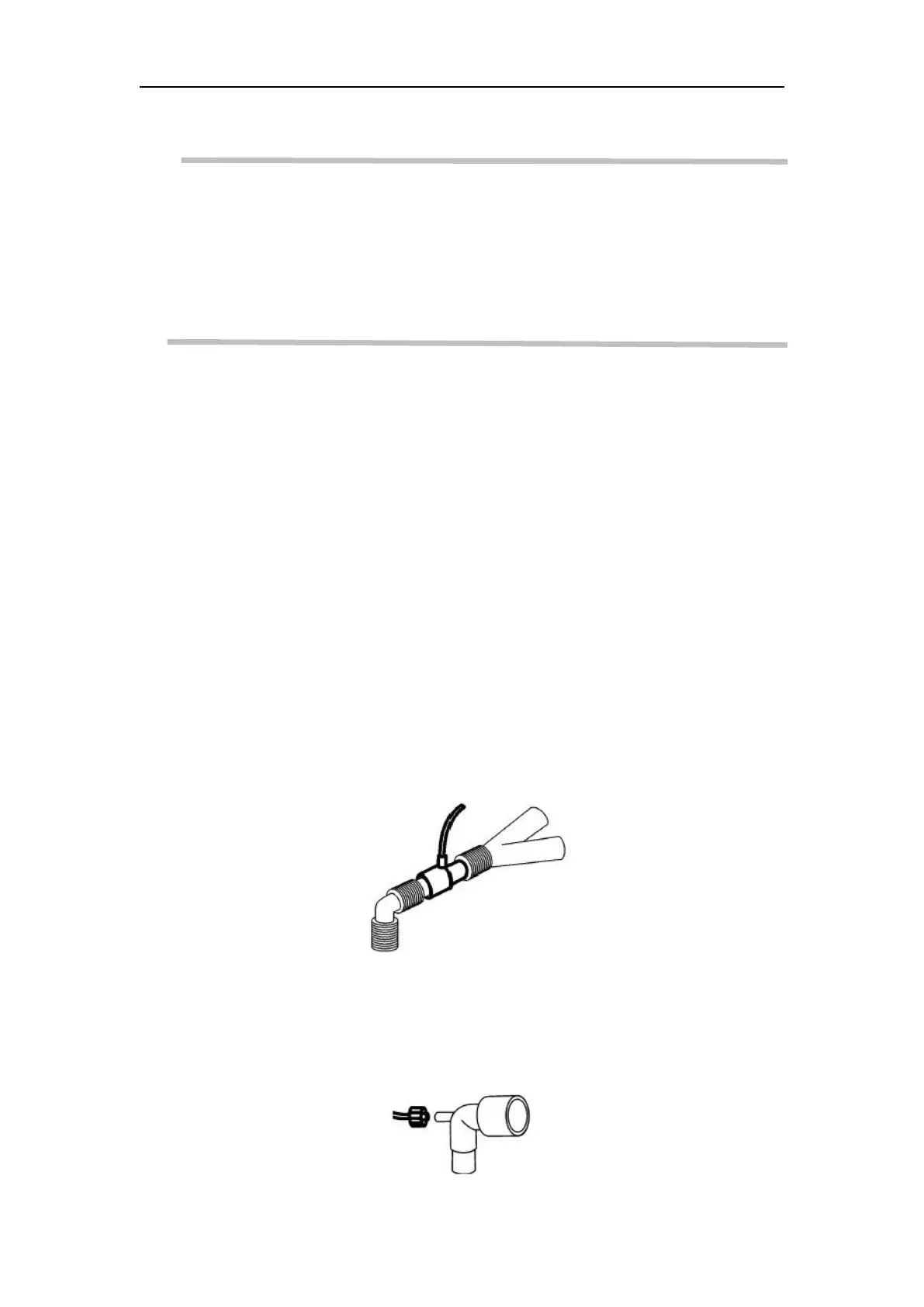

For intubated patients requiring an airway adapter: Install the airway adapter
at the proximal end of the circuit between the elbow and the ventilator Y
section. Shown as follows:
2
）
For intubated patients with an integrated airway adapter in the breathing
circuit: Connect the male connector on the straight sample line to the female
port on the airway adapter. Shown as follows:
