Biolight V6 User Manual

Vital Signs Monitor User’s Manual
Chapter 4-2
4.2 Screen Layout
The monitor has configured with a color TFT LCD to display parameters and
waves of patient’s SpO
2
, NIBP and CO
2
. The following figures are screens of the
monitor.

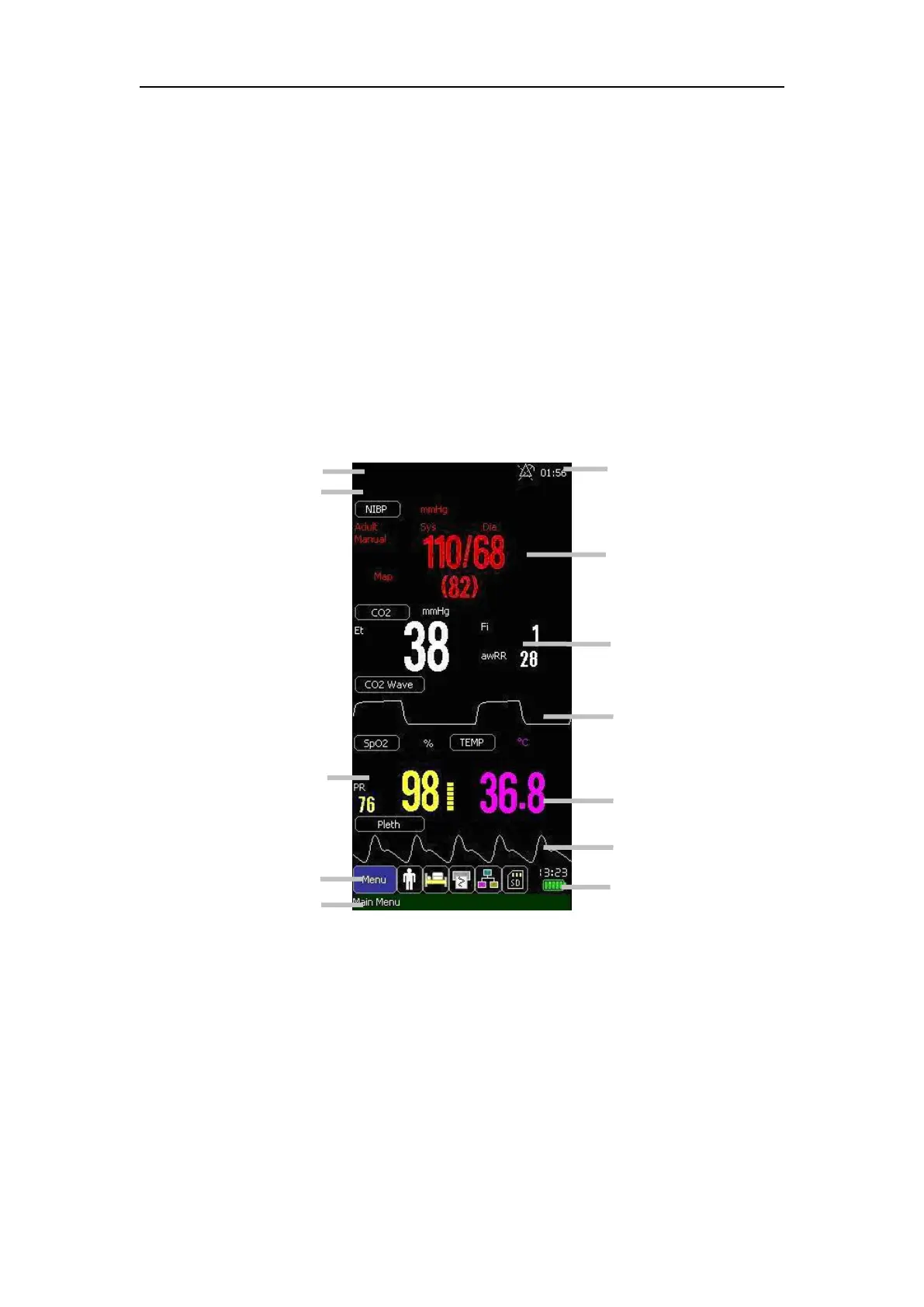

4.2.1 Standard Screen
Parameters displayed under the screen are SpO
2
, CO
2
, SpO
2,
and TEMP
.
Waves
displayed under the screen are SpO
2
and CO
2
.
1. Alarm Pausing/Silence Area
It is to display alarm pausing icon and time or silence icon.
2. NIBP Parameter Area
It is to display NIBP parameters. Select “NIBP” to enter
【
NIBP Setup
】
menu.
3. CO
2
Parameter Area
It is to display CO
2
parameters. Select “CO
2
” to enter【CO
2
Setup】menu.
4. CO
2
Wave Area
It is to display CO
2
wave. Select “CO
2
Wave” to enter【CO
2
Wave Setup】menu.
2
3
4
5
6
7
8
1
11
12
9
10
