Prerequisites:
Review the Tubing Cassette Diagram above to learn the names of the
components.
Move the
Pump Cover away from the pump to its OFF position.
Release the pump’s stainless steel plate. It will hang loosely from the pump.
1. Slide the Center Holder into its slot on the right side of the pump. A tab on the
back plate of the center holder fits into a notch.

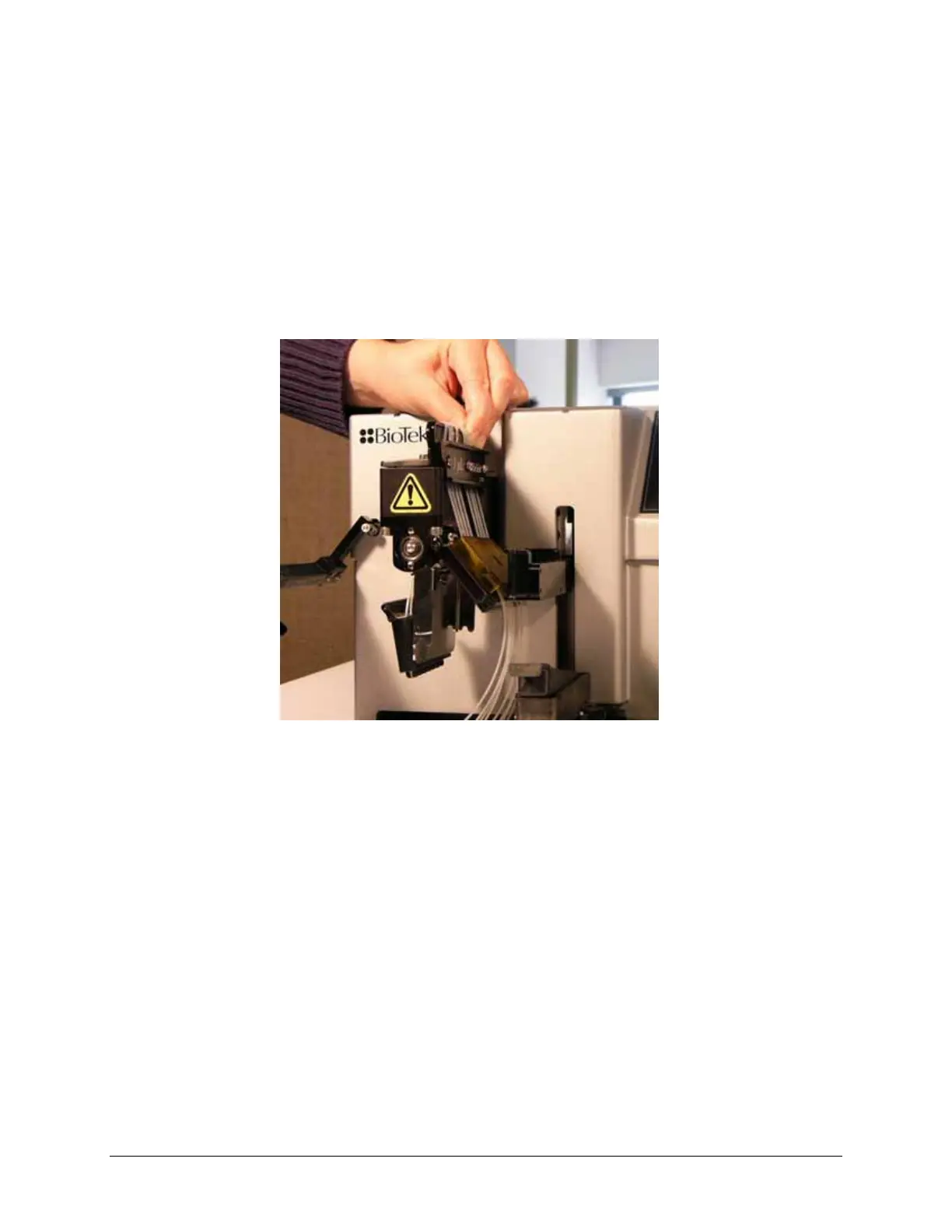

Figure 5: Slide the Center Holder into place.
2. Slide the Tip Holder into the dispense arm. Do not twist the tubing. The Tip
Holder’s front plate with the BioTek logo faces the Center Holder. Make sure
the tip holder is level and snapped into place.
