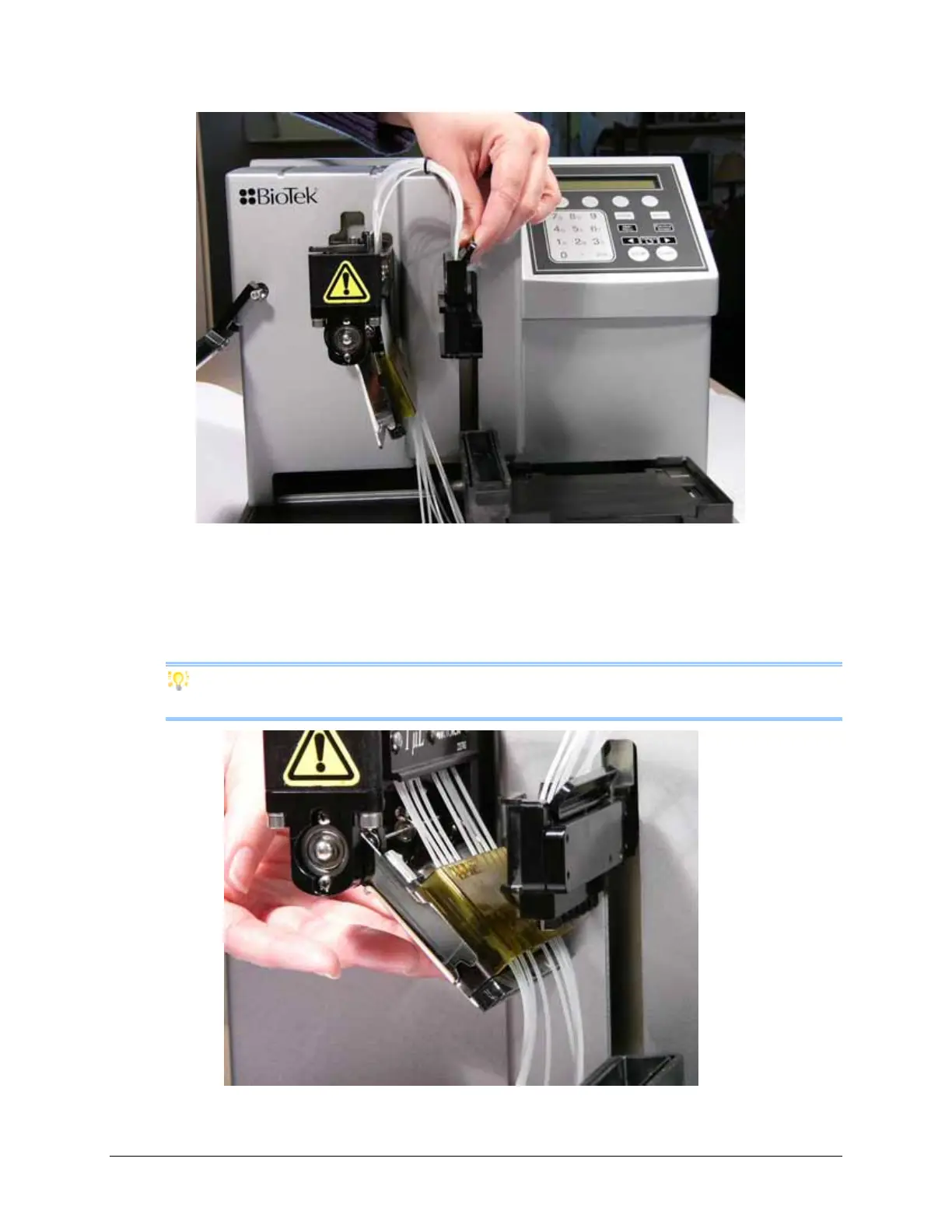

Figure 6: Slide the Tip Holder into the dispense arm.
3. Align the Tube Tensioner with the stainless steel plate as it wraps around and
up against the pump. Be sure the knobs on top of the tensioner fit correctly into
the grooves in the stainless steel plate as you move both parts and click them
into place.
When installing the cassettes, guide the steel plate first to the right to align with
the tensioner, then, push both pieces clockwise around the pump.
Figure 7: Align the Tube Tensioner with the steel plate.
